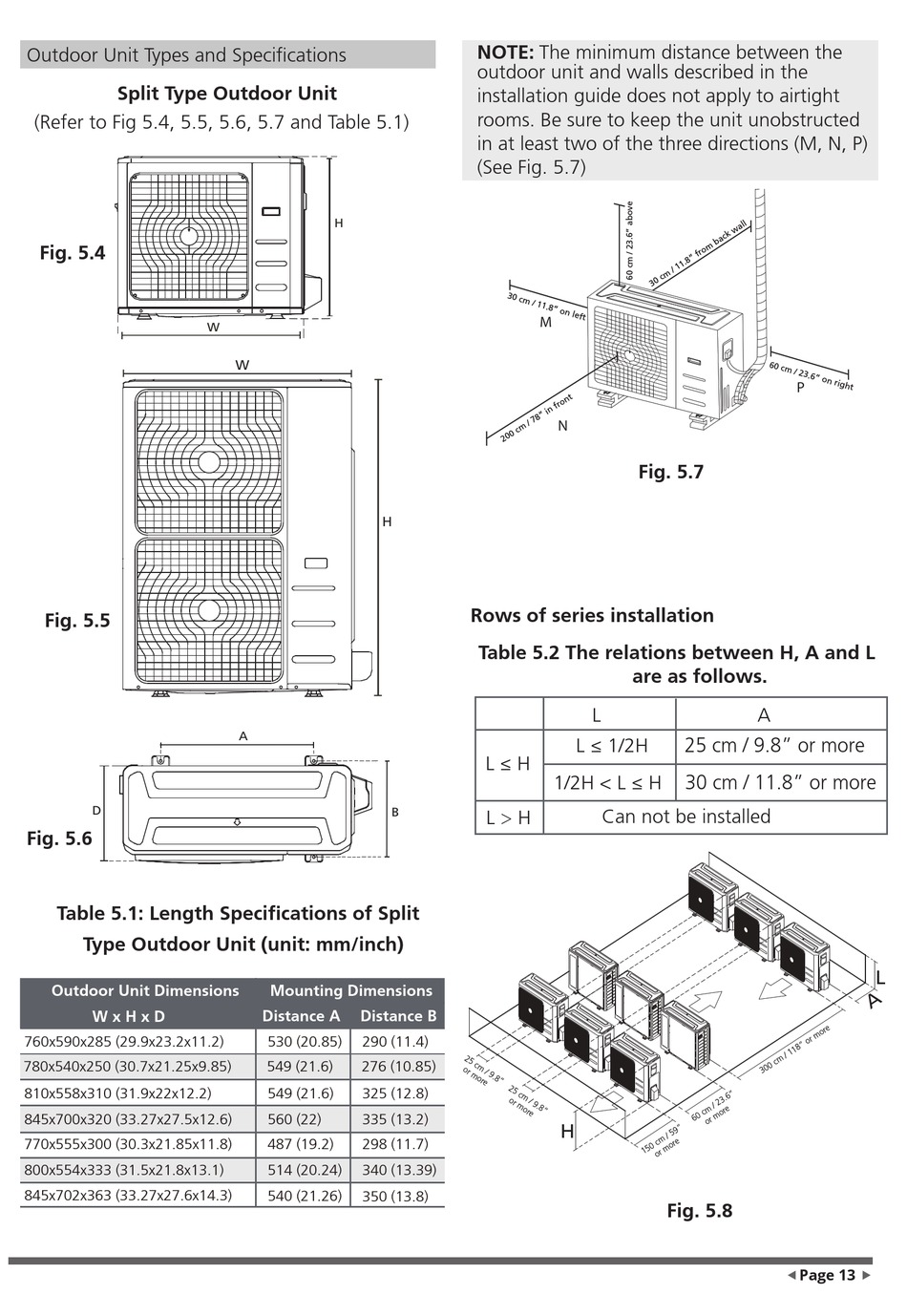

Outdoor Unit Types and Specifications
Split Type Outdoor Unit
(Refer to Fig 5.4, 5.5, 5.6, 5.7 and Table 5.1)
Fig. 5.4
Fig. 5.5
D
Fig. 5.6
Table 5.1: Length Speci cations of Split
Type Outdoor Unit (unit: mm/inch)
Outdoor Unit Dimensions
W x H x D
760x590x285 (29.9x23.2x11.2)
780x540x250 (30.7x21.25x9.85)
810x558x310 (31.9x22x12.2)
845x700x320 (33.27x27.5x12.6)
770x555x300 (30.3x21.85x11.8)
800x554x333 (31.5x21.8x13.1)
845x702x363 (33.27x27.6x14.3)
H
W
W
A
Mounting Dimensions
Distance A Distance B
530 (20.85) 290 (11.4)
549 (21.6) 276 (10.85)
549 (21.6) 325 (12.8)
560 (22) 335 (13.2)
487 (19.2) 298 (11.7)
514 (20.24) 340 (13.39)
540 (21.26) 350 (13.8)
NOTE: The minimum distance between the
outdoor unit and walls described in the
installation guide does not apply to airtight
rooms. Be sure to keep the unit unobstructed
in at least two of the three directions (M, N, P)
(See Fig. 5.7)
M
H
Rows of series installation
Table 5.2 The relations between H, A and L
L ≤ H
B
L > H
N
Fig. 5.7
are as follows.
L
L ≤ 1/2H 25 cm / 9.8" or more
30 cm / 11.8" or more
1/2H < L ≤ H
Can not be installed
H
Fig. 5.8
P
A
L
