• USER'S MANUAL
• ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ
• MANUAL UTILIZATORULUI

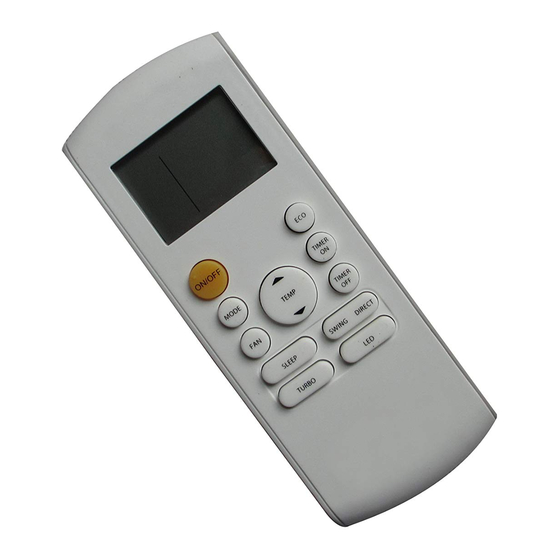

REMOTE CONTROLLER
MODELS:
V4MFI-24/ V4MFO-24 | V1MFI-50B/ V1MFO-50B
V1MFI-66B/ V1MFO-66B | V4MFI-66B/V4MFΟ-66B
V5MFI-66/ V6MFO-66
V4MCRI-12/U4MRS-12 | V4MCRI-18/U4MRS-18
V4MCI-24UR/U4MRS-24 | V4MCI-36UR/U4MRS-36
V4MCI-42/U4MRT-42 | V4MCI-50UR/U4MRT-50
V4MCI-60UR/U4MRT-60
V4MKI-18/U4MRS-18 | V4MKI-24UR/U4MRS-24
V4MKI-36UR/U4MRS-36 | V4MKI-42/U4MRT-42
V4MKI-50/U4MRT-50 | V4MKI-60/U4MRT-60
V4MLI-12/V4MLO-12 | V4MLI-18/V4MLO-18
V4MDI-12B/U4MRS-12B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V1MFI-66B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for INVENTOR V1MFI-66B

  • Page 1 REMOTE CONTROLLER • USER’S MANUAL • ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ • MANUAL UTILIZATORULUI MODELS: V4MFI-24/ V4MFO-24 | V1MFI-50B/ V1MFO-50B V1MFI-66B/ V1MFO-66B | V4MFI-66B/V4MFΟ-66B V5MFI-66/ V6MFO-66 V4MCRI-12/U4MRS-12 | V4MCRI-18/U4MRS-18 V4MCI-24UR/U4MRS-24 | V4MCI-36UR/U4MRS-36 V4MCI-42/U4MRT-42 | V4MCI-50UR/U4MRT-50 V4MCI-60UR/U4MRT-60 V4MKI-18/U4MRS-18 | V4MKI-24UR/U4MRS-24 V4MKI-36UR/U4MRS-36 | V4MKI-42/U4MRT-42 V4MKI-50/U4MRT-50 | V4MKI-60/U4MRT-60...
  • Page 2: Table Of Contents

    CONTENTS Remote controller Specifications........... Operation buttons ................Indicators on LCD ................How to use the buttons ..............Auto operation................. Cooling/Heating/Fan operation............Dehumidifying operation ............... Adjusting air flow direction............Timer operation................Handling the remote controller ............NOTE: Buttons design is based on typical model and might be slightly different from the actual one you purchased,the actual shape shall prevail.
  • Page 3: Remote Controller Specifications

    Remote Controller Specifications Model RG57B2/BGE 3.0V(Dry batteries R03/LR03×2) Rated Voltage Signal Receiving Range Environment -5 C~60 C ON/OFF SHORT TIMER MODE TEMP TIMER SLEEP TURBO...
  • Page 4: Operation Buttons

    Operation of buttons ON/OFF Button This button turns the air conditioner ON and OFF. MODE Button Press this button to modify the air conditioner mode in a sequence of following: HEAT AUTO COOL NOTE:Please do not select HEAT mode if the machine you purchased is cooling only type.
  • Page 5 Operation of buttons UP Button( Push this button to increase the indoor temperature setting in 1 C increments to 30 C. DOWN Button( Push this button to decrease the indoor temperature setting in 1 C increments to 17 C. NOTE:Temperature contol is not available in Fan mode.
  • Page 6 Operation of buttons Swing Button Used to stop or start vertical louver movement and set the desired left/right air flow direction. The vertical louver changes 6 degree in angle for each press. And the temperature display area of indoor unit displays for one second.
  • Page 7: Indicators On Lcd

    Indicators on LCD Information are displayed when Mode display the remote controller is powered AUTO COOL HEAT Displayed when data transmitted. Displayed when remote controller is ON. Battery display(low battery detection) Not available for this unit Displayed when TIMER ON time is set. Displayed when TIMER OFF time is set.
  • Page 8: How To Use The Buttons

    How to use the buttons Auto operation Ensure the unit is plugged in and power is available. The OPERATION indicator on the display panel of the indoor unit starts flashing. 1. Press the MODE button to select Auto. 2. Press the UP/DOWN button to set the desired temperature.
  • Page 9: Dehumidifying Operation

    How to use the buttons Dehumidifying operation Ensure the unit is plugged in and power is available. The OPERATION indicator on the display panel of the indoor unit starts flashing. 1. Press the MODE button to select DRY mode. 2. Press the UP/DOWN buttons to set the desired temperature.
  • Page 10: Timer Operation

    Timer operation Press the TIMER ON button can set the auto-on time of the unit. Press the TIMER OFF button can set the auto-off time of the unit. To set the Auto-on time. 1. Press the TIMER ON button. The remote controller shows TIMER ON, the last Auto-on setting time and the signal "H"...
  • Page 11 CAUTION When you select the timer operation, the remote controller automatically transmits the timer signal to the indoor unit for the specified time. Therefore, keep the remote controller in a location where it can transmit the signal to the indoor unit properly. The effective operation time set by the remote controller for the timer function is limited to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15,16,17, 18, 19, 20,...
  • Page 12 TIMER OFF (Auto-off Operation) The TIMER OFF feature is useful when you want the unit to turn off automatically after you go to bed. The air conditioner will stop automatically at the set time. Example: Stop To stop the air conditioner in 10 hours. 1.
  • Page 13 TIMER ON → TIMER OFF (Off → Start → Stop operation) This feature is useful when you want to start the air conditioner before you wake up and stop it after you leave the house. Example: Start To start the air conditioner 2 hours after setting, Stop and stop it 5 hours after setting.
  • Page 14: Handling The Remote Controller

    Handling the remote controller Location of the remote controller. Use the remote controller within a distance of 8 meters from the appliance, pointing it towards the receiver. Reception is confirmed by a beep. CAUTIONS The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the indoor unit.
  • Page 15 Replacing batteries The following cases signify exhausted batteries. Replace old batteries with new ones. Receiving beep is not emitted when a signal is transmitted. Indicator fades away. The remote controller is powered by two dry batteries (R03/LR03X2) housed in the back rear part and protected by a cover.
  • Page 16 ΠΕΡΙΕΧΟΜΕΝΑ Χαρακτηριστικά του Ασύρματου Τηλεχειριστηρίου ......Λειτουργίες Πλήκτρων ............... Ενδείξεις στην LCD Οθόνη ..............Χρήση των πλήκτρων ................ Αυτόματη Λειτουργία ................. Λειτουργίες Ψύξης/Θέρμανσης/Ανεμιστήρα ........Λειτουργία Αφύγρανσης ..............Προσαρμογή της κατεύθυνσης του αέρα........... Λειτουργία Timer ................Χειρισμός του Ασύρματου Τηλεχειριστηρίου ........Σημείωση: Ο...
  • Page 17 Χαρακτηριστικά Ασύρματου Τηλεχειριστηρίου Μοντέλο RG57B2/BGE 3.0V (Μπαταρίες στεγνού τύπου R03/LR03 2) Ονομαστική Τάση Εμβέλεια Σήματος Λήψης Εύρος Θερμοκρασίας • -5 C 60C περιβάλλοντος SHORT TIMER TIMER...
  • Page 18: Λειτουργίες Πλήκτρων

    Λειτουργίες Πλήκτρων Πλήκτρο ON/OFF Με αυτό το πλήκτρο γίνεται η εκκίνηση και η διακοπή της λειτουργίας της κλιματιστικής μονάδας. Πλήκτρο MODE Με αυτό το πλήκρο ρυθμίζετε την λειτουργία της κλιματιστικής μονάδας όπως παρακάτω: COOL AUTO HEAT (Αφύγρανση) (Ψύξη) (Αυτόματο) (Θέρμανση) (Ανεμιστήρας) Σημείωση: Η...
  • Page 19 Λειτουργίες Πλήκτρων Πλήκτρο ( Πιέστε αυτό το πλήκτρο για να αυξήσετε την εσωτερική ρύθμιση της θερμοκρασίας σε βήματα 1°C έως 30 °C. Πλήκτρο ( Πιέστε αυτό το πλήκτρο για να μειώσετε την εσωτερική ρύθμιση της θερμοκρασίας σε βήματα 1°C έως 17°C. ΣΗΜΕΙΩΣΗ: Η...
  • Page 20 Πλήκτρο Swing Λειτουργίες Πλήκτρων Χρησιμοποιείται για τη διακοπή ή την εκκίνηση της κάθετης περσίδας ή για τη ρύθμιση της επιθυμητής αριστερής/δεξιάς διάχυση του αέρα. Η κάθετη περσίδα αλλάζει 6 μοίρες σε κάθε πάτημα του κουμπιού. Και η ένδειξη θερμοκρα- σίας εσωτερικής μονάδας εμφανίζεται ” “...
  • Page 21: Ενδείξεις Στην Lcd Οθόνη

    Ενδείξεις στην LCD οθόνη Οι ενδείξεις εμφανίζονται όταν το Ενδείξεις λειτουργιών τηλεχειριστήριο είναι ενεργοποιημένο. Ένδειξη μετάδοσης εντολών Εμφανίζεται όταν το τηλεχειριστήριο είναι ενεργοποιημένο Ένδειξη μπαταρίας (ανίχνευση χαμηλής μπαταρίας) Δεν είναι διαθέσιμο σε αυτή τη μονάδα Εμφανίζεται όταν το TIMER ON έχει ρυθμιστεί Εμφανίζεται...
  • Page 22: Χρήση Των Πλήκτρων

    Χρήση των πλήκτρων Αυτόματη λειτουργία Βεβαιωθείτε πως η κλιματιστική μονάδα είναι συνδεδεμένη με την παροχή ρεύματος. Η ενδεικτική λυχνία OPERATION (λειτουργία) στην οθόνη της εσωτερικής μονάδας είναι αναμμένη. 1. Πιέστε το πλήκτρο MODE και επιλέξτε Auto. 2. Πιέστε το πλήκτρο UP/DOWN για να ορίσετε την επιθυμητή...
  • Page 23: Λειτουργία Αφύγρανσης

    Χρήση των πλήκτρων Λειτουργία Αφύγρανσης Βεβαιωθείτε πως η κλιματιστική μονάδα είναι συνδεδεμένη με την παροχή ρεύματος . Η ενδεικτική λυχνία OPERATION (λειτουργίας) στην οθόνη της εσωτερικής μονάδας θα είναι αναμμένη. 1. Πιέστε το πλήκτρο MODE για να επιλέξετε την λειτουργία DRY. 2.
  • Page 24: Λειτουργία Timer

    Λειτουργία TIMER Με το πλήκτρο TIMER ON μπορείτε να ρυθμίσετε την αυτόματη ενεργοποίηση της μονάδας και με το πλήκτρο TIMER OFF την αυτόματη απενεργοποίηση της μονάδας. Ρύθμιση της ώρας της αυτόματης ενεργοποίησης της μονάδας. 1. Πιέστε το πλήκτρο TIMER ON. Στην οθόνη του ασύρματου...
  • Page 25 ΠΡΟΣΟΧΗ Οταν επιλέξετε την λειτουργία TIMER, το τηλεχειριστήριο μεταδίδει αυτόματα το σήμα χρονδιακόπτη στην εσωτερική μονάδας για το καθορισμένο χρόνο. Ως εκ τούτου το τηλεχειριστήριο θα πρέπει να βρίσκεται σε θέση όπου μπορεί να μεταδίδει το σήμα στην εσωτερική μονάδα σωστά. Οι...
  • Page 26 TIMER OFF (Αυτόματη απενεργοποίηση της μονάδας) Η λειτουργία TIMER OFF είναι χρήσιμη όταν θέλετε να απενεργοποιηθεί η μονάδα όταν πέσετε για ύπνο. Η κλιματιστική μονάδα θα απενεργοποιηθεί αυτόματα την ώρα που έχει επιλεγεί. Τερματισμός λειτουργίας Παράδειγμα: Διακοπή λειτουργίας της κλιματιστικής μονάδας Εκκίνηση...
  • Page 27 Εκκίνηση λειτουργίας -> Διακοπή λειτουργίας Αυτή η λειτουργία είναι χρήσιμη όταν θέλετε η κλιματιστική μονάδα να ενεργοποιηθεί πριν ξυπνήσετε και να διακόψει τη λειτουργία της όταν φύγετε από το σπίτι. Παράδειγμα: Ενεργοποίηση της κλιματιστικής μονάδας 2 ώρες Εκκίνηση μετά τη ρύθμιση και διακοπή λειτουργίας 5 ώρες Τερματισμός...
  • Page 28: Χειρισμός Του Ασύρματου Τηλεχειριστηρίου

    Χειρισμός του Ασύρματου Τηλεχειριστηρίου Θέση του Ασύρματου Τηλεχειριστηρίου Να χρησιμοποιείτε το ασύρματο τηλεχειριστήριο εντός 8m από την κλιματιστική μονάδα στοχεύοντας στον δέκτη σήματος. Η αποδοχή της εντολής συνοδεύεται από ένα ήχο. ΠΡΟΣΟΧΗ Η κλιματιστική μονάδα δεν θα λειτουργεί αν εμποδίζονται οι εντολές του ασύρματου τηλεχειριστηρίου...
  • Page 29 Αντικατάσταση μπαταριών Αντικαταστήστε τις μπαταρίες όταν δεν ακούτε τον αντίστοιχο ήχο από την εσωτερική μονάδα ή όταν η ένδειξη εντολής στο ασύρματο τηλεχειριστήριο δεν ανάβει. Το ασύρματο τηλεχειριστήριο χρειάζεται 2 ξηρού τύπου μπαταρίες(R03/LR03X2) που βρίσκονται στην πίσω πλευρά του. (1) Αφαιρέστε το κάλυμα. (2) Αφαιρέστε...
  • Page 30 CUPRINS Specificatiile telecomenzii ..............Tastele de functionare ............... Indicatiile afisajului ................Cum sa folosim tastele ................ Functionarea Auto ................Racire / Incalzire / Ventilare ..............Functia de dezumidificare ..............Functia de programare ................ Fixarea de perete a telecomanzii ............NOTA: Design-ul tastelor se bazează...
  • Page 31: Specificatiile Telecomenzii

    Specificatiile Telecomenzii RG57B2/BGE Model Tensiune nominală 3.0V(Dry batteries R03/LR03 2) Interval primire semnal • Temperatura ambientala -5 C 60C SHORT TIMER TIMER...
  • Page 32 Functiile tastelor Tasta PORNIT/OPRIT Aceasta tasta porneste sau opreste aparatul de aer conditionat. Apasati aceasta tasta pentru a modifica modul de functionare al aparatului dupa cum urmeaza: DEZUMIDIFICARE AUTO RACIRE INCALZIRE VENTILARE NOTĂ: Vă rugăm să nu selectați modul INCALZIRE dacă aparatul achiziționat are doar functie de racire.
  • Page 33 Functiile tastelor Tasta SUS ( Apăsați aceasta tasta pentru a regla crescator temperatura interioara in trepte de 1°C, pana la 30°C. Tasta JOS ( Apăsați aceasta tasta pentru a regla descrescator temperatura in trepte de 1°C, pana la 17°C. NOTA: Controlul temperaturii nu este disponibil in Modul Ventilare Tasta SHORTCUT Se foloseste pentru a repune in functiune setarile...
  • Page 34 Functiile tastelor Tasta de reglare a flapsurilor stanga dreapta Se folosește pentru a porni sau opri mișcarea verticală a flapsurilor și pentru a regla direcția aerului stânga/dreapta. Unghiul vertical al flapsurilor se schimbă cu 6 grade la fiecare apăsare și pe afișajul unității în locul temperaturii este afișat "...
  • Page 35 Indicatori pe afisaj Indicatorii sunt afisati cand telecomanda Mod afisaj este activata. AUTO RACIRE DEZUMIDIFICARE INCALZIRE VENTILARE Se afiseaza cand se trimite semnalul. Se afiseaza cand telecomanda este pornita Afisaj baterie (detectare baterie descarcata) Nu este disponibil pentru acest aparat Se afiseaza cand Pornirea Programata este activata.
  • Page 36: Cum Sa Folosim Tastele

    Cum sa folositi tastele Functionare auto Asigurați-vă că aparatul este conectat și alimentat cu energie electrica. Indicatorul de funcționare de pe panoul de afișaj al unității interioare începe să clipească. 1. Apăsați butonul MODE pentru a selecta Auto. 2. Apăsați butonul sus / jos pentru a seta temperatura dorită.
  • Page 37 Cum sa folositi tastele Functionarea in Dezumidificare Asigurați-vă că aparatul este conectat și alimentat cu energie electrica. Indicatorul de funcționare de pe panoul de afișaj al unității interioare începe să clipească. 1. Apăsați butonul MODE pentru a selecta modul DEZUMIDIFICARE. 2.
  • Page 38: Functia De Programare

    Functia de Programare Apăsați tasta TIMER ON si aceasta poate seta programarea auto in timp a unității. Apăsați butonul TIMER OFF si aceasta poate seta oprirea programarea a unității. Setare pornirii programate 1. Apăsați tasta TIMER ON. Telecomanda va afisa TIMER ON, si ultima programare Auto și semnalul "H"...
  • Page 39 ATENȚIE Când selectați operațiunea timer, telecomanda transmite automat semnalul de programare la unitatea interioară pentru timpul specificat. Prin urmare, plasati telecomanda într-un loc în care sa poata sa transmita semnalul la unitatea interioară in mod corect. Timpul efectiv de funcționare stabilit de telecomanda pentru funcția de programare este limitat la următoarele setări: 0,5, 1,0, 1,5, 2,0, 2,5, 3,0, 3,5, 4,0, 4,5, 5,0, 5,5, 6,0, 6,5, 7,0, 7,5, 8,0, 8,5, 9,0, 9,5, 10, 11, 12, 13, 14, 15,16,17, 18, 19, 20, 21, 22, 23 și Exemplu de programre...
  • Page 40 OPRIRE PROGRAMATA (Oprire Auto) Functia TIMER OFF este utilă atunci când doriți ca aparatul să pornească automat, dupa ce va culcati. Aparatul de aer conditionat se va opri automat la ora setată. Exemplu: Oprit Pentru a opri aparatul de aer conditionat in 10 ore. 1.
  • Page 41 PORNIRE OPRIRE PROGRAMATA PROGRAMATA (Oprit Pornire Oprire functionare) Această caracteristică este utilă atunci când doriți să porniti aparatul de aer conditionat, înainte de a vă trezi și sa se opreasca după ce ieșiti din casă. Pornire Oprit Exemplu: Oprit Pentru a porni aparatul de aer conditionat la 2 ore după setare, și sa se opreasca la 5 ore după...
  • Page 42 Manevrarea telecomenzii Pozitionarea telecomenzii Folositi telecomanda de la o distanta maxima de 8m fata de unitatea interioara a aparatului de aer conditionat, indreptand-o spre aceasta. Receptionarea semnalului este confirmata de un beep sonor. ATENȚIE Instalația de aer condiționat nu va funcționa dacă sunt perdele, uși sau alte materiale care blocheaza semnalul de la telecomandă...
  • Page 43 Inlocuirea bateriilor Următoarele simptome indica baterii consumate. Înlocuiți bateriile vechi cu unele noi. Nu este emis un semnal sonor atunci când un semnal este transmis catre unitatea interioara. Afisajul de pe telecomanda dispare. Telecomanda este alimentata de două baterii (R03 / LR03X2) asezate în partea din spate a telecomenzii și protejate de un capac.
  • Page 44 REMOTE CONTROLLER...
