7. Connection Diagram

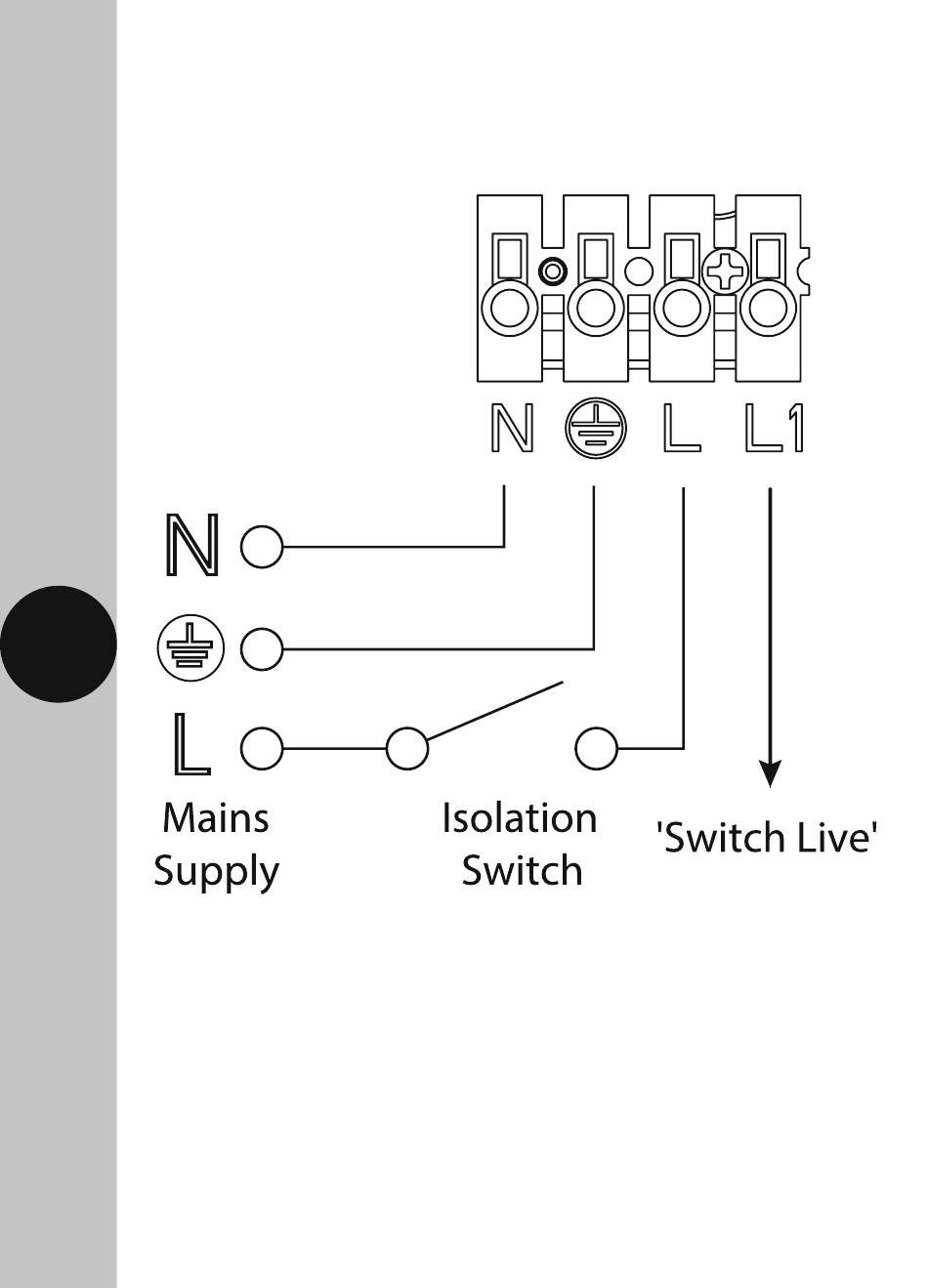

• Connect the cables to the terminal block as follows;
8
• Note: The Switch Live terminal is for additional
standalone floodlights (see section 3. Technical
Specifications for maximum switchable loads).
Any floodlight connected to the L1 switch live
terminal 'Live Output' will be controlled by the PIR
