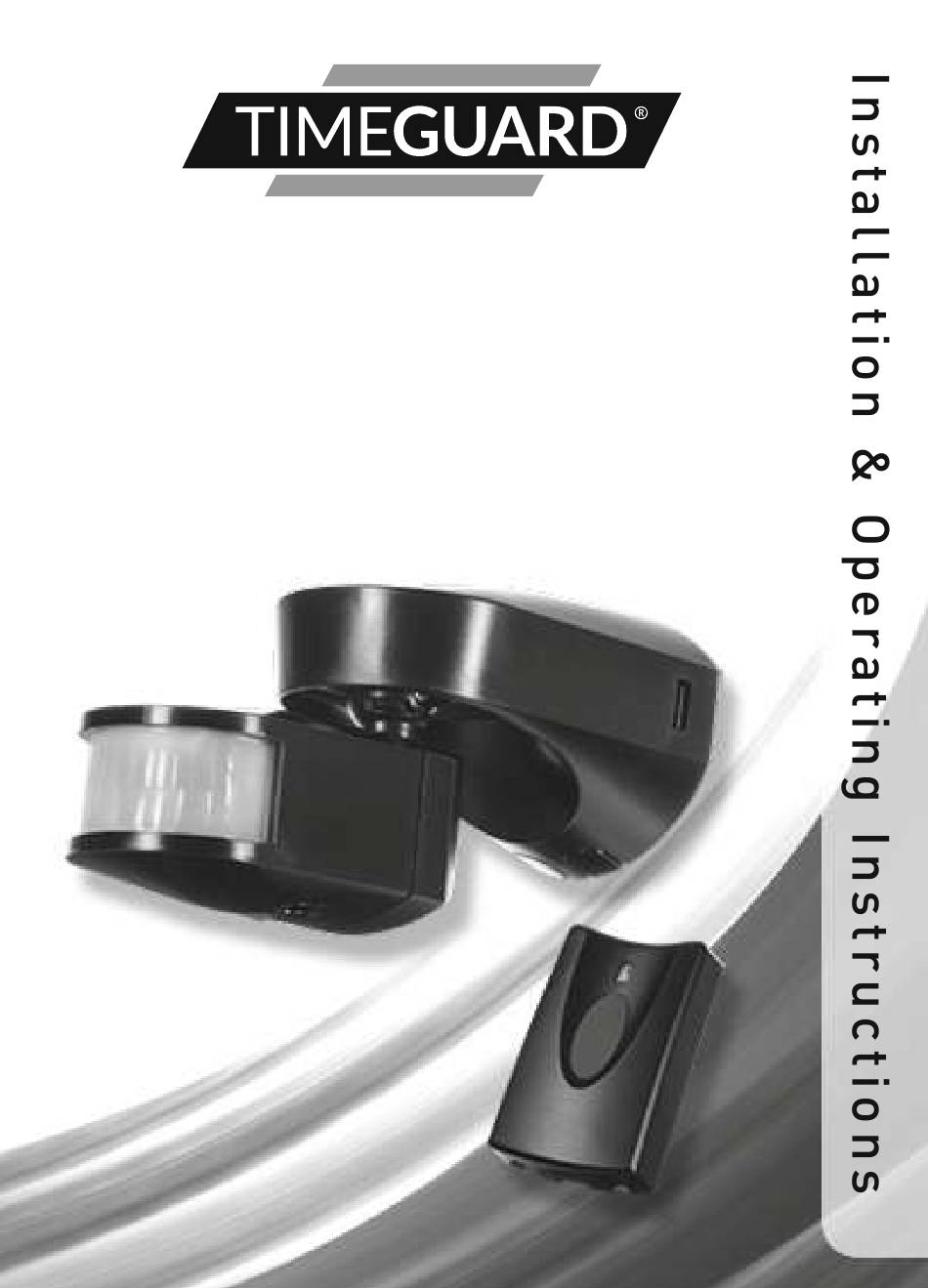

- Page 1 2300W PIR Light Controller c/w RF Control Model: SLB2300RF – Black Model: SLW2300RF – White Model: LEDPROFOB RF Remote Fob...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the PIR sensor is switched off and the circuit supply fuses are removed or the circuit breaker turned off. - Page 3 • Back plate Mounting Centres: 51mm • Maximum Switching Load; 2300W Halogen lighting 500W Fluorescent tube w/o PF correction 250W LED lighting (PF > 0.9) 200W CFL Lighting • Time ON Adjustment: 3 seconds to 18 minutes • Warm Up Period: Approximately 35 seconds •...
-
Page 4: Pack Contents
RF Remote Fob • Battery: 3V (1x CR2032) • Battery Life: Approximately 24 months (@ 10x opt/day) • Class Rating: Class III • Transmission and Receiving Distance: 100m hand held (clear line of sight) 10m when mounted inside a wall switch (recommended mounting height = 1.2m) •... -
Page 5: Selecting A Location
5. Selecting a Location • The light controller has number of detection zones, at various vertical and horizontal angles as shown (see diagram A). • A moving human body needs to cross/enter one of these zones to activate the light controller. The best all-round coverage is achieved with the unit mounted at the optimum height of 2.5 metres. -
Page 6: Installation
• During extreme weather conditions the motion light controller may exhibit unusual behaviour. This does not indicate a fault with the light controller. Once normal weather conditions return, the light controller will resume normal operation. 6. Installation 6.1 Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker turned off. - Page 7 6.3 Remove the back plate from the PIR light controller. 6.4 Mark the position of the mounting holes on the wall using the back box as a template. 6.5 Drill the holes ensuring not to infringe with any gas/water pipes or electrical cables that may be hidden below the surface.
- Page 8 6.7 Fix the back plate to the wall. Take care not to overtighten the screws to prevent damage to the back plate. If using a power screwdriver, use the lowest torque setting. 6.8 Terminate the cables into the terminal block ensuring correct polarity is observed and that all bare conductors are sleeved (See section 6.
-
Page 9: Connection Diagram
7. Connection Diagram • Connect the cables to the terminal block as follows; LOOP TERMINAL 230V AC 50Hz MAINS SUPPLY LOAD ISOLATION SWITCH 230V 50Hz Mains Supply Live Supply (Brown or Red) to Neutral Supply (Blue or Black) to A ‘Loop Terminal’ (centre terminal) is provided should a 3 core cable be used Load Switch Live (Brown or Red) to... - Page 10 8. Setting Up Walk Test Procedure (Test Mode) • The sensor will rotate from left to right, and will tilt downwards. Adjust the light controller to point in the required direction and angle down to limit forward range as required. •...
- Page 11 • The lamp will illuminate for approximately 35 seconds. This indicates the unit is wired correctly. The unit is in Test Mode when the light turns OFF. • If the detection area is too small for you requirements, try angling the PIR light controller head up.
- Page 12 • Set the light threshold to maximum (fully clockwise/ Sun end), then turn the control anti-clockwise about three quarters of the way round to the Moon end. This will give operation after DUSK approximately. • For a more accurate setting of the DUSK LEVEL ADJUST control turn it fully anti-clockwise (Moon end) and leave for at least 20 seconds for the unit to settle.
- Page 13 • The top section of the lens covers long range detection, the bottom covers short range. Similarly the left and right lens sections cover the left and right detection area respectively. • Mask the PIR Light controllers lens to suit your installation.
- Page 14 10.2 The terminals are now accessible. If adding lighting, ensure the unit’s maximum switching load rating is not exceeded (see section 3. Technical Specifications). 10.3 Re-attach the PIR light controller to the back plate pushing firmly into place. 11. RF Remote Fob Battery •...
- Page 15 Note: once the lamp has flashed twice, the PIR sensor will no longer trigger the lamp with motion until the pairing sequence has been completed. • Press the fob button once. The lamp will turn ON for 3 seconds, and back OFF again, to indicate it has been registered.
- Page 16 Erase all RF Remote Fobs from the PIR Light Controller • Press and hold the centre button, located on the bottom of the PIR light controller, for approximately 5 seconds. The lamp will flash 5 times. This indicates that un-pairing has been successful. Installing a RF Remote Fob into a Wall Switch •...
-
Page 17: Troubleshooting Guide
• Follow the wall switch wiring image for connection. Dry Contact w/o 230V AC Potential 12. Troubleshooting Guide PROBLEM SOLUTION • Lamp stays Check wiring connections. ON all the time Wires to L and L’ terminals may night and day. be transposed. - Page 18 You may not be allowing the unit time to complete its warm-up period. Stand well out of the detection range and wait (the warm- up period should never exceed 5 minutes). Occasionally, winds may activate the sensor. Sometimes passages between buildings etc.
-
Page 19: Year Guarantee
020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a... - Page 20 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
