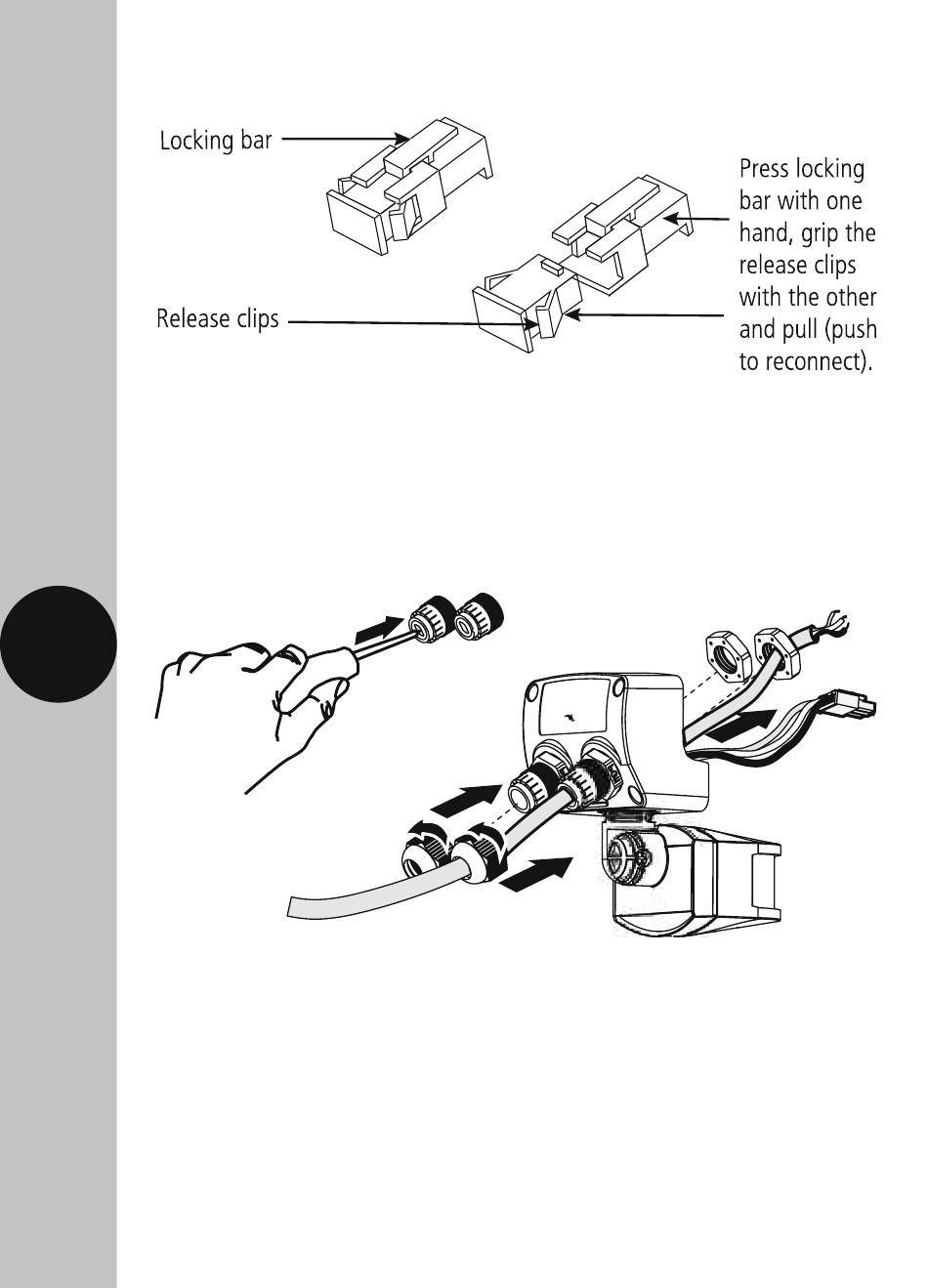

6.3 Remove the jumper plug from the floodlight.
6.4 Pass the 230V 50Hz mains supply and load
6
6.5 Terminate the cables into the terminal block
6.6 Ensure that all connections are secure.
cables the holes provided on the PIR ensuring
that a cable gland, grommet or sealing
compound is used to maintain the IP rating.
ensuring correct polarity is observed and that
all bare conductors are sleeved (See section 7.
Connection Diagram).
