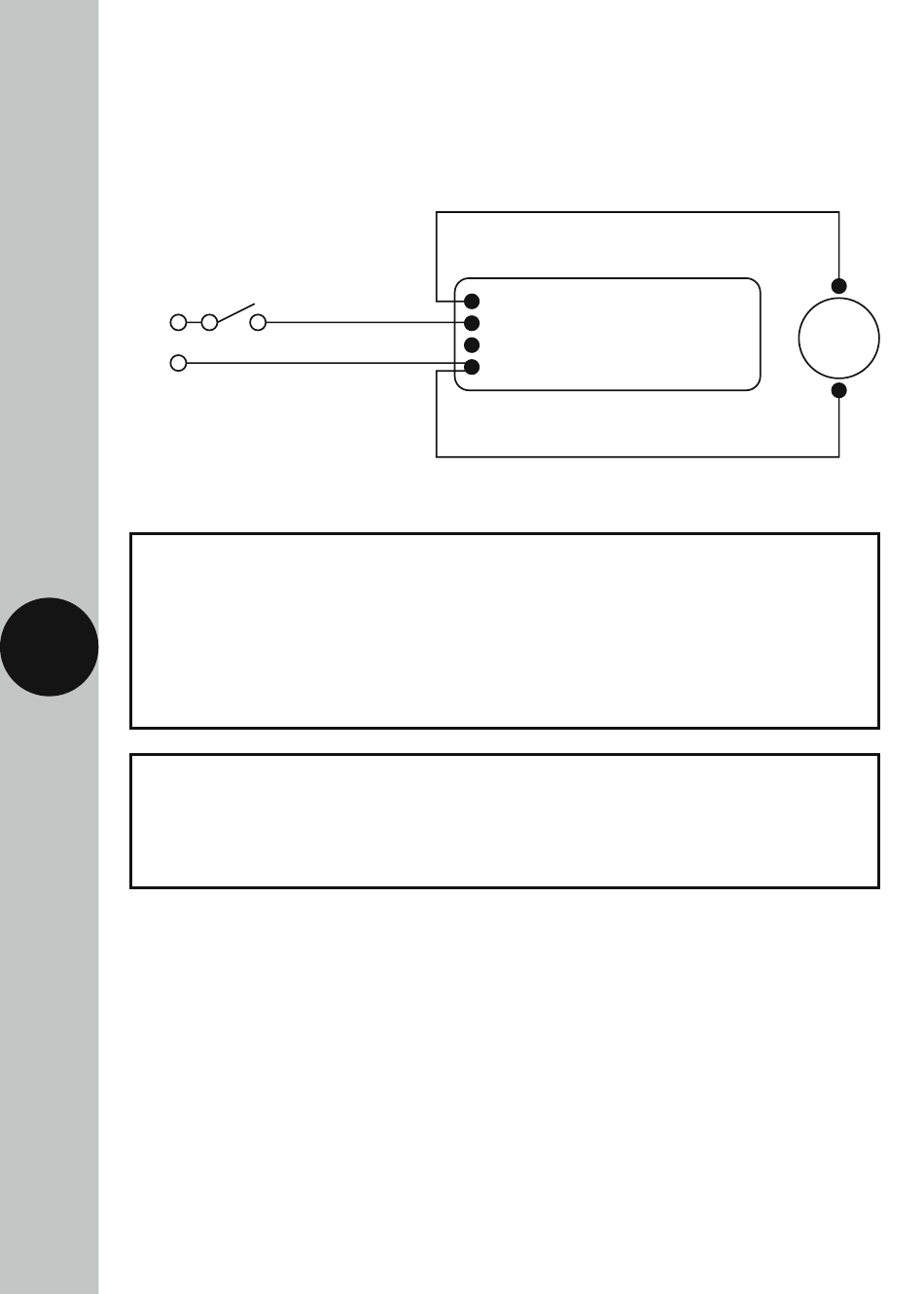

6 Connection Diagram

• Connect the 230V 50Hz mains supply cables to the terminal block
in the power box as follows;
ISOLATION
SWITCH
L
N
230V 50Hz
MAINS SUPPLY
230V 50Hz Mains Supply
Live Supply (Brown or Red) to
6
Neutral Supply (Blue or Black) to
A 'Loop Terminal' (centre terminal) is provided should a 3 core
cable be used
Load
Switched Live (Brown or Red) to
Neutral Load (Blue or Black) to
PDFMMINIL Power Box
L1
L
Loop Terminal
N
L
N
L1
N
LAMP
