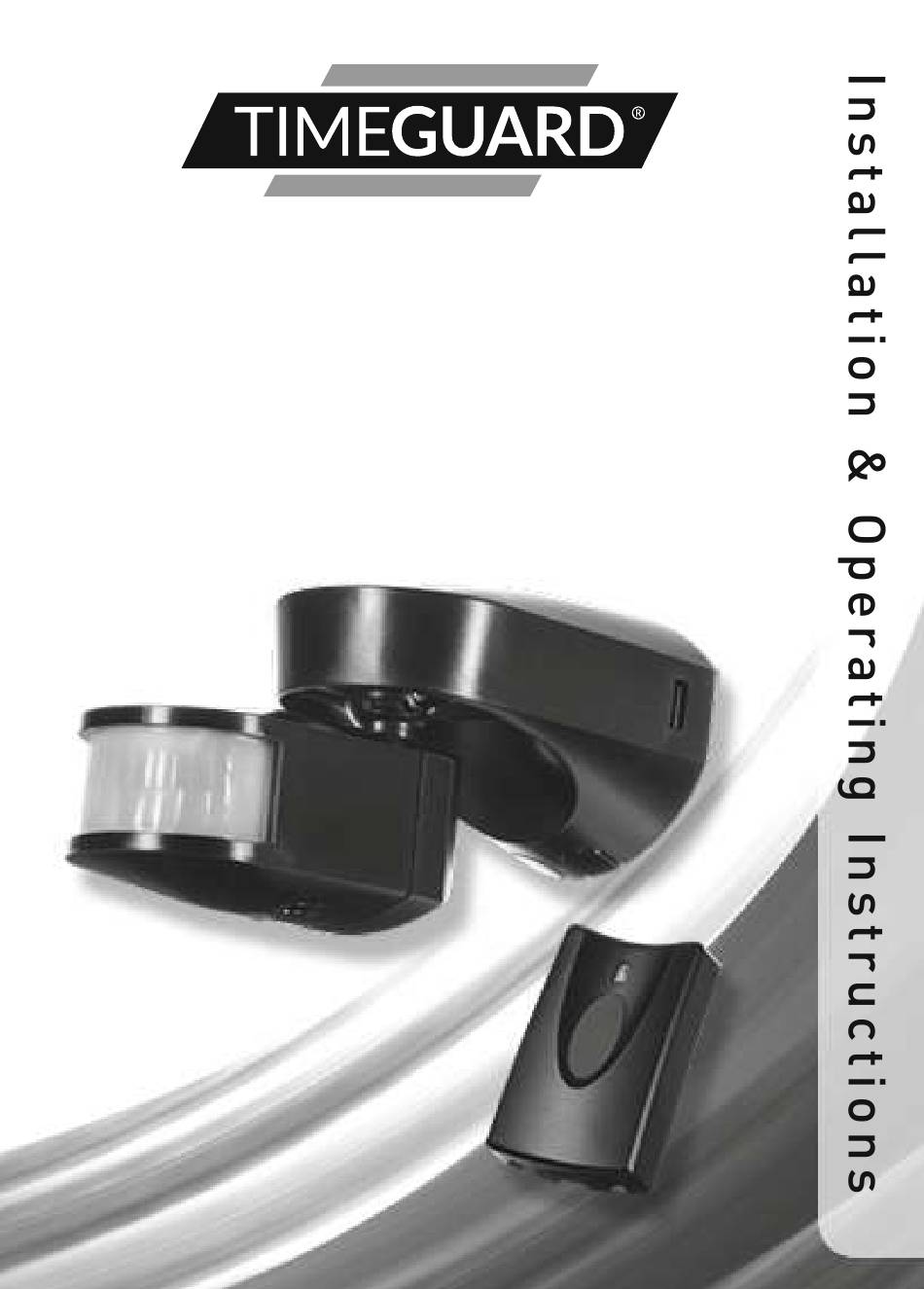

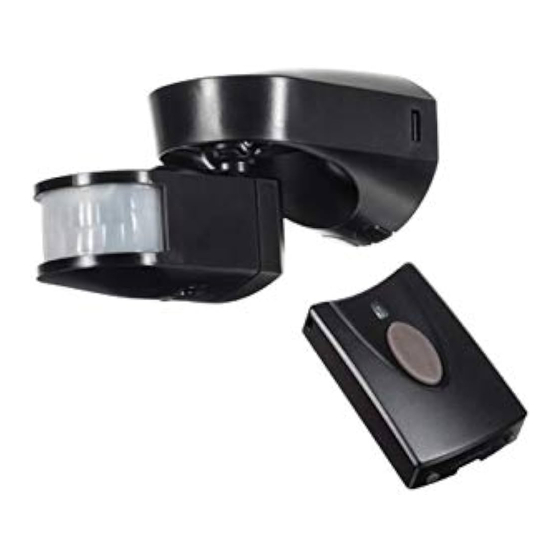

2300W PIR Light Controller
c/w RF Control
Model: SLB2300RF – Black
Model: SLW2300RF – White
Model: LEDPROFOB RF Remote Fob

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLB2300RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Timeguard SLB2300RF

  • Page 1 All manuals and user guides at all-guides.com 2300W PIR Light Controller c/w RF Control Model: SLB2300RF – Black Model: SLW2300RF – White Model: LEDPROFOB RF Remote Fob...
  • Page 2: General Information

    1. General Information All manuals and user guides at all-guides.com These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the PIR sensor is switched off and the circuit supply fuses are removed or the circuit breaker turned off.
  • Page 3 • Back plate Mounting Centres: 51mm All manuals and user guides at all-guides.com • Maximum Switching Load; 2300W Halogen lighting 500W Fluorescent tube w/o PF correction 250W LED lighting (PF > 0.9) 200W CFL Lighting • Time ON Adjustment: 3 seconds to 18 minutes •...
  • Page 4: Pack Contents

    RF Remote Fob All manuals and user guides at all-guides.com • Battery: 3V (1x CR2032) • Battery Life: Approximately 24 months (@ 10x opt/day) • Class Rating: Class III • Transmission and Receiving Distance: 100m hand held (clear line of sight) 10m when mounted inside a wall switch (recommended mounting height = 1.2m) •...
  • Page 5: Selecting A Location

    5. Selecting a Location All manuals and user guides at all-guides.com • The light controller has number of detection zones, at various vertical and horizontal angles as shown (see diagram A). • A moving human body needs to cross/enter one of these zones to activate the light controller.
  • Page 6: Installation

    • During extreme weather conditions the motion All manuals and user guides at all-guides.com light controller may exhibit unusual behaviour. This does not indicate a fault with the light controller. Once normal weather conditions return, the light controller will resume normal operation. 6.
  • Page 7 6.3 Remove the back plate from the PIR light controller. All manuals and user guides at all-guides.com 6.4 Mark the position of the mounting holes on the wall using the back box as a template. 6.5 Drill the holes ensuring not to infringe with any gas/water pipes or electrical cables that may be hidden below the surface.
  • Page 8 All manuals and user guides at all-guides.com 6.7 Fix the back plate to the wall. Take care not to overtighten the screws to prevent damage to the back plate. If using a power screwdriver, use the lowest torque setting. 6.8 Terminate the cables into the terminal block ensuring correct polarity is observed and that all bare conductors are sleeved (See section 6.
  • Page 9: Connection Diagram

    7. Connection Diagram All manuals and user guides at all-guides.com • Connect the cables to the terminal block as follows; LOOP TERMINAL 230V AC 50Hz MAINS SUPPLY LOAD ISOLATION SWITCH 230V 50Hz Mains Supply Live Supply (Brown or Red) to Neutral Supply (Blue or Black) to A ‘Loop Terminal’...
  • Page 10 8. Setting Up All manuals and user guides at all-guides.com Walk Test Procedure (Test Mode) • The sensor will rotate from left to right, and will tilt downwards. Adjust the light controller to point in the required direction and angle down to limit forward range as required.
  • Page 11 • The lamp will illuminate for approximately 35 All manuals and user guides at all-guides.com seconds. This indicates the unit is wired correctly. The unit is in Test Mode when the light turns OFF. • If the detection area is too small for you requirements, try angling the PIR light controller head up.
  • Page 12 • Set the light threshold to maximum (fully clockwise/ All manuals and user guides at all-guides.com Sun end), then turn the control anti-clockwise about three quarters of the way round to the Moon end. This will give operation after DUSK approximately.
  • Page 13 • The top section of the lens covers long range All manuals and user guides at all-guides.com detection, the bottom covers short range. Similarly the left and right lens sections cover the left and right detection area respectively. • Mask the PIR Light controllers lens to suit your installation.
  • Page 14 10.2 The terminals are now accessible. If adding All manuals and user guides at all-guides.com lighting, ensure the unit’s maximum switching load rating is not exceeded (see section 3. Technical Specifications). 10.3 Re-attach the PIR light controller to the back plate pushing firmly into place.
  • Page 15 Note: once the lamp has flashed twice, the PIR All manuals and user guides at all-guides.com sensor will no longer trigger the lamp with motion until the pairing sequence has been completed. • Press the fob button once. The lamp will turn ON for 3 seconds, and back OFF again, to indicate it has been registered.
  • Page 16 Erase all RF Remote Fobs from the PIR All manuals and user guides at all-guides.com Light Controller • Press and hold the centre button, located on the bottom of the PIR light controller, for approximately 5 seconds. The lamp will flash 5 times. This indicates that un-pairing has been successful.
  • Page 17: Troubleshooting Guide

    • Follow the wall All manuals and user guides at all-guides.com switch wiring image for connection. Dry Contact w/o 230V AC Potential 12. Troubleshooting Guide PROBLEM SOLUTION • Lamp stays Check wiring connections. ON all the time Wires to L and L’ terminals may night and day.
  • Page 18 You may not be allowing the unit time to All manuals and user guides at all-guides.com complete its warm-up period. Stand well out of the detection range and wait (the warm- up period should never exceed 5 minutes). Occasionally, winds may activate the sensor. Sometimes passages between buildings etc.
  • Page 19: Year Guarantee

    020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a...
  • Page 20 If you experience problems, do not immediately All manuals and user guides at all-guides.com return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
