For Models
Communication
Viking E-10 Doorbox uses "half-duplex"
communication, allowing for high speaker and
Microphone Volume, without the possibility of
feedback. Using Viking "PAN-1" adapter, E-10
plugs directly into doorphone card of Panasonic
KSU.
Intercom to PAN-1 (Not polarity senitive)
Not Used
12 VDC input (for camera and keypad)
Normal Serial
Inverted Serial
Ground
Bit Parity Mode
Connect tamper switch to alarm (optional)
Manual Type 6.5.0.4-RF
Viking E-10 with PAN-1
with Essex "ASCII" Keypad
400-A-VIK(PAN1) 401-A-VIK(PAN1)
403-A-VIK(PAN1) 404-A-VIK(PAN1)
410-A-VIK(PAN1) 411-A-VIK(PAN1)
Specifications
Access Control
Essex K1-26I Keypad field configurable to ASCII,
Wiegand and others.

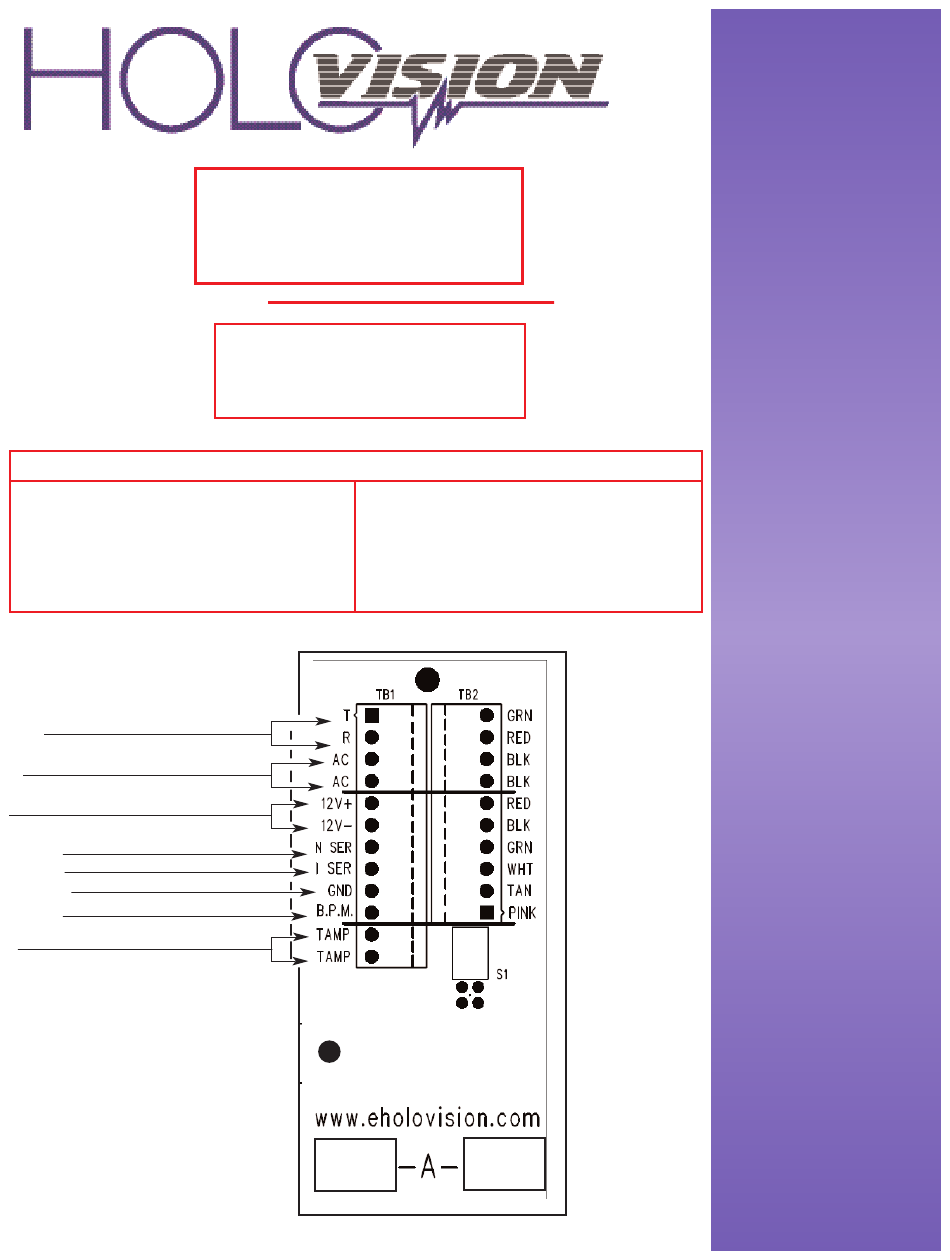

400 Series ''A'' Junction Board
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Table of Contents
Related Manuals for HOLOVISION 400-A-VIK
Summary of Contents for HOLOVISION 400-A-VIK
- Page 1 INSTALLATION INSTRUCTIONS Manual Type 6.5.0.4-RF Viking E-10 with PAN-1 with Essex “ASCII” Keypad For Models 400-A-VIK(PAN1) 401-A-VIK(PAN1) 403-A-VIK(PAN1) 404-A-VIK(PAN1) 410-A-VIK(PAN1) 411-A-VIK(PAN1) Specifications Communication Access Control Viking E-10 Doorbox uses “half-duplex” Essex K1-26I Keypad field configurable to ASCII, communication, allowing for high speaker and Wiegand and others.
- Page 2 ASCII Connection to Crestron or HAI 400 The red LED is normally on all of the Automation System Relays time. When a valid code is entered, the relay controlling the LEDs would close, (Typical of Crestron or HAI) and the green light would go on Gate Control Red Green LED control (momentarily).
- Page 3 Viking E-10/PAN-1 Wiring Diagram TO GATE CONTROLLER OR “REMOTE TERMINALS” ON ASCII CONTROLLER Strike 1 To Phones Door 1 VIKING PAN 1 13.8 12vDC For Camera 1.5A To Automation System Relay NO & COM To Automation System Page 3 TYPE 6.5.0.4-RF...
- Page 4 Programming Mode - E-10 is factory pre-set, and normally does not need re-programming. Refer to E-10 manual (Viking document which is included) for details Holovision recommends the default settings on the dip switches. See the E-10 manual for more information. Page 4...
