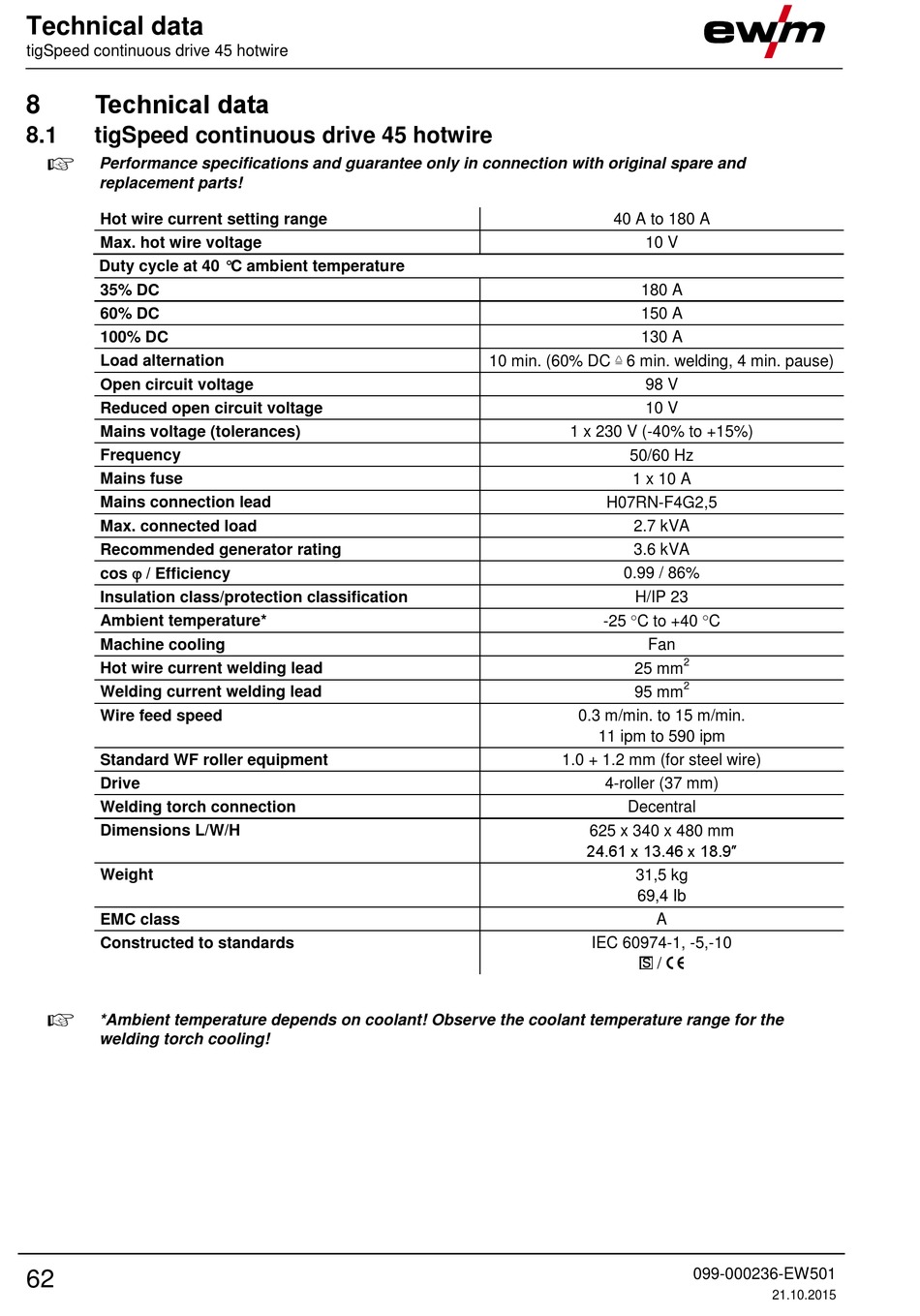

Technical data

tigSpeed continuous drive 45 hotwire

Technical data
8
8.1 tigSpeed continuous drive 45 hotwire
Performance specifications and guarantee only in connection with original spare and
replacement parts!
Hot wire current setting range
Max. hot wire voltage
Duty cycle at 40 °C ambient temperature
35% DC
60% DC
100% DC
Load alternation
Open circuit voltage
Reduced open circuit voltage
Mains voltage (tolerances)
Frequency
Mains fuse
Mains connection lead
Max. connected load
Recommended generator rating
cos  / Efficiency
Insulation class/protection classification
Ambient temperature*
Machine cooling
Hot wire current welding lead
Welding current welding lead
Wire feed speed
Standard WF roller equipment
Drive
Welding torch connection
Dimensions L/W/H
Weight
EMC class
Constructed to standards
*Ambient temperature depends on coolant! Observe the coolant temperature range for the
welding torch cooling!
62
40 A to 180 A
10 V
180 A
150 A
130 A

10 min. (60% DC 6 min. welding, 4 min. pause)
98 V
10 V
1 x 230 V (-40% to +15%)
50/60 Hz
1 x 10 A
H07RN-F4G2,5
2.7 kVA
3.6 kVA
0.99 / 86%
H/IP 23
-25 C to +40 C
Fan
25 mm
95 mm
0.3 m/min. to 15 m/min.
11 ipm to 590 ipm
1.0 + 1.2 mm (for steel wire)
4-roller (37 mm)
Decentral
625 x 340 x 480 mm
24.61 x 13.46 x 18.9"
31,5 kg
69,4 Ib
A
IEC 60974-1, -5,-10
/
2
2
099-000236-EW501
21.10.2015
