5.13.1.5 Latched automatic

The welding machine has to be set to a latched operating mode.
1. cycle (current)
•
Press torch trigger 1 (BRT 1), the gas pre-flow time elapses.
•
HF ignition pulses jump from the tungsten electrode to the workpiece. The arc ignites.
•
Welding current flows.
2. cycle (current)
Release BRT 1.
•
The welding current ramps up to the main current AMP in the selected up-slope time.
1. cycle (wire)
•
The wire electrode is fed once the delay time (t-start) has elapsed.
3. cycle (current)
•
Press BRT 1.
•
The main current is reduced in the selected down-slope time.
2. cycle (wire)
•
Wire electrode feeding is stopped, wire electrode is returned by the set wire return value.
4. cycle (current)
•
Release BRT 1, the arc extinguishes.
•
Shielding gas continues to flow in the selected gas post-flow time.
•
By tapping you can switch to the reduced wire feeding.
•
By pressing and releasing (tapping) BRT 1 again, wire feeding will stop. (It is not necessary to keep
the torch trigger pressed. This is especially helpful with long welding seams.)
Stopping the welding process:
•
Keep BRT 1 pressed for a period longer than the set tapping time.
099-000236-EW501
21.10.2015
Configuring the welding machine for mechanical arc fusion welding

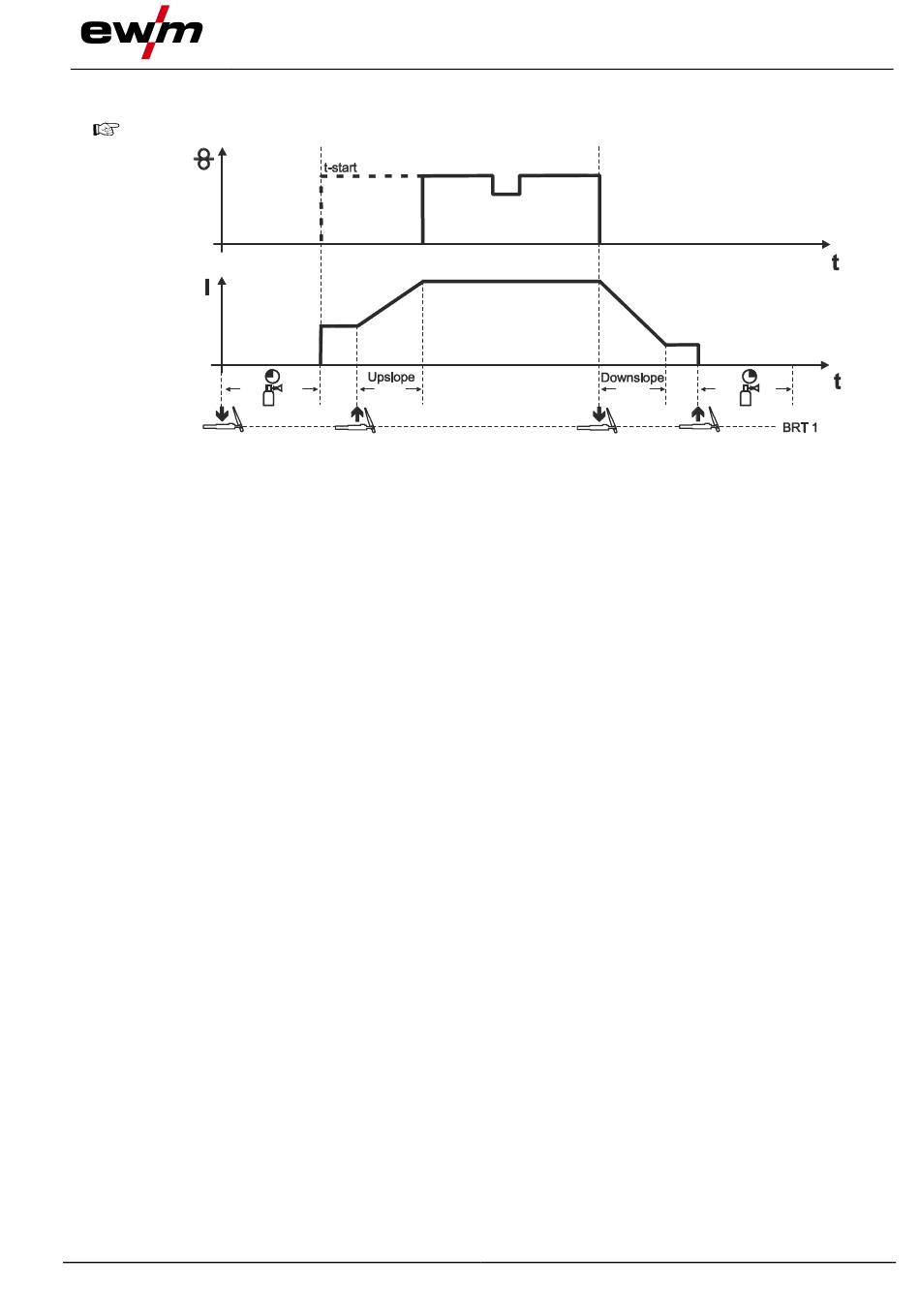

Figure 5-21
