Design and function

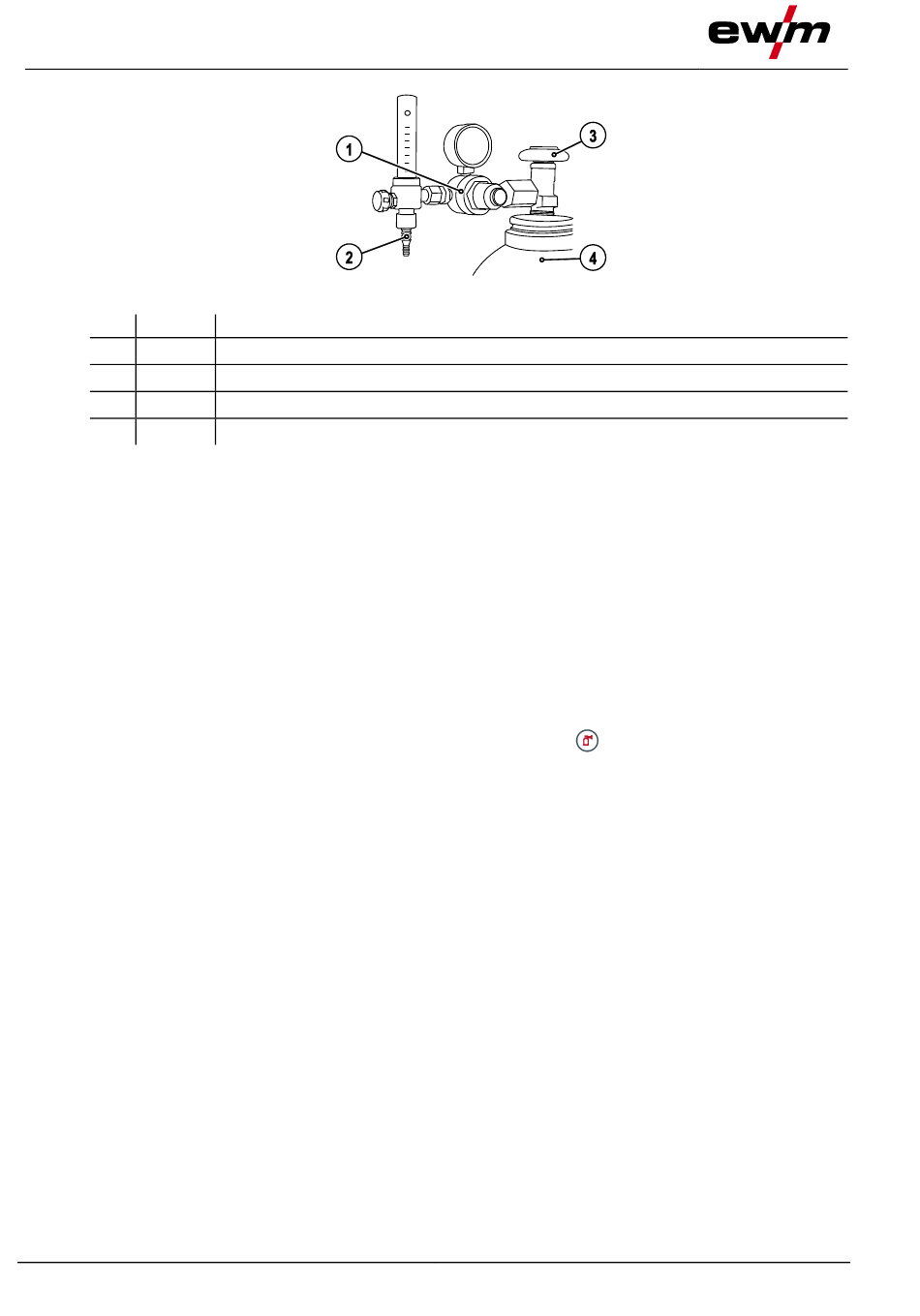

Shielding gas supply (shielding gas cylinder for welding machine)
Item Symbol
1
2
3
4
•
Place the shielding gas cylinder into the relevant cylinder bracket.
•
Secure the shielding gas cylinder using a securing chain.
•
Tighten the pressure regulator screw connection on the gas bottle valve to be gas-tight.
•
Tighten gas hose on pressure regulator to be gas tight.
•
Fasten the gas hose to the shielding gas connecting nipple at the back of the machine using the crown
nut.

5.12.2 Gas test

•
Slowly open the gas cylinder valve.
•
Open the pressure regulator.
•
Switch on the power source at the main switch.
•
Initiate gas test function on the machine control.
•
Set the relevant gas quantity for the application on the pressure regulator.
•
The gas test is triggered on the machine control by pressing the
Shielding gas flows for around 25 seconds or until the button is pressed again.
44
Description 0
Pressure regulator
Shielding gas cylinder
Output side of the pressure regulator
Cylinder valve
Figure 5-16
button briefly.
