Machine description – quick overview
Machine control – Operating elements
Machine control – Concealed operating elements
4.4.1
Item Symbol
1
2
3
4 sec
5
6
7
8 Super-
puls
9
10
11
12
22
Description 0
Select welding parameters button
This button is used to select the welding parameters depending on the welding process
and operating mode used.
Signal light, wire feeder start delay
Setting range 0.0 s to 20.0 s
Signal light, wire feed speed of main program (P
Signal light, duration of main program P
Setting range 0.1 s to 20.0 s (0.1 s increments).
Used e.g. in connection with the super pulse function
Signal light, wire feed speed of reduced main program (P
Signal light, duration of reduced main program P
Setting range: 0.1 s to 20.0 s (0.1 s increments).
Use in combination with superPuls or tacking function.
Signal light, wire return
Setting range from 0.0 mm to 50.0 mm
Signal lamp, super pulse function
Lights up when the super pulse function is active.
Signal light, ON Hotwire
Lights up when the Hotwire function is active.
Push-button, ON Hotwire
Switch Hotwire function on/off.
Push-button, wire inching/motor current (wire feed mechanism)
- See 5.11.4 Inching the wire electrode chapter
Gas test
Gas test: For setting the shielding gas quantity - See 5.12.2 Gas test chapter

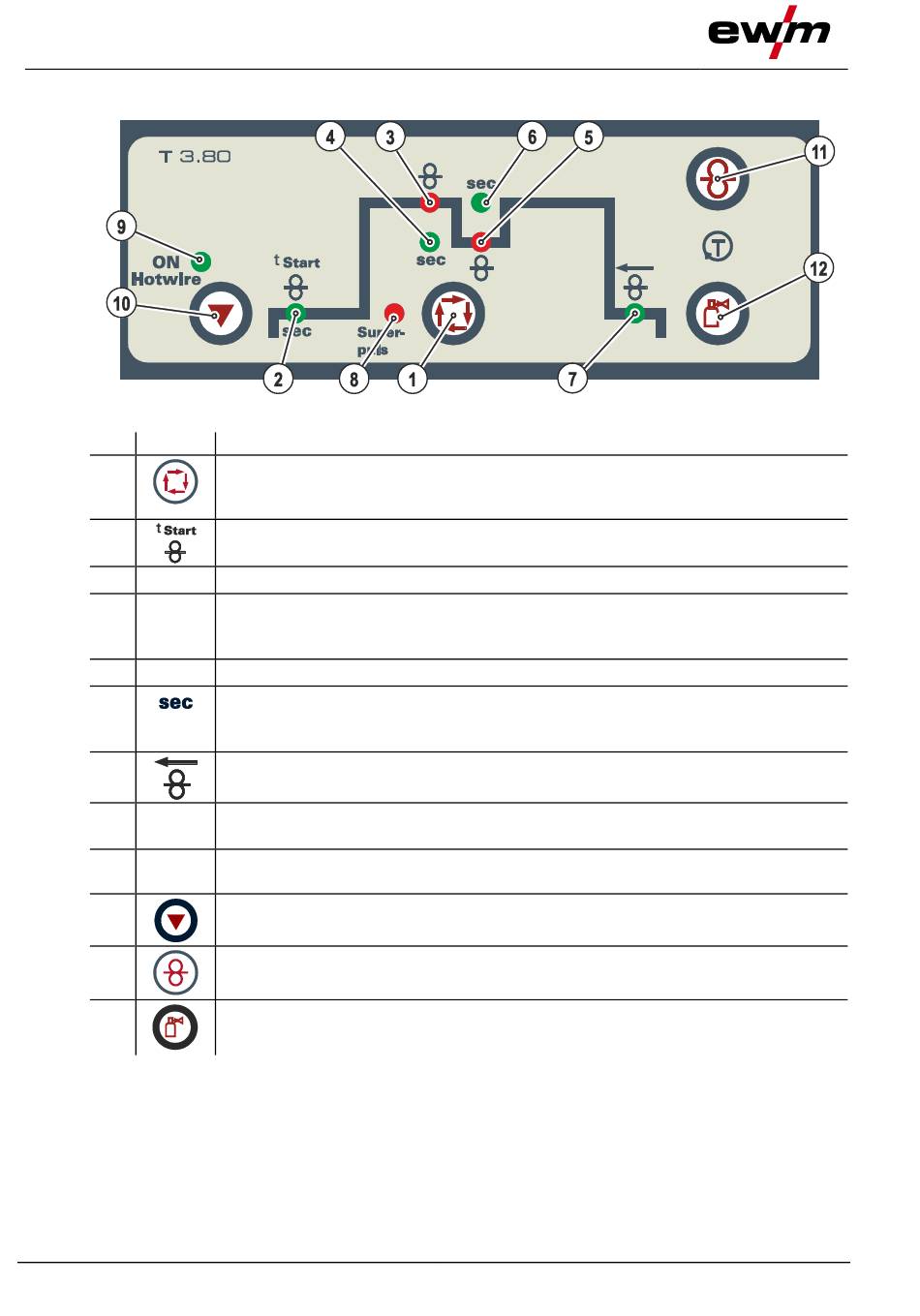

Figure 4-5
)
A
A
B
)
B
