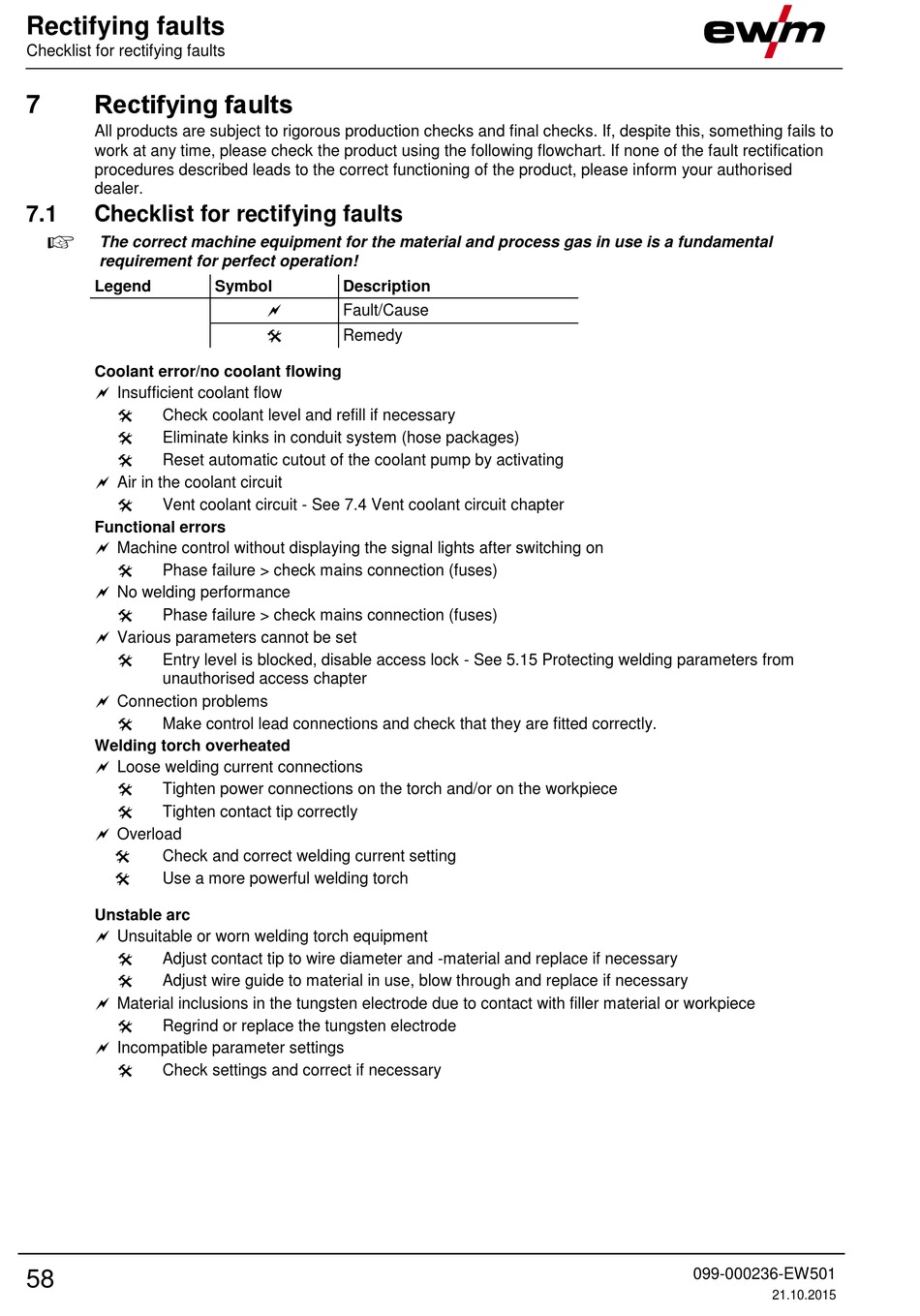

Rectifying faults

Checklist for rectifying faults

Rectifying faults
7
All products are subject to rigorous production checks and final checks. If, despite this, something fails to
work at any time, please check the product using the following flowchart. If none of the fault rectification
procedures described leads to the correct functioning of the product, please inform your authorised
dealer.
7.1 Checklist for rectifying faults
The correct machine equipment for the material and process gas in use is a fundamental
requirement for perfect operation!
Legend
Coolant error/no coolant flowing
 Insufficient coolant flow

Check coolant level and refill if necessary

Eliminate kinks in conduit system (hose packages)

Reset automatic cutout of the coolant pump by activating
  A ir in the coolant circuit

Vent coolant circuit - See 7.4 Vent coolant circuit chapter
Functional errors
 Machine control without displaying the signal lights after switching on

Phase failure > check mains connection (fuses)
 No welding performance

Phase failure > check mains connection (fuses)
 Various parameters cannot be set

Entry level is blocked, disable access lock - See 5.15 Protecting welding parameters from
unauthorised access chapter
 Connection problems

Make control lead connections and check that they are fitted correctly.
Welding torch overheated
  L oose welding current connections

Tighten power connections on the torch and/or on the workpiece

Tighten contact tip correctly
 Overload

Check and correct welding current setting

Use a more powerful welding torch
Unstable arc
 Unsuitable or worn welding torch equipment

Adjust contact tip to wire diameter and -material and replace if necessary

Adjust wire guide to material in use, blow through and replace if necessary
 Material inclusions in the tungsten electrode due to contact with filler material or workpiece

Regrind or replace the tungsten electrode
 Incompatible parameter settings

Check settings and correct if necessary
58
Symbol Description

Fault/Cause

Remedy
