Intermediate Hose Package Connection - EWM tigSpeed continuous drive 45 hotwire Operating Instructions Manual

5.8

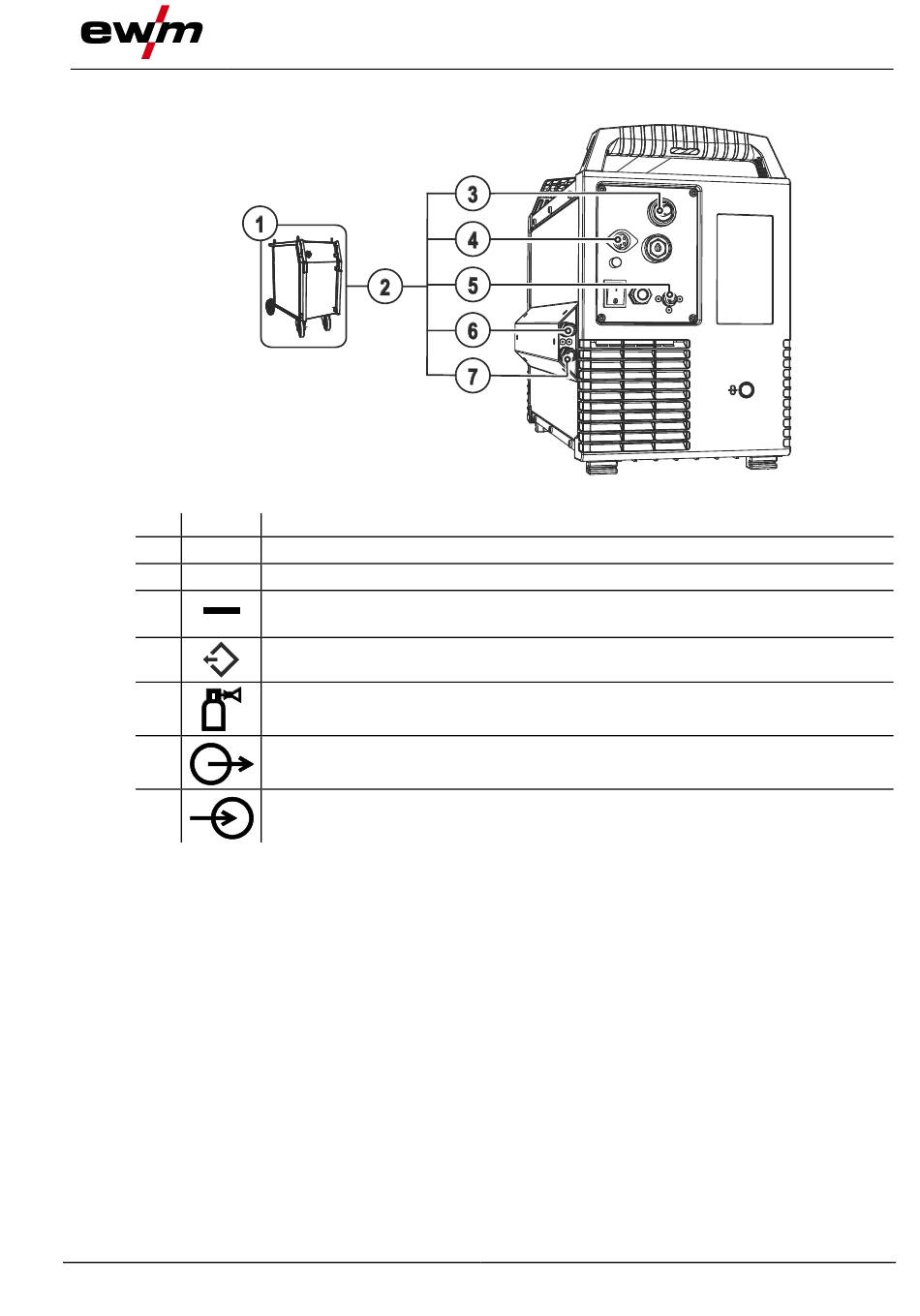

Intermediate hose package connection

Item Symbol
1
2
3
4
5
6
7
•
Push the cable socket for the welding current (TIG) onto the connector plug (TIG) and lock by turnng
to the right.
•
Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).
•
Insert the control cable plug into the connection socket (5-pole) and secure (the plug can only be
inserted into the connection socket in one position).
•
Screw the crown nut on the shielding gas lead gastight to the connecting thread (G¼").
099-000236-EW501
21.10.2015
Description 0
Power source
Intermediate hose package
Connector plug (TIG)
Welding current, minus potential
Connector plug, 5-pole
Control lead
Connecting nipple G¼, shielding gas connection
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Design and function
Intermediate hose package connection
Figure 5-7
33
