Item Symbol
7
8
9
•
Extend and lay out the torch hose package.
•
Insert the wire feed plug of the welding torch into the wire electrode connector and lock by turning to
the right.
•
Push the cable plug for the welding current (TIG) onto the connection socket (TIG) and lock by turning
to the right.
•
Insert shielding gas rapid-action closure nipple in the quick connect coupling and engage.
•
Insert welding torch control lead into the 12-pole connection socket and secure with the crown nut.
If fitted:
•
Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).
•
Push the cable plug for the hot wire current onto the connection socket (TIG hot wire) and lock by
turning to the right.

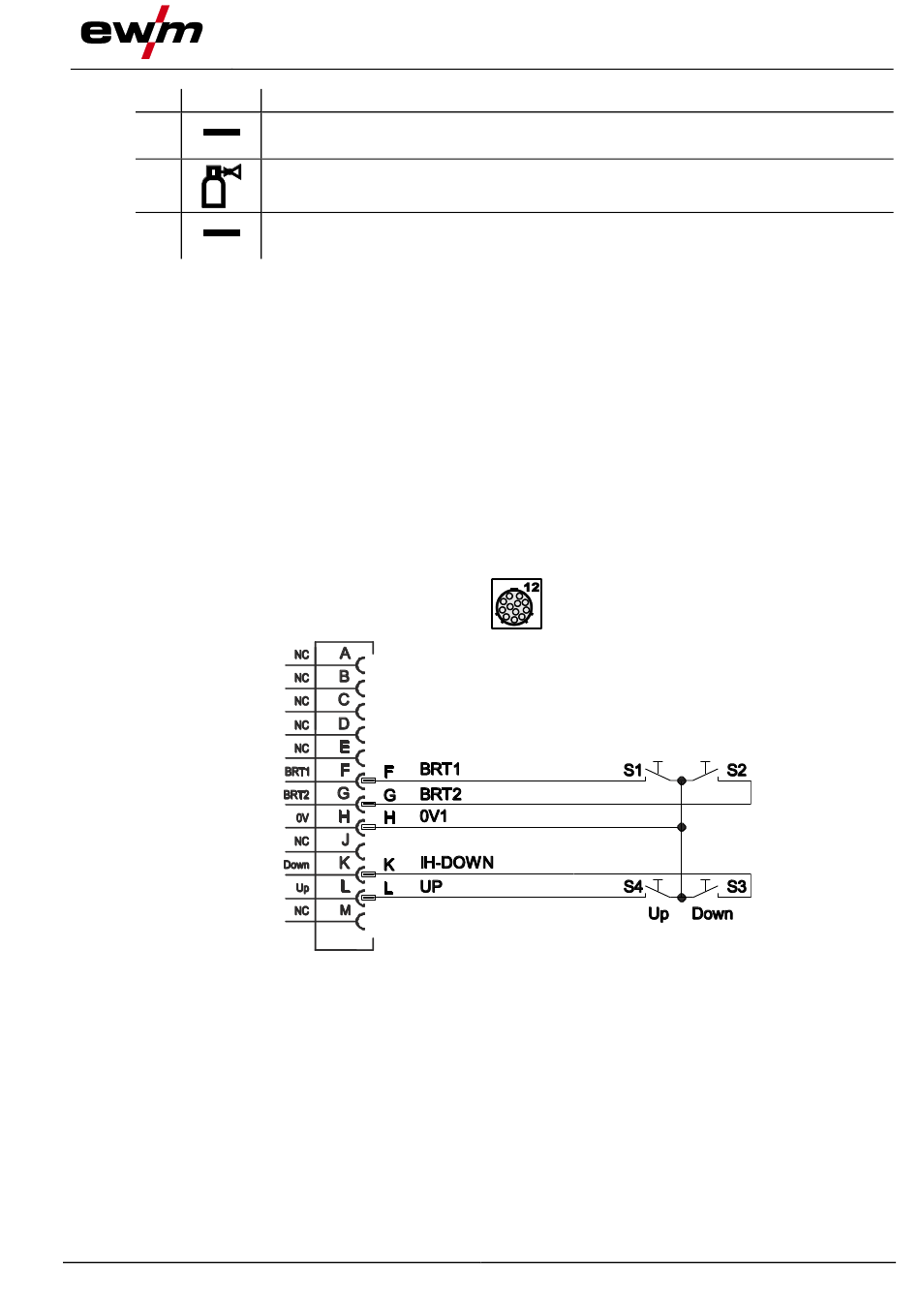

5.10.1 Control cable pin configuration

099-000236-EW501
21.10.2015
Description 0
Connection socket (TIG hot wire)
Hot wire power, minus potential
Quick connect coupling
Shielding gas
Connection socket (TIG)
Welding current, minus potential
Design and function
Figure 5-11
Welding torch connection
