Design and function
Intermediate hose package connection
5.8.1

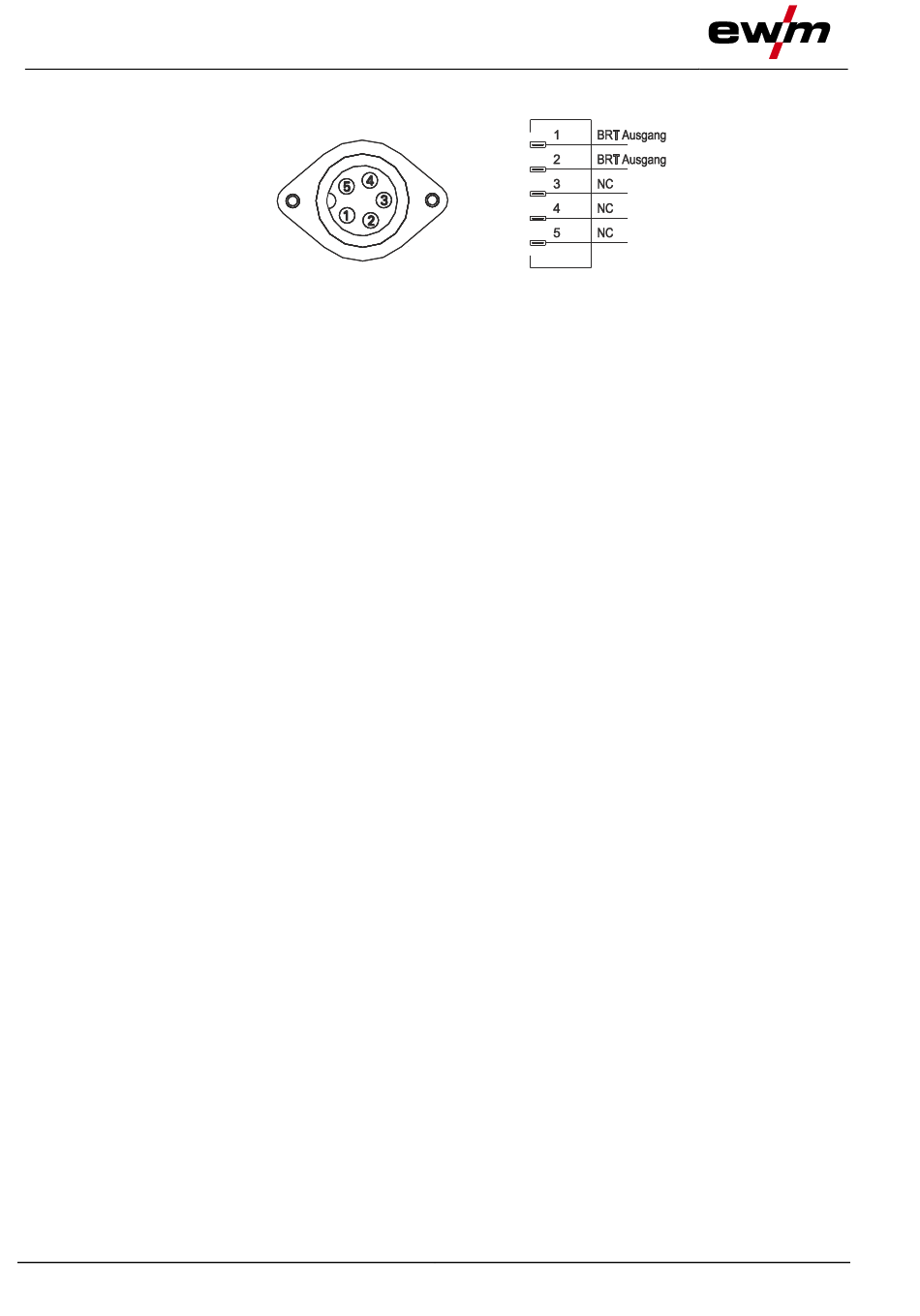

Control cable pin configuration

Output (make contact) for torch trigger input of the power source (floating contact)
34
Figure 5-8
099-000236-EW501
21.10.2015
