DP M- C5 0 1L O pe r a t io n M a nu a l

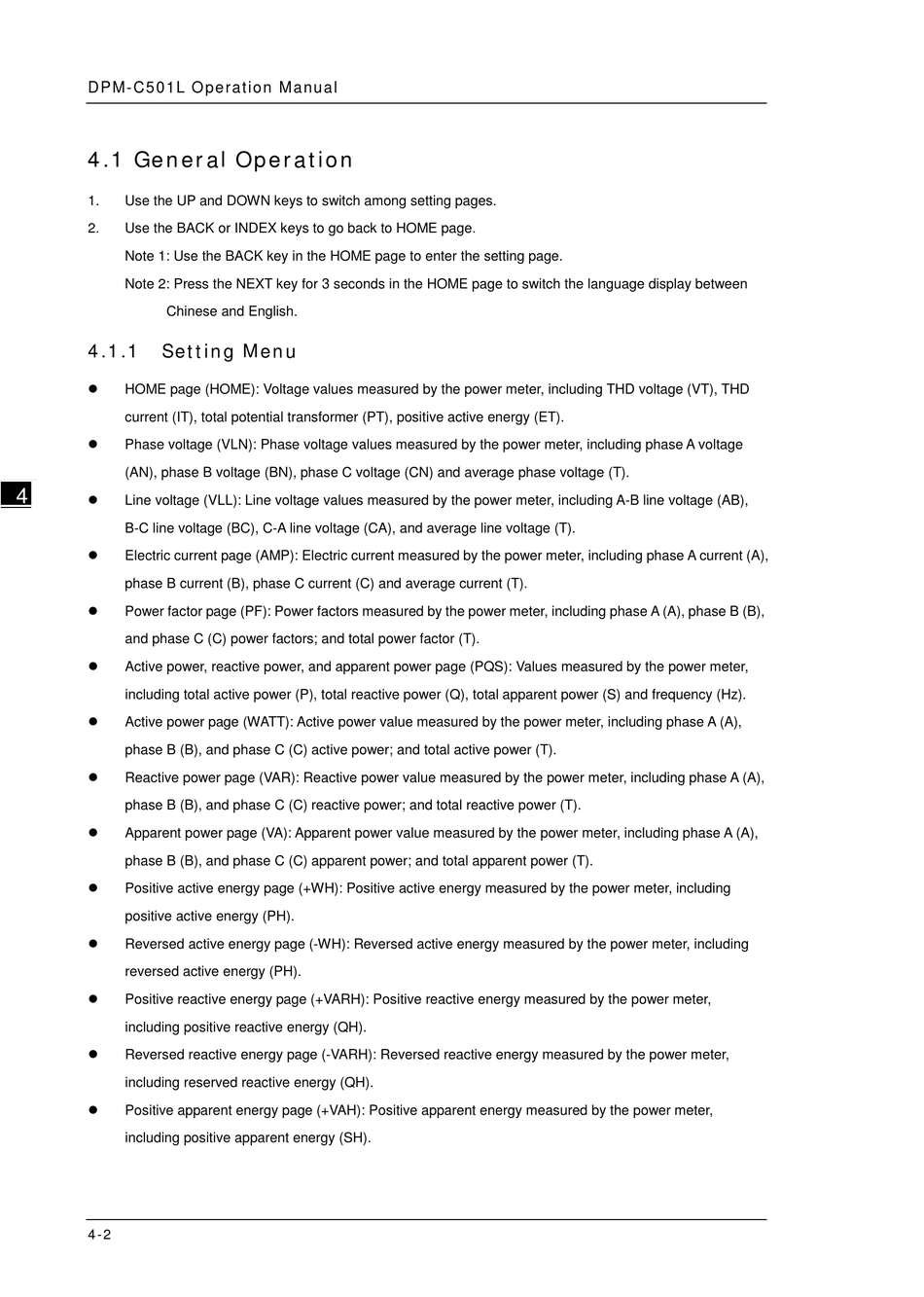

4.1 General Operation

1. Use the UP and DOWN keys to switch among setting pages.
2. Use the BACK or INDEX keys to go back to HOME page.
Note 1: Use the BACK key in the HOME page to enter the setting page.
Note 2: Press the NEXT key for 3 seconds in the HOME page to switch the language display between
Chinese and English.
4.1.1

Setting Menu


HOME page (HOME): Voltage values measured by the power meter, including THD voltage (VT), THD
current (IT), total potential transformer (PT), positive active energy (ET).

Phase voltage (VLN): Phase voltage values measured by the power meter, including phase A voltage
(AN), phase B voltage (BN), phase C voltage (CN) and average phase voltage (T).
_4

Line voltage (VLL): Line voltage values measured by the power meter, including A-B line voltage (AB),
B-C line voltage (BC), C-A line voltage (CA), and average line voltage (T).

Electric current page (AMP): Electric current measured by the power meter, including phase A current (A),
phase B current (B), phase C current (C) and average current (T).

Power factor page (PF): Power factors measured by the power meter, including phase A (A), phase B (B),
and phase C (C) power factors; and total power factor (T).

Active power, reactive power, and apparent power page (PQS): Values measured by the power meter,
including total active power (P), total reactive power (Q), total apparent power (S) and frequency (Hz).

Active power page (WATT): Active power value measured by the power meter, including phase A (A),
phase B (B), and phase C (C) active power; and total active power (T).

Reactive power page (VAR): Reactive power value measured by the power meter, including phase A (A),
phase B (B), and phase C (C) reactive power; and total reactive power (T).

Apparent power page (VA): Apparent power value measured by the power meter, including phase A (A),
phase B (B), and phase C (C) apparent power; and total apparent power (T).

Positive active energy page (+WH): Positive active energy measured by the power meter, including
positive active energy (PH).

Reversed active energy page (-WH): Reversed active energy measured by the power meter, including
reversed active energy (PH).

Positive reactive energy page (+VARH): Positive reactive energy measured by the power meter,
including positive reactive energy (QH).

Reversed reactive energy page (-VARH): Reversed reactive energy measured by the power meter,
including reserved reactive energy (QH).

Positive apparent energy page (+VAH): Positive apparent energy measured by the power meter,
including positive apparent energy (SH).
4 - 2
