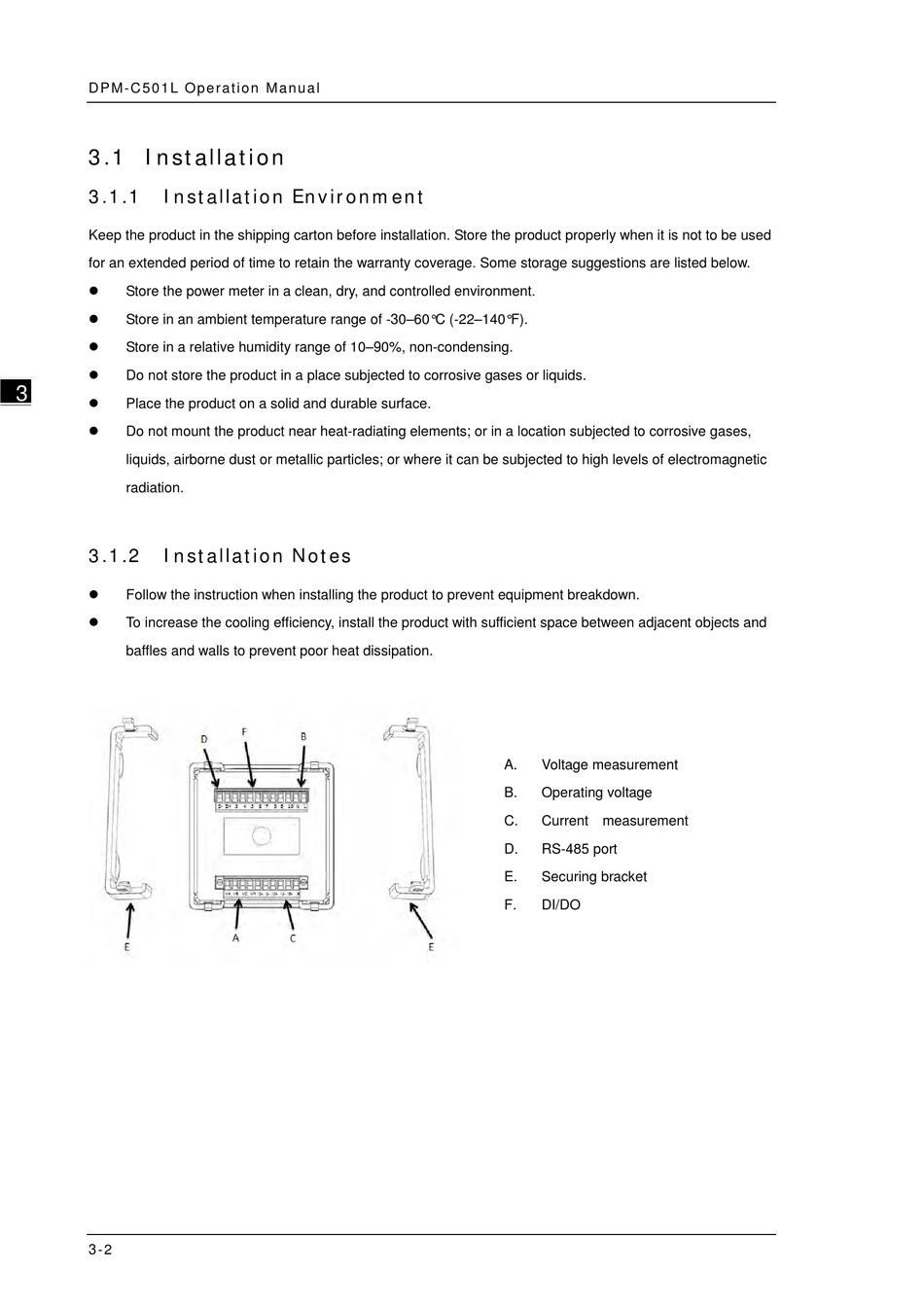

D P M - C 5 0 1 L O p e r a t i o n M a n u a l
3.1 Installation
3.1.1
Installation Environment
Keep the product in the shipping carton before installation. Store the product properly when it is not to be used
for an extended period of time to retain the warranty coverage. Some storage suggestions are listed below.
Store the power meter in a clean, dry, and controlled environment.
Store in an ambient temperature range of -30–60°C (-22–140°F).
Store in a relative humidity range of 10–90%, non-condensing.
Do not store the product in a place subjected to corrosive gases or liquids.
_3
_3
Place the product on a solid and durable surface.
Do not mount the product near heat-radiating elements; or in a location subjected to corrosive gases,
liquids, airborne dust or metallic particles; or where it can be subjected to high levels of electromagnetic
radiation.
3.1.2
Installation Notes
Follow the instruction when installing the product to prevent equipment breakdown.
To increase the cooling efficiency, install the product with sufficient space between adjacent objects and
baffles and walls to prevent poor heat dissipation.
3 - 2
A.
Voltage measurement
B.
Operating voltage
C.
Current measurement
D.
RS-485 port
E.
Securing bracket
F.
DI/DO
