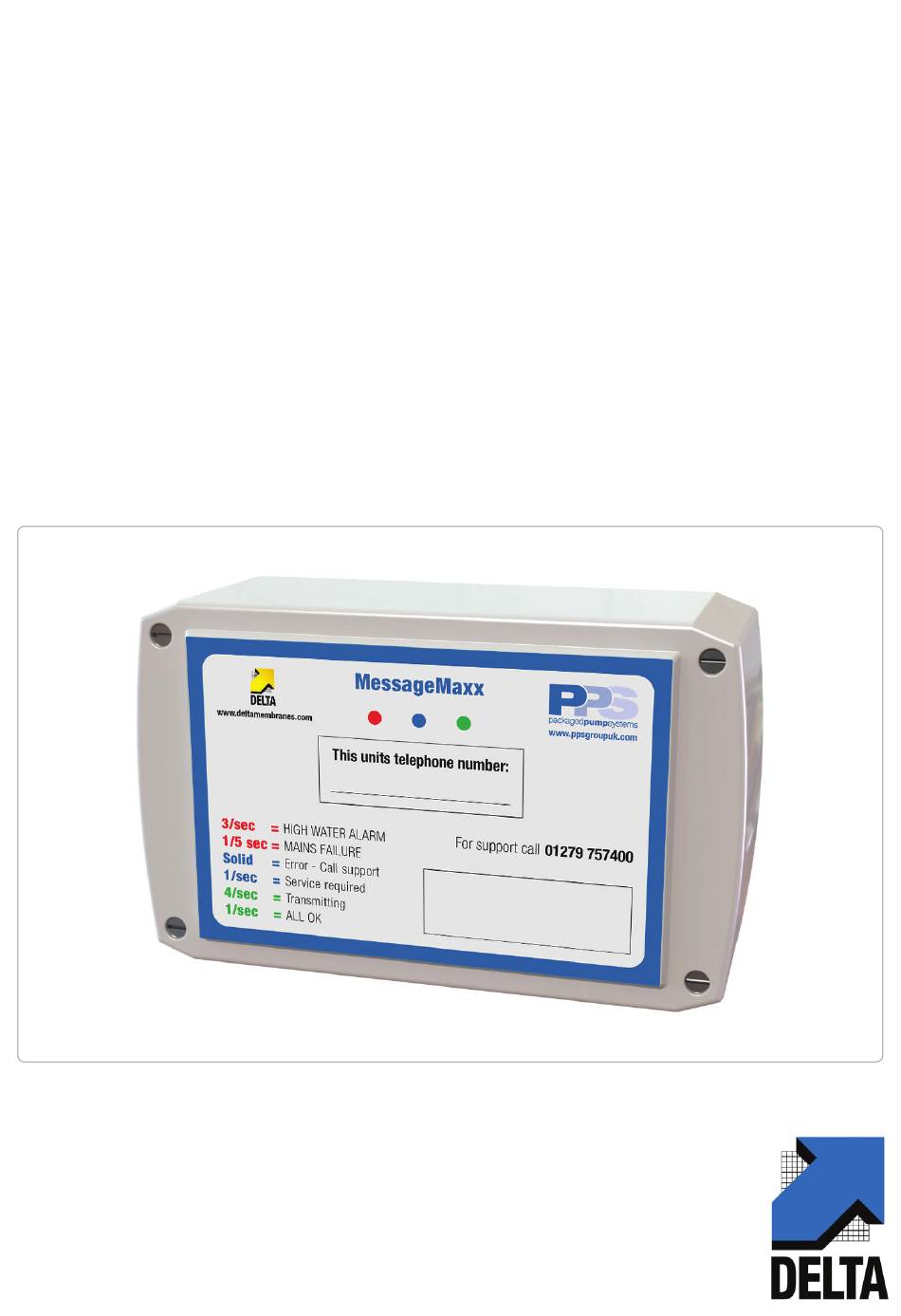

- Page 1 Pump Station Telemetry System MessageMaxx™ (DMS-279) Installation & Operating Instructions Rev 1 For Ground & Foul Water 01992 523523 info@deltamembranes.com www.deltamembranes.com...
- Page 2 All rights reserved. Contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without express written consent from Delta Membranes. Subject to technical modification without prior notice.
-
Page 3: Table Of Contents
MessageMaxx Contents MessageMaxx overview Box contents Cardboard box contents MessageMaxx unit contents Technical information Unit location SIM card selection Mounting the MessageMaxx unit Installing the MessageMaxx unit Wiring the MessageMaxx unit Installing the GSM aerial 10.0 Configuring the MessageMaxx unit 11.0 Mounting the GSM aerial 12.0 Text commands 13.0 Text message structure... -
Page 4: Messagemaxx Overview

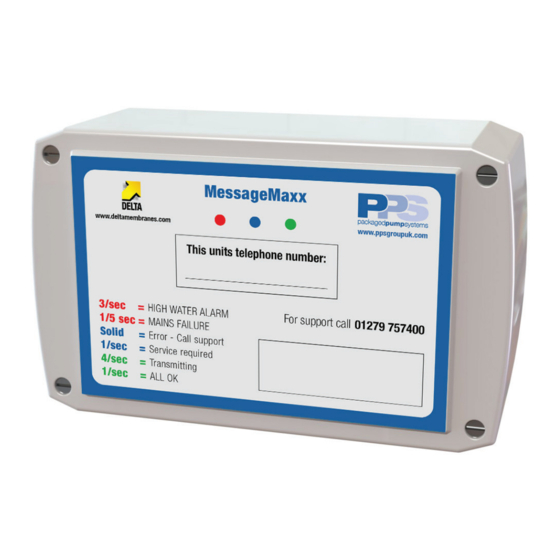

MessageMaxx MessageMaxx overview This telemetry system is designed to be used in conjunction with the AlertMaxx high level alarm and has the ability to connect with the PowerMaxx battery backup, to give remote monitoring of a pump station when the home owner is away from their property. Messages are sent to predetermined phone numbers using GSM technology and are received in text format. -
Page 5: Technical Information
MessageMaxx Technical information MessageMaxx Specification Size (without cable glands) W: 115mm x D: 95mm x H: 60mm Weight 400g Visual Display Red, Blue, Green LED Operating temperature 5-35°C Approximate Installation time 30 minutes Unit location The MessageMaxx must be positioned within 20m of the AlertMaxx unit it will be used in conjunction with, somewhere with a good GSM signal, within 3m of the aerial mounting point and be permanently accessible. -
Page 6: Installing The Messagemaxx Unit
MessageMaxx Installing the MessageMaxx unit Disconnect the battery and mains power to the AlertMaxx unit and ensure the PowerMaxx is switched off (if installed). Remove the black sliding cover on the GSM box, slide the SIM hatch back, flip up, install the SIM card, push down and lock shut. -
Page 7: Wiring The Messagemaxx Unit
MessageMaxx Wiring the MessageMaxx unit Please refer to the MaxxConnect Installation & Operating Instructions. For technical support, please call 01279 757400... -
Page 8: Installing The Gsm Aerial
MessageMaxx Installing the GSM aerial Prior to testing, position the aerial in the preferred mounting location - do not fix. The aerial is magnetic and should be stuck to the mounting plate (provided). This has been designed to boost the signal. Set the internal switch on the PCB to the ‘SIG’... -
Page 9: Configuring The Messagemaxx Unit
MessageMaxx 10.0 Configuring the MessageMaxx unit Using a mobile phone, text the units telephone number with a ‘?’. The green LED will flash 4/sec as the response message is sent to your mobile phone. The reply from the unit will give you a STATUS message. Ensure that all people who would like to be on the active list text the units telephone number with a ‘?’. -
Page 10: Text Commands
MessageMaxx 12.0 Text commands The MessageMaxx can be interrogated using a number of different text message commands. The table below shows those that can be used. PLEASE NOTE To be able to execute these commands, you must already be on the active telephone list. In order to do this, text the units telephone number with a ‘?’... -
Page 11: Text Message Structure
MessageMaxx 13.0 Text message structure Content Purpose Example *CRITICAL* Urgency This informs you of the urgency for action (if required). 12PIGLANE Property This informs you of the property address (if assigned using the SP= command). MAINS DOWN AND BATTERIES LOW Event This informs you of the event or action taken place. -
Page 12: Limitations
MessageMaxx 14.0 Limitations The text message response time of the unit is normally <20 seconds. The network operators and Delta Membranes do not give 100% guarantee of delivery. This implies that there will be no guarantee that a text message will be forwarded in a timely manner, or even at all. -
Page 13: Spares
MessageMaxx 16.0 Spares Part No. Description DMS-288 MaxxConnect family cable extension - sold per 10m DMS-293 MessageMaxx Aerial - 3m DMS-294 MessageMaxx Aerial Base Plate For technical support, please call 01279 757400... -
Page 14: Led Codes
MessageMaxx 17.0 LED codes Red LED Blue LED Green LED Fault 3/sec High water alarm 1/5sec 1/sec Mains failure Solid Error - Call support 1/sec Service required 4/sec Transmitting 1/sec All OK All flash in sequence Battery too low to start up 8/sec Trying to find other MaxxConnect units 1/sec... - Page 15 MessageMaxx Figure 1. (Scale 1:1) Mounting hole positions For technical support, please call 01279 757400...
- Page 16 After Sales Service All Delta Membrane pump systems are fitted & can be maintained by our partners, Packaged Pump Systems. With our long-term relationship we ensure that the system selected is fit for your requirements, is delivered on time, professionally installed & offers hassle free on-going operation & maintenance.
