8.2.2.1 Platform Parameters
Type
The user can configure the platform type in use via the controller front panel or the
software application.
The firmware/software application will have a different naming schema under platform
type in the drop down than the one provided in the marketing/sales datasheets.
Listed below are just a few of the supported Platforms that will appear in the application
drop down.
** The dash and number after the letter is dropped when selecting the mount type in the
iNetVu software, i.e. A0985A-1 becomes A0985A and so on.
Drive-Away 75cm, 2 Axis (Ka – Viasat SurfBeam Transceiver)
®
A0755A --- iNetVu
Drive-Away 75cm, 2 Axis (Ka – Viasat ETRIA Transceiver)
®
A0755A-5 --- iNetVu
®
A0756A-3 --- iNetVu Fly-Away 75cm, 2 Axis (Ka - Viasat SurfBeam Transceiver)
®
A0756A-5 --- iNetVu Fly-Away 75cm, 2 Axis (Ka - Viasat ETRIA Transceiver)
Drive-Away 98cm, 2 Axis (Ka – HNS Spaceway Transceiver)
®
A0985A-1 --- iNetVu
Drive-Away 98cm, 2 Axis (Ka – Skyware Global Transceiver)
®
A0985A-2 --- iNetVu
Drive-Away 98cm, 2 Axis (Ka – Viasat SurfBeam Transceiver)
®
A0985A-3 --- iNetVu
Drive-Away 98cm, 2 Axis (Ka – HNS Jupiter Transceiver)
®
A0985A-4 --- iNetVu
Drive-Away 98cm, 2 Axis (Ka – Viasat ETRIA Transceiver)
®
A0985A-5 --- iNetVu
Drive-Away 98cm, 3 Axis (Ka – HNS Spaceway Transceiver)
®
A0985B-1 --- iNetVu
Drive-Away 98cm, 3 Axis (Ka – Skyware Global Transceiver)
®
A0985B-2 --- iNetVu
A0985C (981-J NO GPS COMPASS) --- iNetVu
®
A0986A-1 --- iNetVu Fly-Away 98cm, 2 Axis (Ka - HNS Spaceway Transceiver)
®
A0986A-2 --- iNetVu Fly-Away 98cm, 2 Axis (Ka - Skyware Global Transceiver)
®
A0986A-3 --- iNetVu Fly-Away 98cm, 2 Axis (Ka - Viasat SurfBeam Transceiver)
®
A0986A-4 --- iNetVu Fly-Away 98cm, 2 Axis (Ka - HNS Jupiter Transceiver)
®
A0986A-5 --- iNetVu Fly-Away 98cm, 2 Axis (Ka - Viasat ETRIA Transceiver)
®
A0986B-1 --- iNetVu Fly-Away 98cm, 3 Axis (Ka - HNS Spaceway Transceiver)
®
A0986B-2 --- iNetVu Fly-Away 98cm, 3 Axis (Ka - Skyware Global Transceiver)
Fly-981, 3 Axis New Gen Fly-Away 98cm (Ku – Band, XPOL)
®
A0986C --- iNetVu
®
A0987A-4 --- iNetVu Drive-Away 98cm, SMC REFL, 2 Axis (Ka - HNS Jupiter Transceiver)
®
A0987B-4 --- iNetVu Drive-Away 98cm, SMC REFL, 3 Axis (Ka - HNS Jupiter Transceiver)
New Gen Drive-Away, 1.2m (Ku – Band, XPOL)
®
A1201A --- iNetVu
®
A1205A-2 --- iNetVu New Gen Drive-Away 1.2m, 2 Axis (Ka - Skyware Global Transceiver)

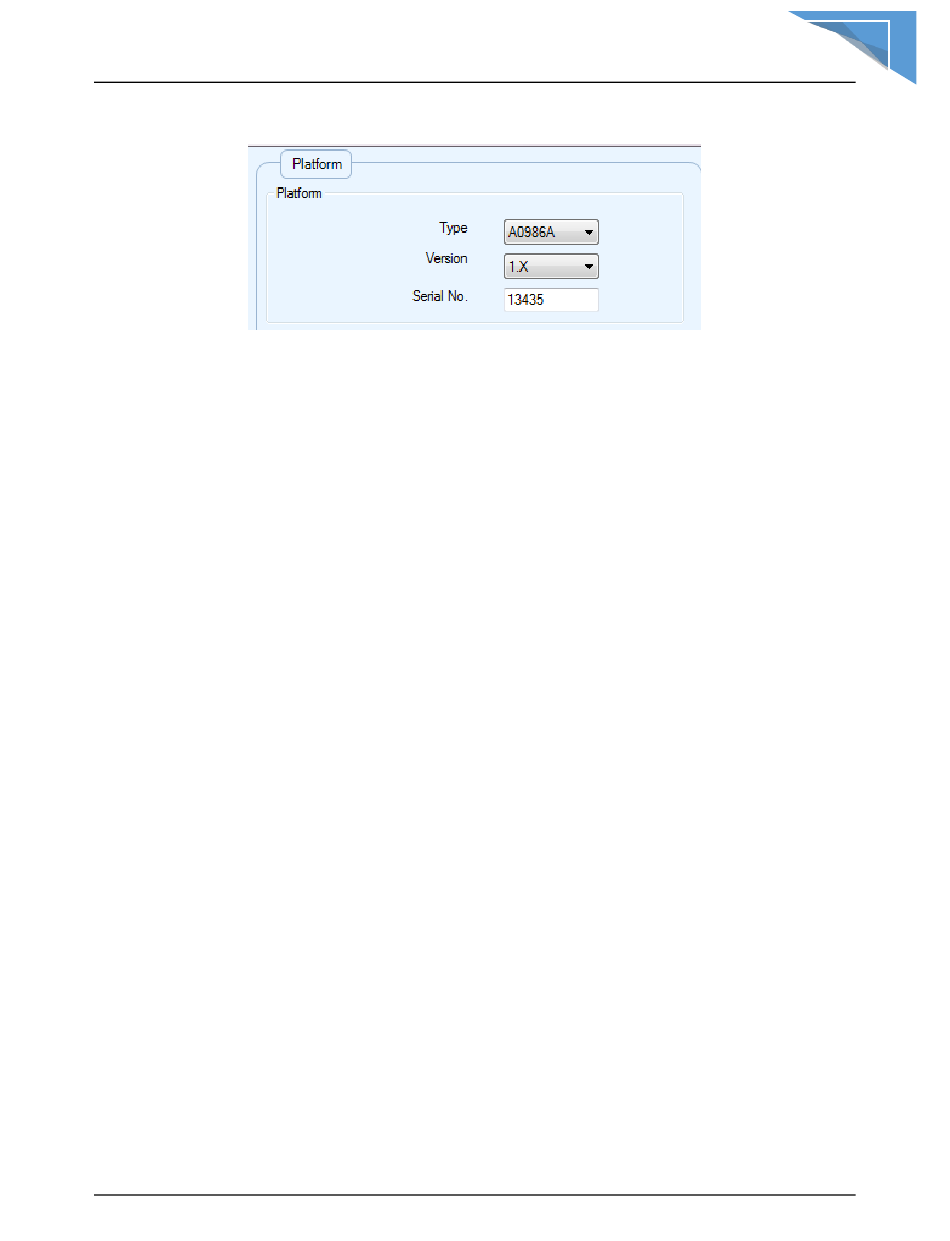

Fig. 72: Maintenance Platform Parameters
Drive-Away 98cm, 3 Axis (Ku – Band, XPOL)
®
