7. iNetVu 7710 Front Panel Operation
7.1.

LED DEFINITIONS

®

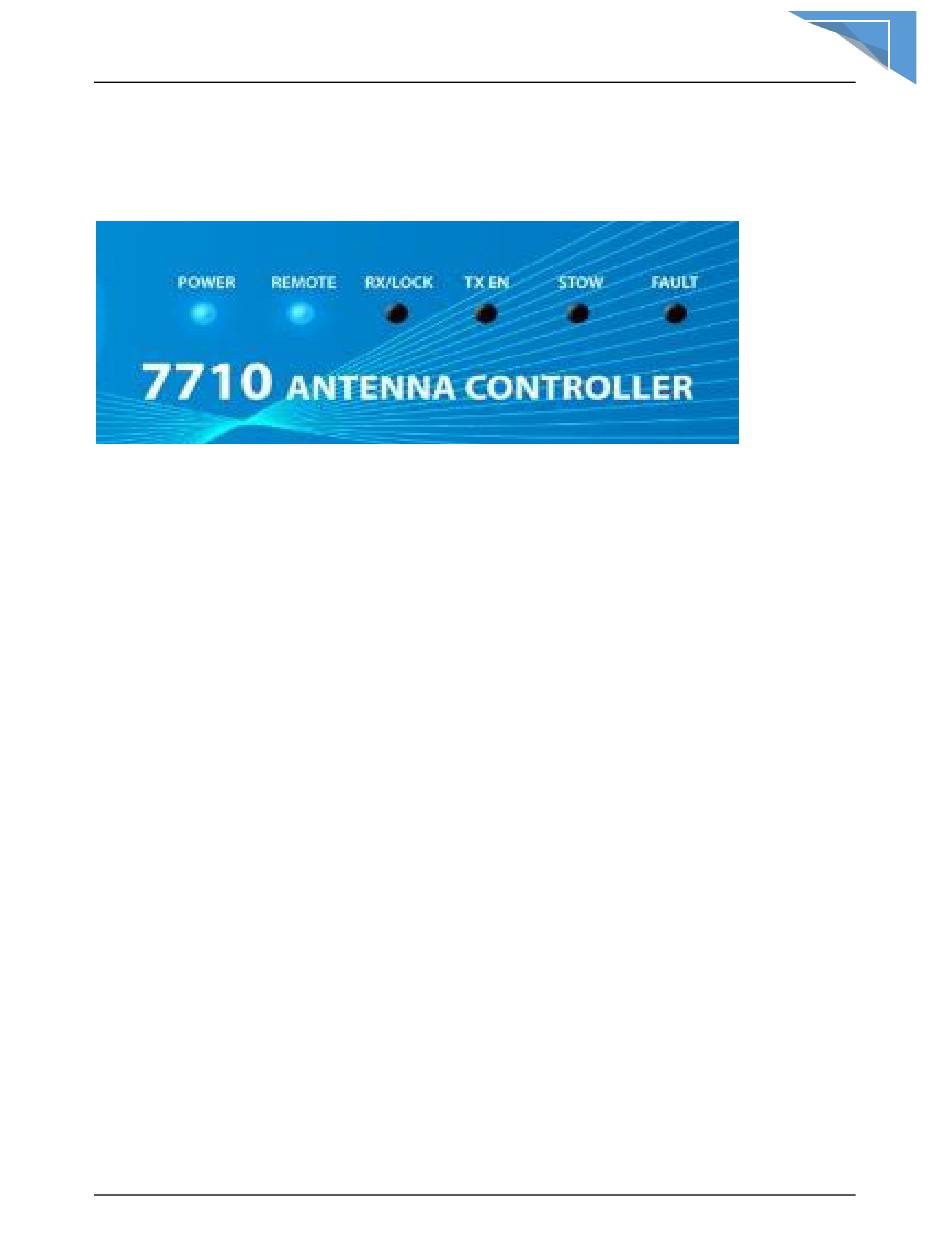

Fig. 9: iNetVu 7710 Series Controller Front Panel LED Panel
POWER - Solid light indicates power is ON.
REMOTE - 7720 remote controller status.
REMOTE LED will flash (Blue) every 1000ms if CANBUS and MODEM communication
successful.
REMOTE LED will flash (Red) every 125ms indicating an error if no CANBUS communication
exists.
RX/LOCK - RX status indication.
TX EN - Solid Light indicates transmitter has been enabled.
®
STOW - Solid Light indicates iNetVu Mobile Platform Elevation Axis (EL) is in the stowed
position.
FAULT - Light indicates system fault status.
FAULT LED will flash (Red) every 125ms indicating an error if sensor error is detected.
FAULT LED will flash (Yellow) every 500ms indicating a warning if GPS is overridden or not
communicating, or if COMPASS is overridden and there is no sensor error.
