4. Physical

RX OUT
Additional Receive
Signal output
RX IN
Receive Signal
from iNetVu
Mobile Platform
AUX SERIAL
(OPTIONAL) PORT
Second Serial Serial Port
Port, used for Interface
remote FIND SAT,
STOW and Serial
communicating
devices
Note: GPS/Glonass and Motor/Sensor connection(s) have been moved to the Remote
(on-Board) 7720 Controller.
Note: VDC Power Input connector is available as an option and does not come installed
on standard 7710 Controller. Both AC & DC power may be connected at the same time
for power redundancy. See Appendix for VDC power input external cable connectivity
wiring.
Front View
Front Panel
LEDs
LCD Screen
GROUND
LAN
PROTECT
ION
Network
Interface
External
grounding
connection
USB
USB
Interface

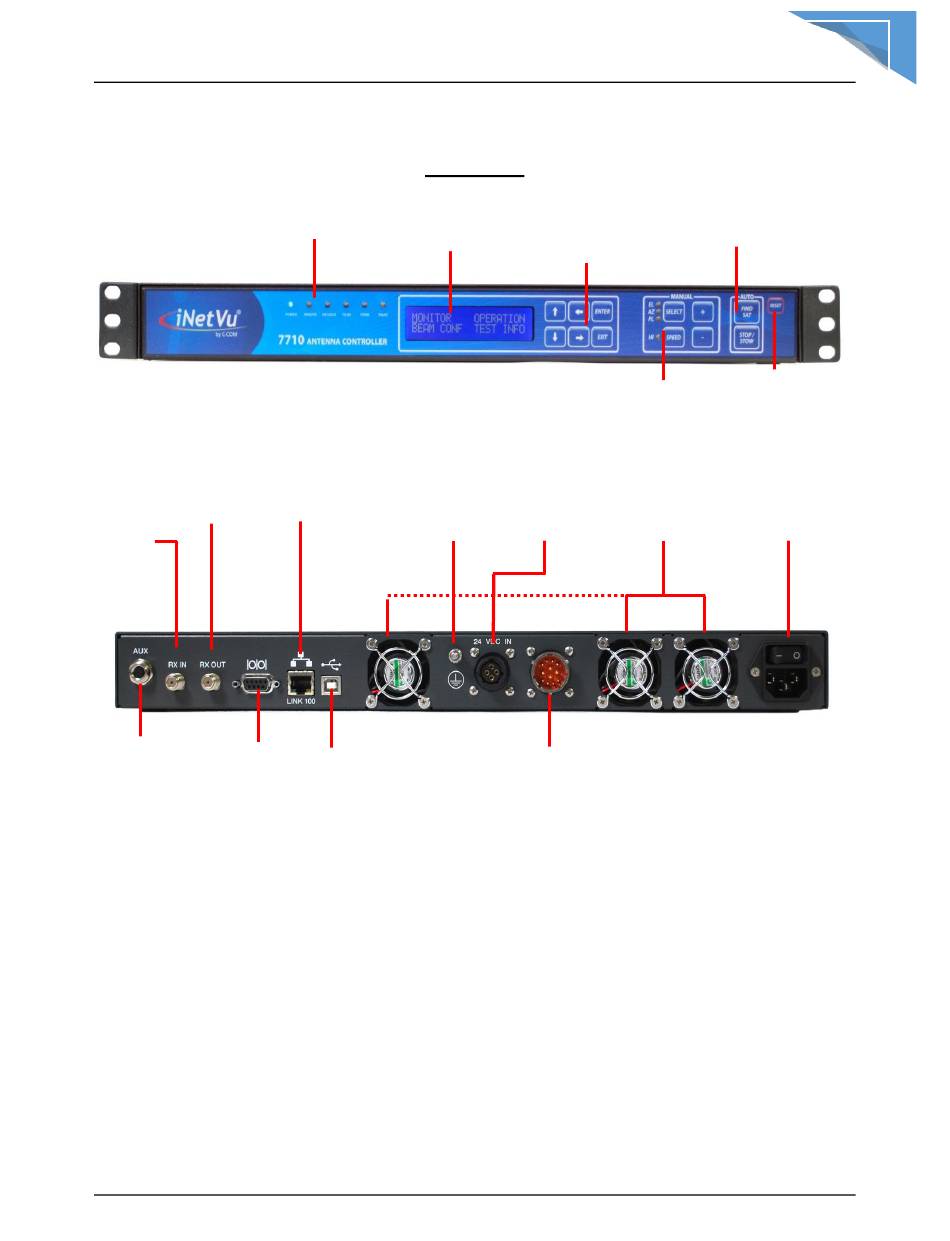

Fig. 3: iNetVu® 7710 Series Front and Rear Panel
iNetVu™ 7710 Controller User Manual
Manual Control
Buttons
Keypad Navigator
24 VDC
COOLING
Power Input
FANS
External VDC
Air Ventilation
Power Input
CONTROL/DATA
&
POWER
Single Interface
for Power and
Data Control
Cable
11
Automatic
Control
Buttons
Reset
Button
POWER INPUT
100-240 VAC
Power Input
and Switch
