C-COM Satellite Systems Inc.
5.2.

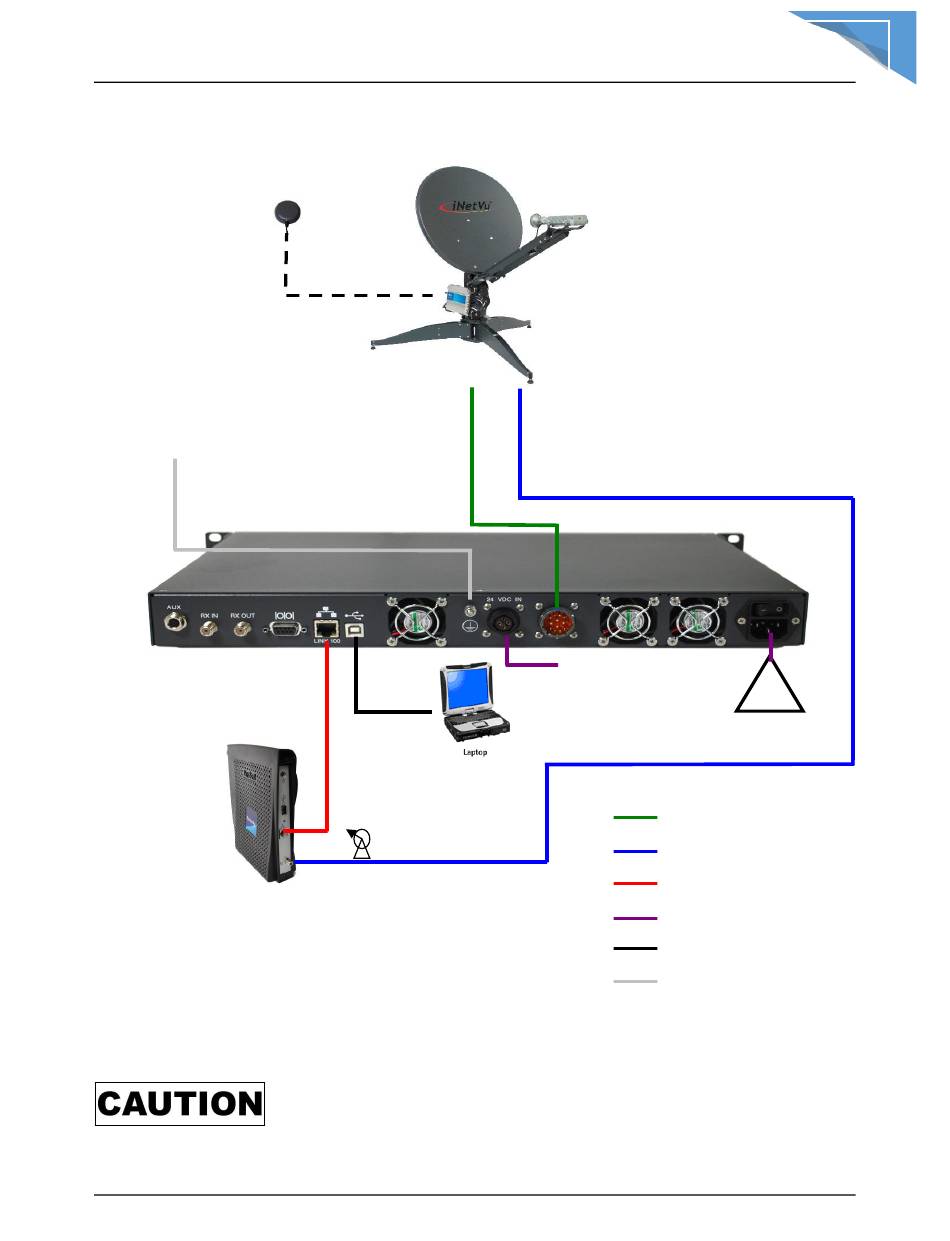

Typical USB Communication Interface
GPS/Glonass
Antenna
*Ground
protection
External
grounding
connection
Network
Cable
COMBINED MOTOR
& DATA CONTROL
CABLE
USB Cable
Satellite Modem / VSAT
Fig. 5:
USB Configuration Interface
Ensure Control Cable, including RX and TX cables are
connected prior to powering on 7710 Controller.
iNetVu™ 7710 Controller User Manual
iNetVu™ Fly-75V
Platform
TX
24 VDC Power
Input (If external
power source
used and or
required)
Combined Motor & Data Control Cable
RG6 Coaxial Cable
Network Cable
Power Cable
USB Cable
* Ground Connection
14
!
100 - 240VAC
