CAPA312 3.5" Board
2.4.17

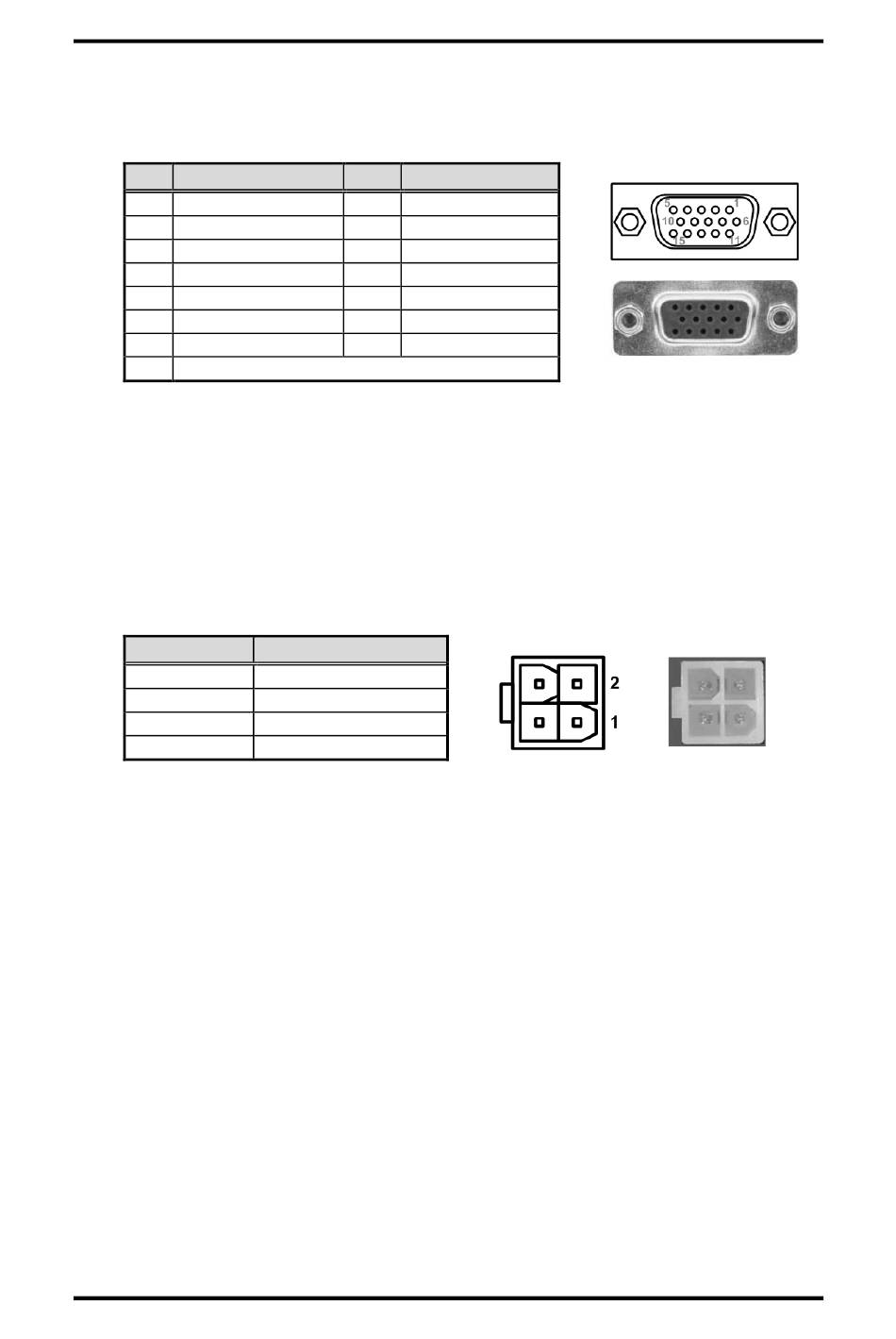

VGA Connector (CN23) (Optional)

This is a standard 15-pin D-Sub connector. It is commonly used for VGA display. This
VGA interface configuration can be configured via software utility.
Pin Signal
1 RED
3 BLUE
5 GND
7 GND
9 CRT_VCC
11 N.C
13 Hsync
15 DDC_CLK
2.4.18

ATX Power Connector (ATX1)

Steady and sufficient power can be supplied to all components on the board by
connecting the power connector. Please make sure all components and devices are
properly installed before connecting the power connector.
The ATX1 is a 4-pin power supply interface. External power supply plug fits into ATX1 in
only one orientation. Properly press down power supply plug until it completely and
firmly fits into this connector. Loose connection may cause system instability.
Pin
1
2
3
4
20
Pin Signal
2 GREEN
4 N.C
6 GND
8 GND
10 GND
12 DDC_DATA
14 Vsync
Signal
GND
GND
+12V
+12V
Board and Pin Assignments
