CAPA312 3.5" Board

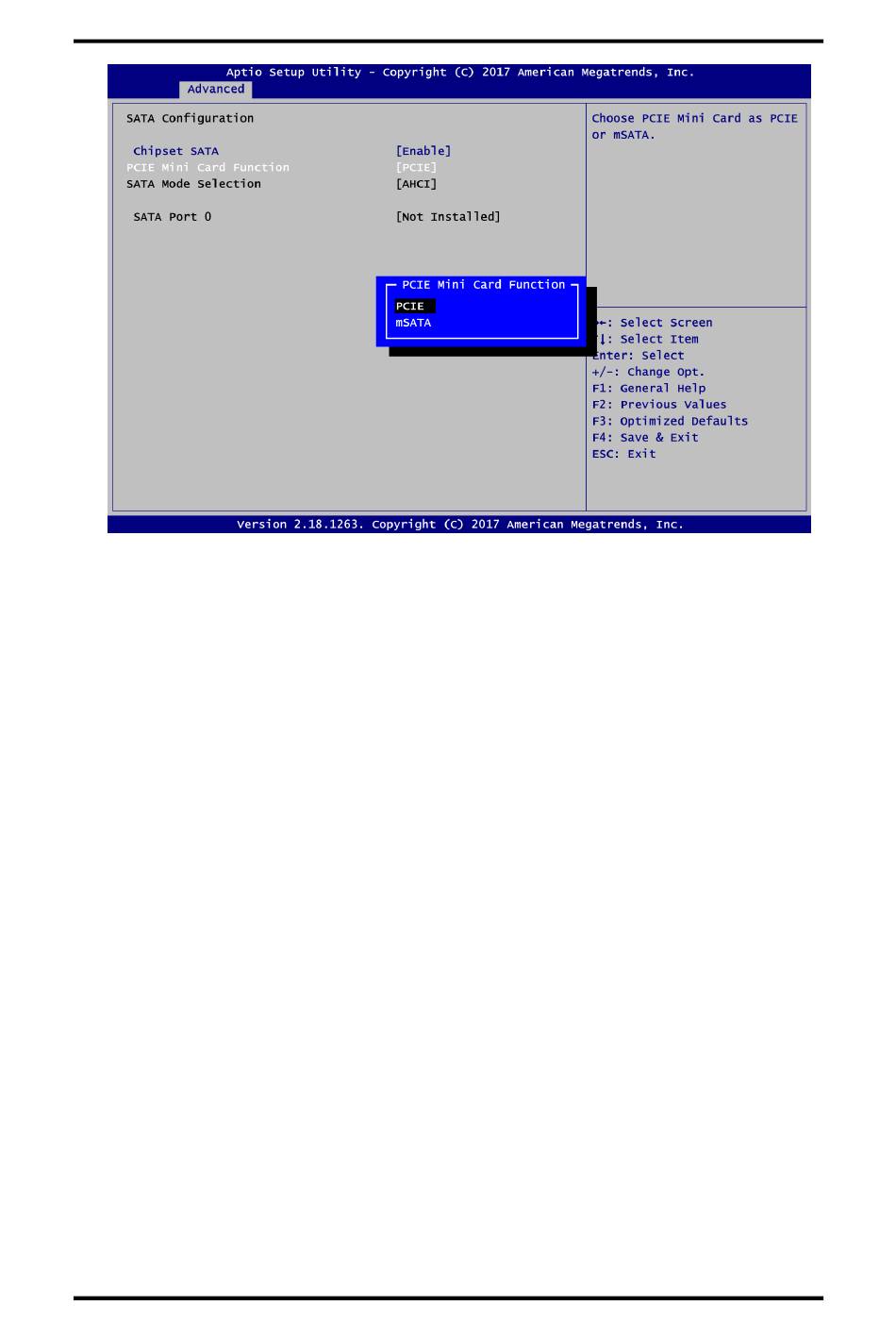

PCIE Mini Card Function

Select PCI-Express Mini Card or mSATA support for SCN3. The default is PCIE. If mSATA

is needed to insert to SCN3 (see section 2.4.22), please change setting to mSATA.

SATA Mode Selection

The SATA mode is AHCI.

AMI BIOS Setup Utility
