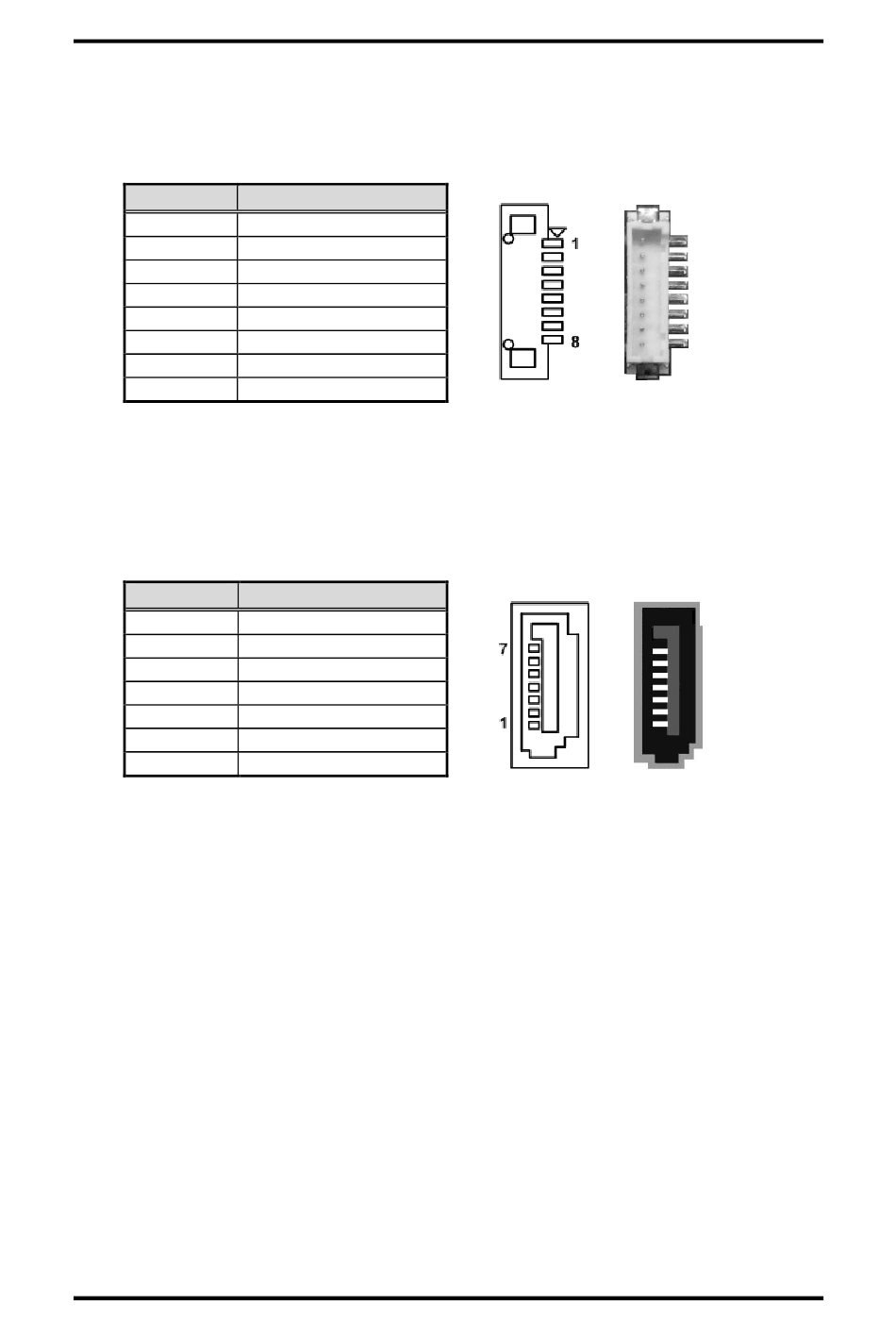

Inverter Connector (CN14)

This is a DF13-8P-1.25C 8-pin (pitch=1.25mm) connector for inverter interface. We
strongly recommend you to use the matching DF13-8P-1.25C connector to avoid
malfunction.
Pin
1
2
3
4
5
6
7
8
2.4.11

SATA Connector (CN15)

This Serial Advanced Technology Attachment (Serial ATA or SATA) connector is for
high-speed SATA interface. It is a computer bus interface for connecting to devices such
as hard disk drive.
Pin
1
2
3
4
5
6
7
Board and Pin Assignments
Signal
VBL1 (+12V level)
VBL1 (+12V level)
VBL2 (+5V level)
VBL_ENABLE
GND
GND
GND
VBL Brightness Control
Signal
GND
SATA_TXP0
SATA_TXN0
GND
SATA_RXN0
SATA_RXP0
GND
