Ethernet ports (ETH 0/0 & 0/1), and SMS ports (SMS-0/0 & 0/1) are not used
Note
when connecting VoIP.
0 1 2 3 8
4 5 6 7 12
A SN10100A with 8 RJ48C type ports enables the connection to T1/E1 lines.
T1/E1 ports are activated by software license; the number of active ports
Note
depends on the licenses purchased.
1. Start with port 0, located at the top and leftmost position. Connect one cable
between this port and the T1/E1 line.
2. Repeat step 1, using the next available port
0 1 2 3
4 5 6 7
16-Port Interface to the PSTN

5.0 Grounding the Equipment Chassis

As a standard safety practice, the chassis of the SN10100A series gateway must be
properly grounded to protect against any contact with an electrical fault condition. It is
recommended that the chassis be connected to an earth ground. If the SN10100A
series gateway is mounted in an equipment rack, then the ground cable must be con-
nected from the ground lug of the SN10100A series gateway ground to the ground bar
of the equipment rack. If more than one SN10100A series gateway is installed in an
equipment rack, each SN10100A series gateway must be grounded directly to the
equipment rack ground bar.
SmartNode 10100A Series Quick Start Guide
9 10 11
MGMT0 ETH0
13 14 15
MGMT1 ETH1

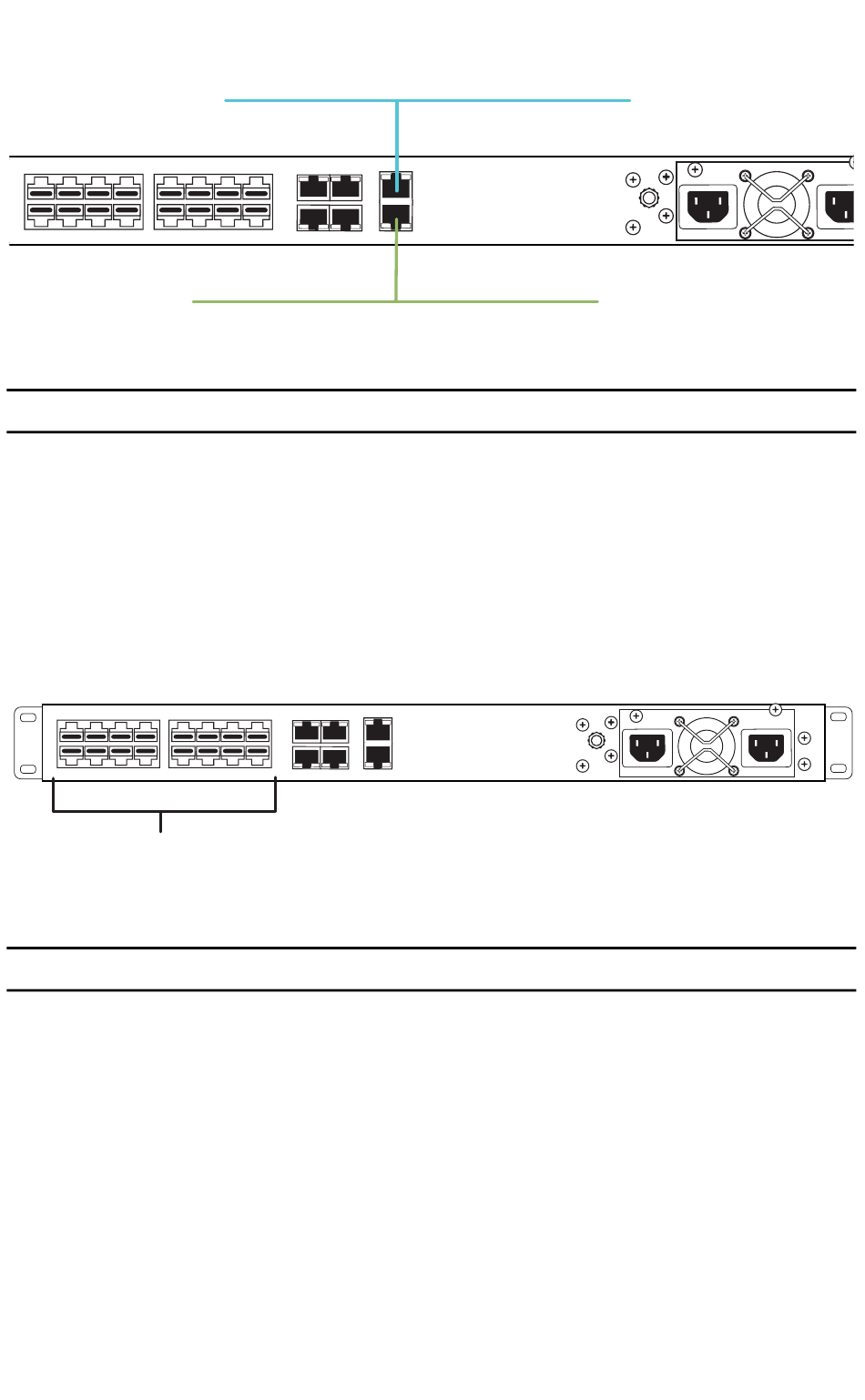

Figure 2.

4.0 Connecting to the PSTN

8 9 10 11
MGMT0 ETH0
12 13 14 15
MGMT1 ETH1
Figure 3.
VoIP Network 1
VOIP0
VOIP1
VoIP Network 2
Connecting the VoIP ports
VOIP0
VOIP1
Port Interface to the PSTN
5
