7.1 Connecting the console serial port
1.
Connect a CAT5 RJ-45 (male-male) cable (supplied with unit) between the COM
port of your computer and the serial port (labeled CONSOLE) of the SN10100A.
2.
If your computer's serial port features a DB9 connector, use the DB9 to RJ-45
adapter supplied with your SN10100A. If your computer's serial port features a
USB connector, you will need to provide a USB to DB9 adapter.
7.2 Connecting the Ethernet management interface
1.
Connect the supplied CAT5 Ethernet cable to the management port labeled
MGMT0 on the rear of the SmartNode 10100A (see
2.
Log into the SmartNode using the specific credentials included on the "Important
Notice" sheet that shipped with your unit. The management port is configured
with a static Class C IP address by default
.
0
1
2
3
8
4
5
6
7
12
8
CONSOLE Port

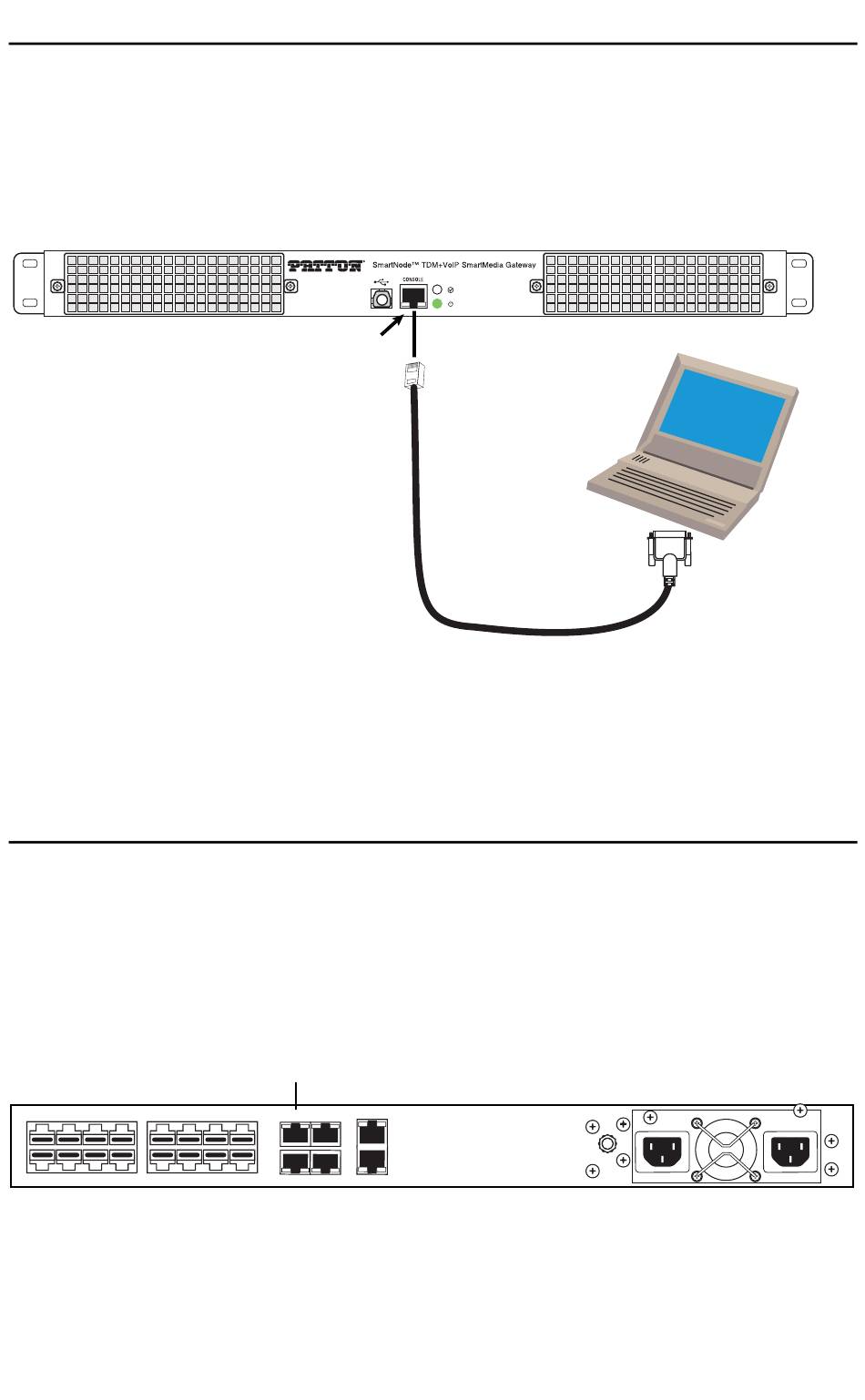

Figure 7.
Connecting the console serial port
Ethernet Management
Port (MGMT0)
9
10 11
MGMT0
ETH0
13
14
15
MGMT1
ETH1
Figure 8.
Connecting the management interface
Serial Terminal (PC)
Note
A Patton Model 16F-561 RJ45 to DB-9 adapter is
included with each SmartNode 10200A device.
VOIP0
VOIP1
SmartNode 10100A Series Quick Start Guide
figure 8
on page 8.
