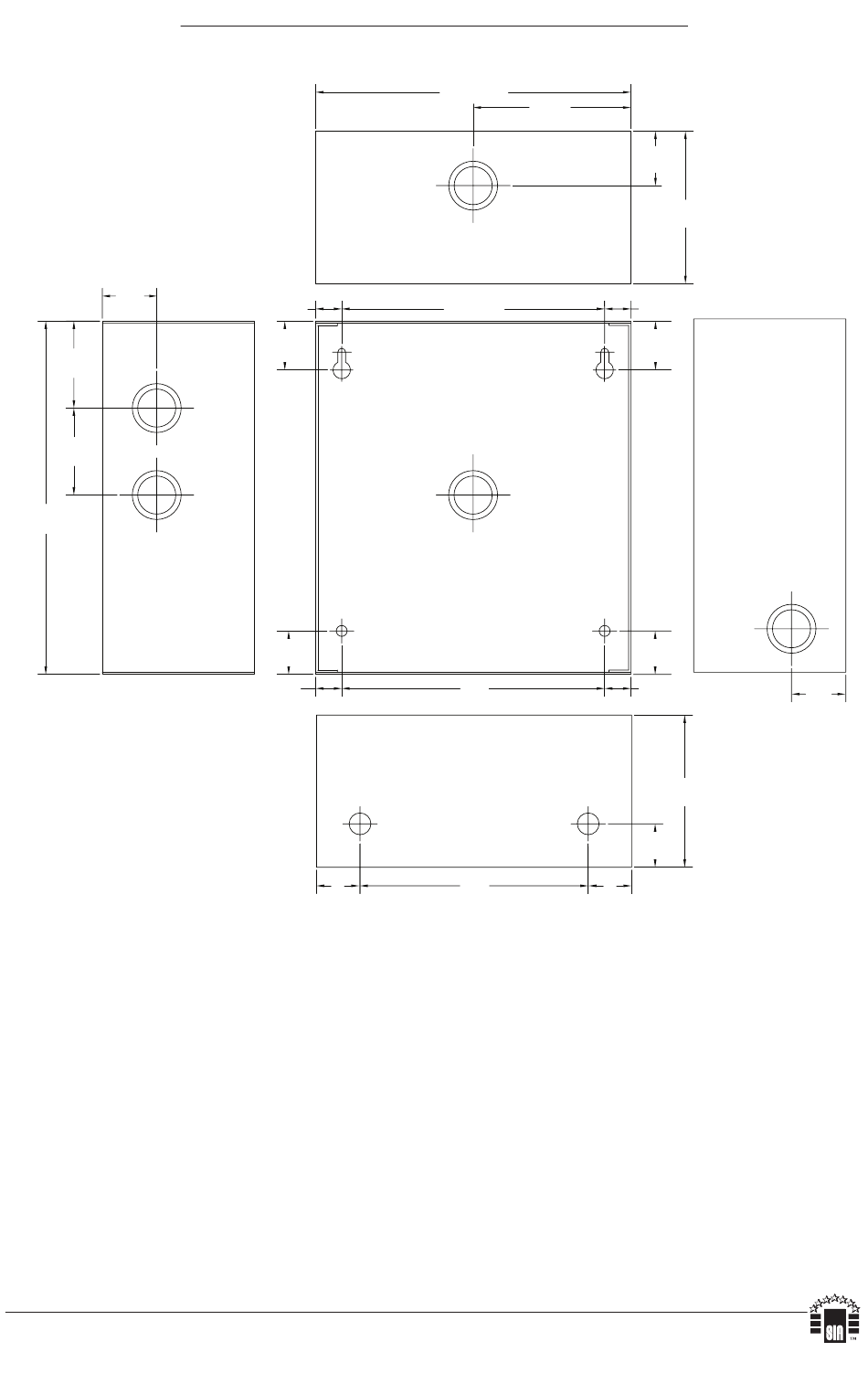

Enclosure Drawing And Dimensions - Altronix STRIKEIT2 Installation Manual

1.25"
(31.75mm)
2"
(50.8mm)
2"
(50.8mm)
8.125"
(206.375mm)
Altronix is not responsible for any typographical errors .
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www .altronix .com | e-mail: info@altronix .com | Lifetime Warranty | Made in U .S .A .
IIStrikeIt2
- 8 -
Enclosure Dimensions (H x W x D approximate):
8 .5" x 7 .5" x 3 .5" (215 .9mm x 190 .5mm x 88 .9mm)
0.6"
(15.24mm)
1.125"
(28.575mm)
1"
(25.4mm)
0.6"
(15.24mm)
1"
(25.4mm)
7.25"
(184.15mm)
3.625"
(184.15mm)
6.05"
(153.67mm)
6.05"
(153.67mm)
5.25"
(133.35mm) (25.4mm)
E11R
1.25"
(31.75mm)
3.5"
(88.9mm)
0.6"
(15.24mm)
1.125"
(28.575mm)
1"
(25.4mm)
0.6"
(15.24mm)
3.5"
(88.9mm)
1"
(25.4mm)
1"
1.25"
(31.75mm)
