Altronix STRIKEIT2 Installation Manual page 6

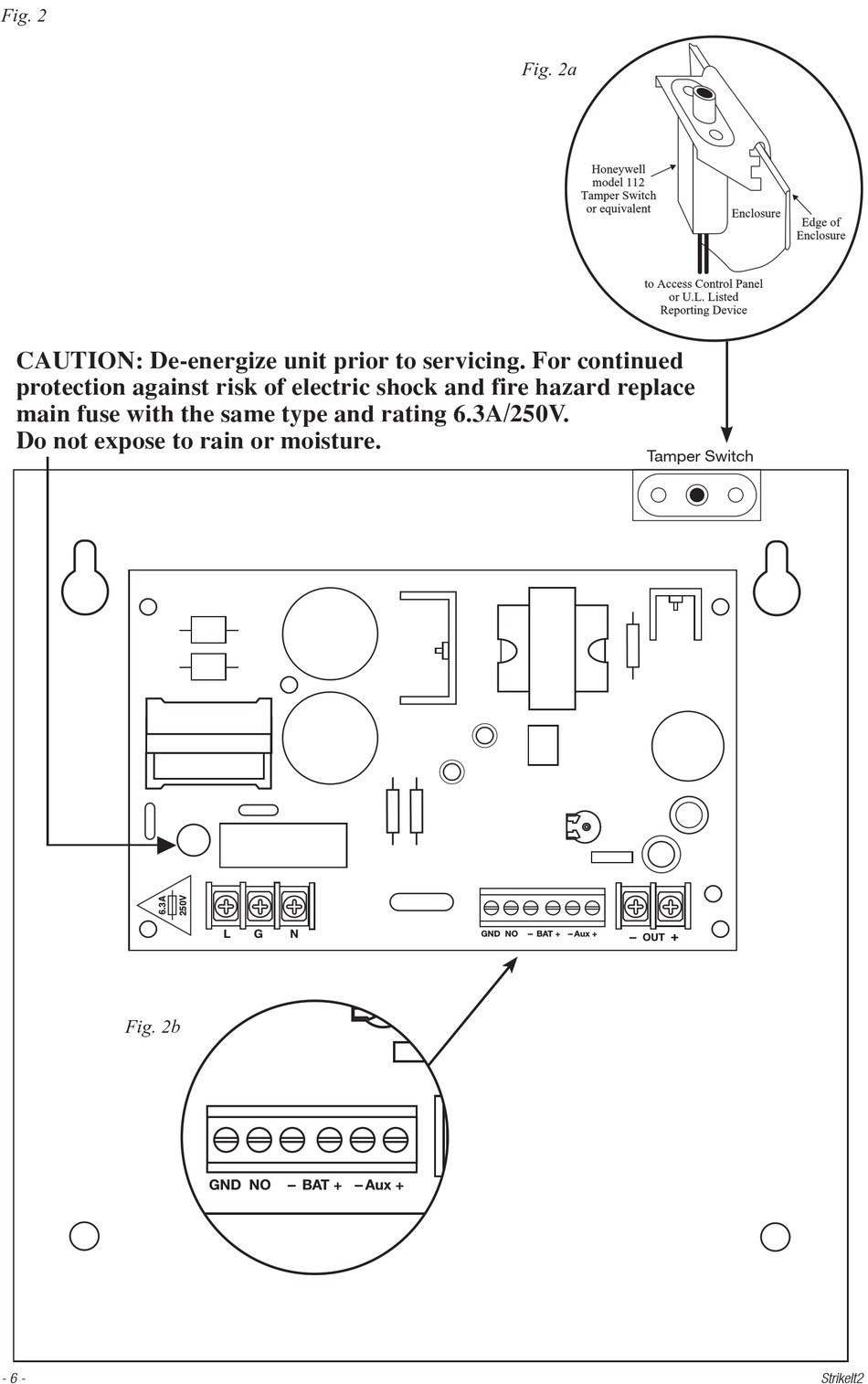

Fig. 2
CAUTION: De-energize unit prior to servicing. For continued
protection against risk of electric shock and fire hazard replace
main fuse with the same type and rating 6.3A/250V.
Do not expose to rain or moisture.
Fig. 2b
- 6 -
L G N
GND NO -- BAT + -- Aux +
Fig. 2a
Honeywell
model 112
Tamper Switch
or equivalent
Tamper Switch
GND NO -- BAT + -- Aux +
+
--- OUT
Enclosure
to Access Control Panel
or U.L. Listed
Reporting Device
Tamper Switch
+
--- OUT
Edge of
Enclosure
StrikeIt2
