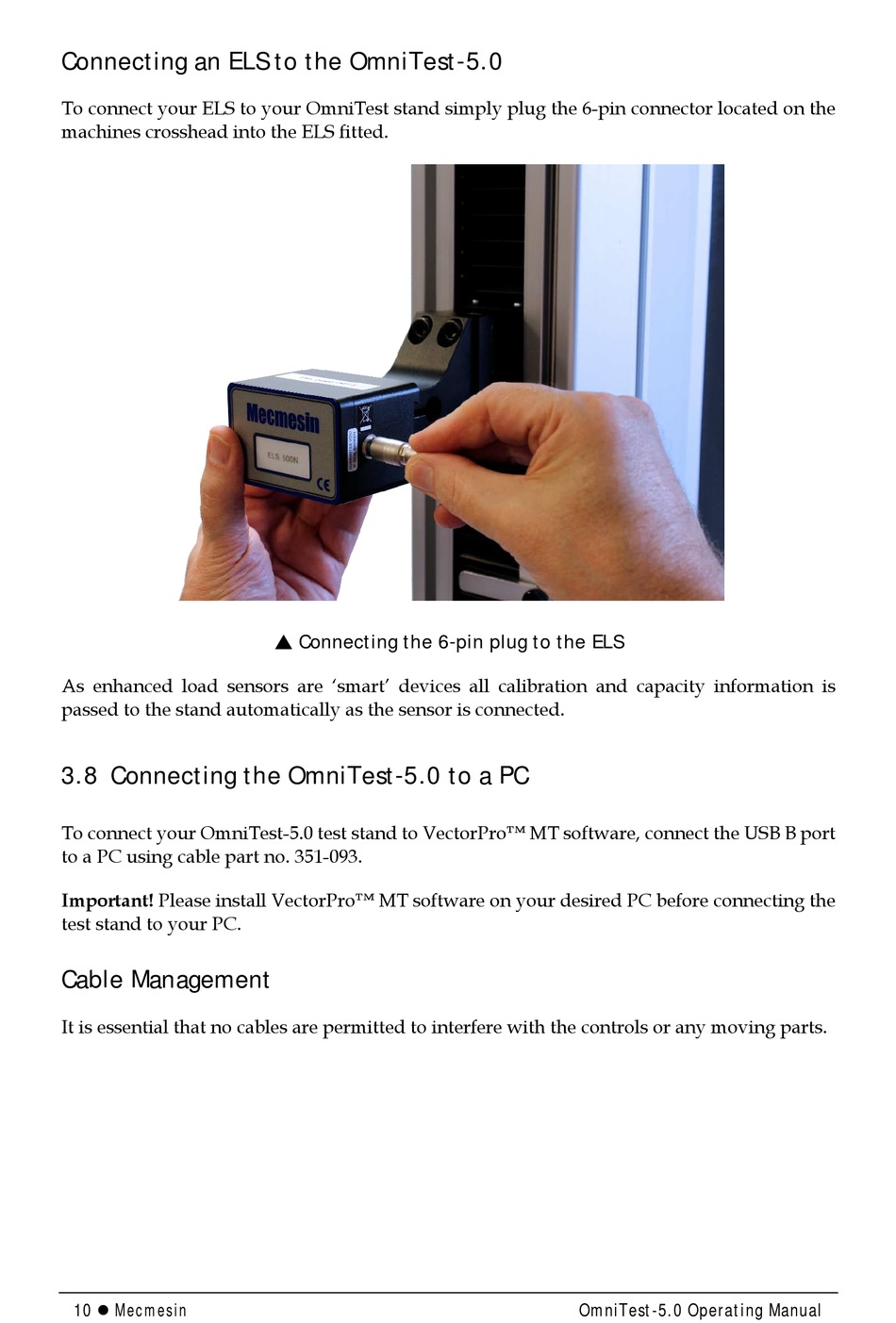

Connecting an ELS to the OmniTest-5.0
To connect your ELS to your OmniTest stand simply plug the 6-pin connector located on the
machines crosshead into the ELS fitted.
Connecting the 6-pin plug to the ELS
As enhanced load sensors are 'smart' devices all calibration and capacity information is
passed to the stand automatically as the sensor is connected.
3.8 Connecting the OmniTest-5.0 to a PC
To connect your OmniTest-5.0 test stand to VectorPro™ MT software, connect the USB B port
to a PC using cable part no. 351-093.
Important! Please install VectorPro™ MT software on your desired PC before connecting the
test stand to your PC.
Cable Management
It is essential that no cables are permitted to interfere with the controls or any moving parts.
10 Mecmesin
OmniTest-5.0 Operating Manual
