Summary of Contents for Elumen8 ELUM107

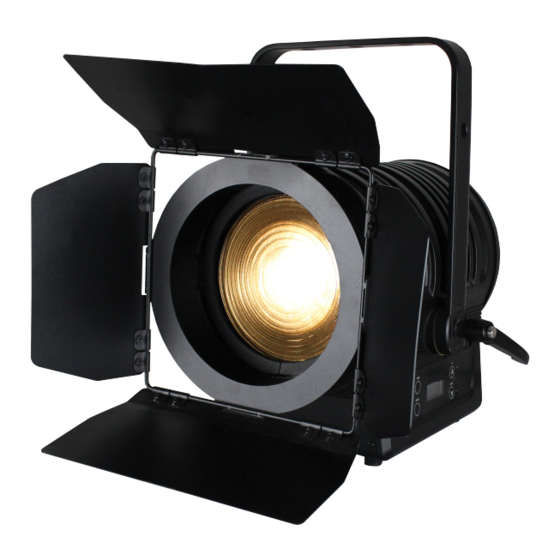

- Page 1 MP 120 LED Fresnel WW User Manual Order codes: ELUM107 - Black Housing ELUM107A - White Housing...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •... - Page 3 Fuse T2A 250V Dimensions 371 x 301 x 450mm (with bracket) 19° 37° 298 x 245 x 450mm (without bracket) Weight 8.6kg Order code ELUM107 - Black Housing ELUM107A - White Housing 450mm 301mm 318mm 245mm 36mm 215mm 147mm 185mm www.prolight.co.uk...
-
Page 4: Technical Specifications
Technical specifications DMX INPUTS DMX OUTPUTS POWER INPUT: FUSE: POWER OUTPUT: 100-240V~50/60Hz T2A 250V 100-240V~50/60Hz 01 - Earth point 06 - 3-Pin DMX output In the box: 1 x fixture, 02 - LCD display 07 - 5-Pin DMX input 11 - Fuse T3A 250V 1 x barn door 03 - Function buttons 08 - 5-Pin DMX output... -
Page 5: Operating Instructions
Operating instructions DMX MODE ADDR:001 DMX address setting DMX MODE DMX MODE ADDR:512 CHANNEL CHANNEL DMX channel setting CHANNEL CHANNEL SLAVE MODE DIMCURVE Linear DIMCURVE S-Curve DIMCURVE Dimmer Curves DIMCURVE I-Square DIMCURVE Square DIMMODE MENU LED/Halogen selection DIMMODE DIMMODE HALOGEN DMX FAIL Hold last command HOLD... -
Page 6: Master/Slave Mode
Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. -
Page 7: Fixture Temperature
Operating instructions Dimming curves To access the units dimmer curves, press the “MENU” button to show “DIMCURVE” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the dimming curve required. “Linear” - LELinear dimming curve “S-Curve”... - Page 8 Operating instructions Factory reset: To access factory reset, press the “MENU” button on the rear of the unit to show “FacReset” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select “Yes”. Press the “ENTER” button to confirm the setting. The fixture will reset to factory default settings. To exit out of any of the above options, press the “MENU”...
-
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Pin Configuration Do not connect the cables shield conductor to the ground lug or 3-Pin 5-Pin allow the shield conductor to come in contact with the XLRs Pin 1 - Ground outer casing. - Page 11 Multiple fixture power linking Power linking: This fixture provides power linking via the power output on the rear allowing multiple units to be conneted together. The maximum number of fixtures that can be connected is 14 fixtures @ 240V or 7 fixtures @ 120V (including the first fixture). After the maximum number of fixtures are connected a new power run will need to be started.
-
Page 12: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
