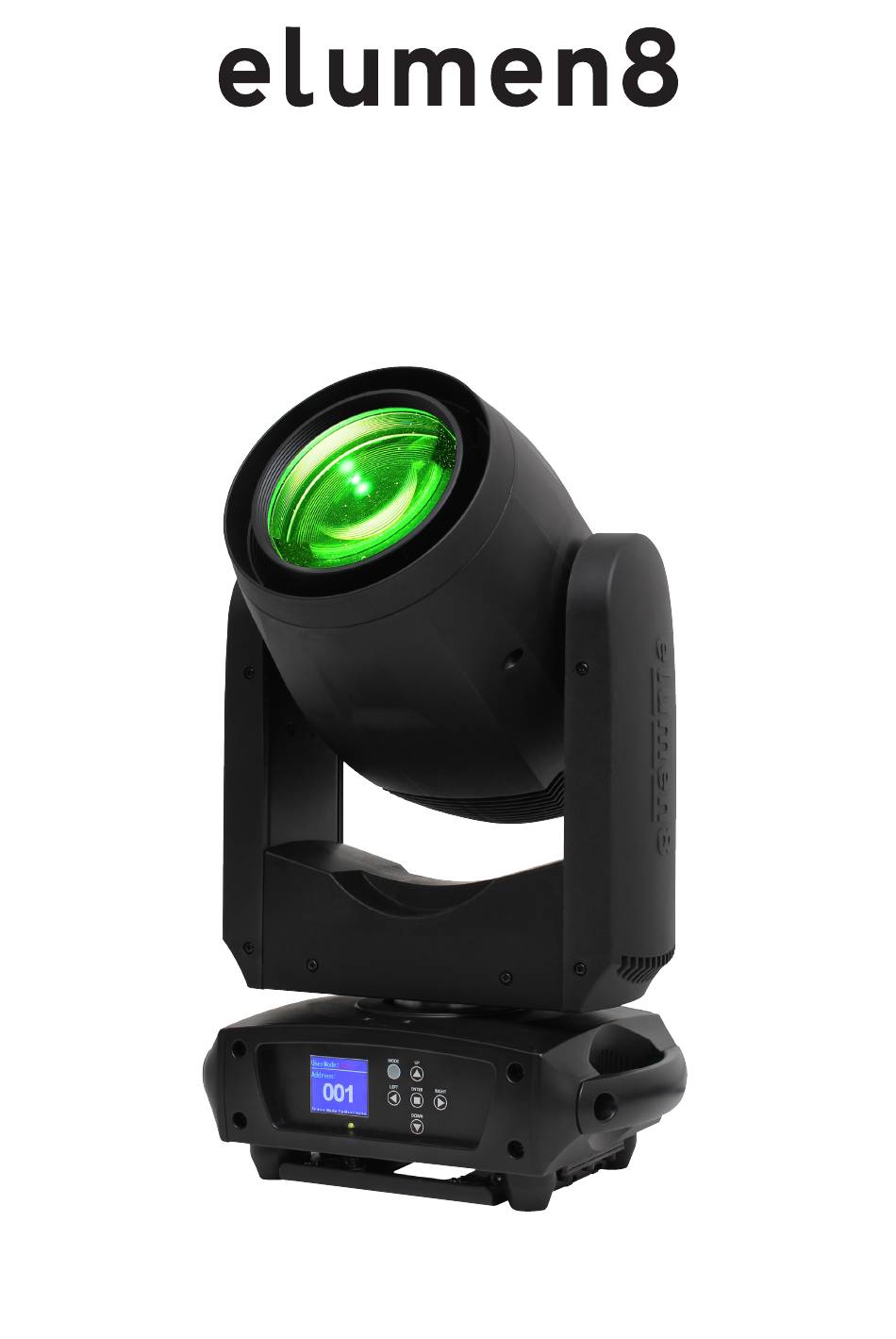

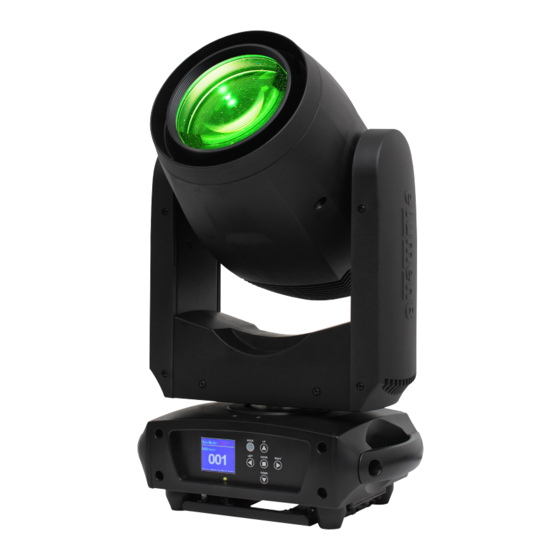

  • Page 1 Evora 600 Beam User Manual Order codes: ELUM026...

  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 3 To avoid damage to internal parts ie. optics, colour filters, gobos, prisms, frost filters, iris, shutters, motors, belts, wiring or LEDs never expose the front lens to direct sunlight, lighting fixtures or lasers even when the fixture is not in use. www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 4 1986 1117 • 6 push button menu with 1.8” LCD display 99.1 55.7 • Display battery backup for offline configuration • PowerCON input/output 3° • 5-Pin XLR input/output • EtherCON input/output • Fan cooled www.prolight.co.uk Evora 600 Beam User Manual...

  • Page 5: Technical Specifications

    Technical specifications 180mm 98mm 274mm 176mm 242mm 280mm 270mm www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 6 1 x power cable 03 - 5-Pin DMX input 07 - PowerCON input 09 - Fuse T2A 250V & 1 x user manual 04 - 5-Pin DMX output 08 - PowerCON output 10 - Fans www.prolight.co.uk Evora 600 Beam User Manual...

  • Page 7: Installation

    The installation should be checked annually by a qualified person. The eLumen8 Evora 600 Beam can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface.
  • Page 8 4. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the fixture and around the truss. www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 9 Pan/Tilt Lock Mechanism Pan mechanism lock and release every 45° LOCKED UNLOCKED Tilt mechanism lock and release every 45° LOCKED UNLOCKED www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 10 The LCD control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “Software up” followed by “eLumen8 Evora 600 Beam” and “Motor Reset Please Wait...”. The fixture will then return to its home screen.
  • Page 11 (defective motor or a defective motor IC drive on the main PCB). Temp This message will appear if the sensor has failed or the fixtures temperature is too hot. www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 12 Pan Inverse Pan Inverse Setting Tilt Inverse Tilt Inverse Setting Function Status Pan Degree Pan Degree Setting Correction P/T Auto Correction Setting Speed 1 Speed 2 P/T Speed P/T Speed Setting Speed 3 Speed 4 www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 13 Temp. C/F Temperature Setting Fahrenheit Function Gamma Gamma Brightness Setting 900Hz 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz 1500Hz Frequency LED Refresh Rate Setting 2500Hz 4000Hz 5000Hz 10kHz 15kHz 20kHz 25kHz PAIR W-DMX W-DMX Setting RESET www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 14 Time PIN Clear Time PIN 060 (Clear Total) Clear Last Time Information Clear Last (PIN Required) R: xxx°C Temp. Info G: xxx°C Temperature Information B: xxx°C Fan1: xxxxRPM Fan Speed Fan Speed Information Fan2: xxxxRPM www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 15 Ramp Effect Rise time (ms) Down time (ms) Rise time (ms) Down time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 16 060-063 Fixed gobo 15 064-073 Fixed gobo 1 shake (slow-fast) 074-083 Fixed gobo 2 shake (slow-fast) 084-093 Fixed gobo 3 shake (slow-fast) 094-103 Fixed gobo 4 shake (slow-fast) 104-113 Fixed gobo 5 shake (slow-fast) www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 17 LED on 140-181 Ramp up (slow-fast) 182-189 LED on 190-231 Ramp down (slow-fast) 232-239 LED on 240-247 Random strobe (slow-fast) 248-255 LED on 000-255 Master dimmer (0-100%) – 000-255 Dimmer fine (0-100%) 000-255 Focus www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 18 No function 110-119 Enable BL.O whilst gobo change 120-129 Disable BL.O whilst gobo change 130-199 No function 200-209 Reset P/T motors only (hold 5s) 210-219 No function 220-229 Reset all (hold 5s) 230-255 No function www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 19 Operating instructions Static gobos: Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 8 Gobo 9 Gobo 10 Gobo 11 Gobo 12 Gobo 13 Gobo 14 www.prolight.co.uk Evora 600 Beam User Manual...

  • Page 20: Dmx Setup

    Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 21 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Evora 600 Beam User Manual...
  • Page 22 Please note: Caution should be used when power linking other fixtures to the Evora 600 Beam as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.
  • Page 23 Operating instructions www.prolight.co.uk Evora 600 Beam User Manual...

  • Page 24: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Evora 600 Beam User Manual...
