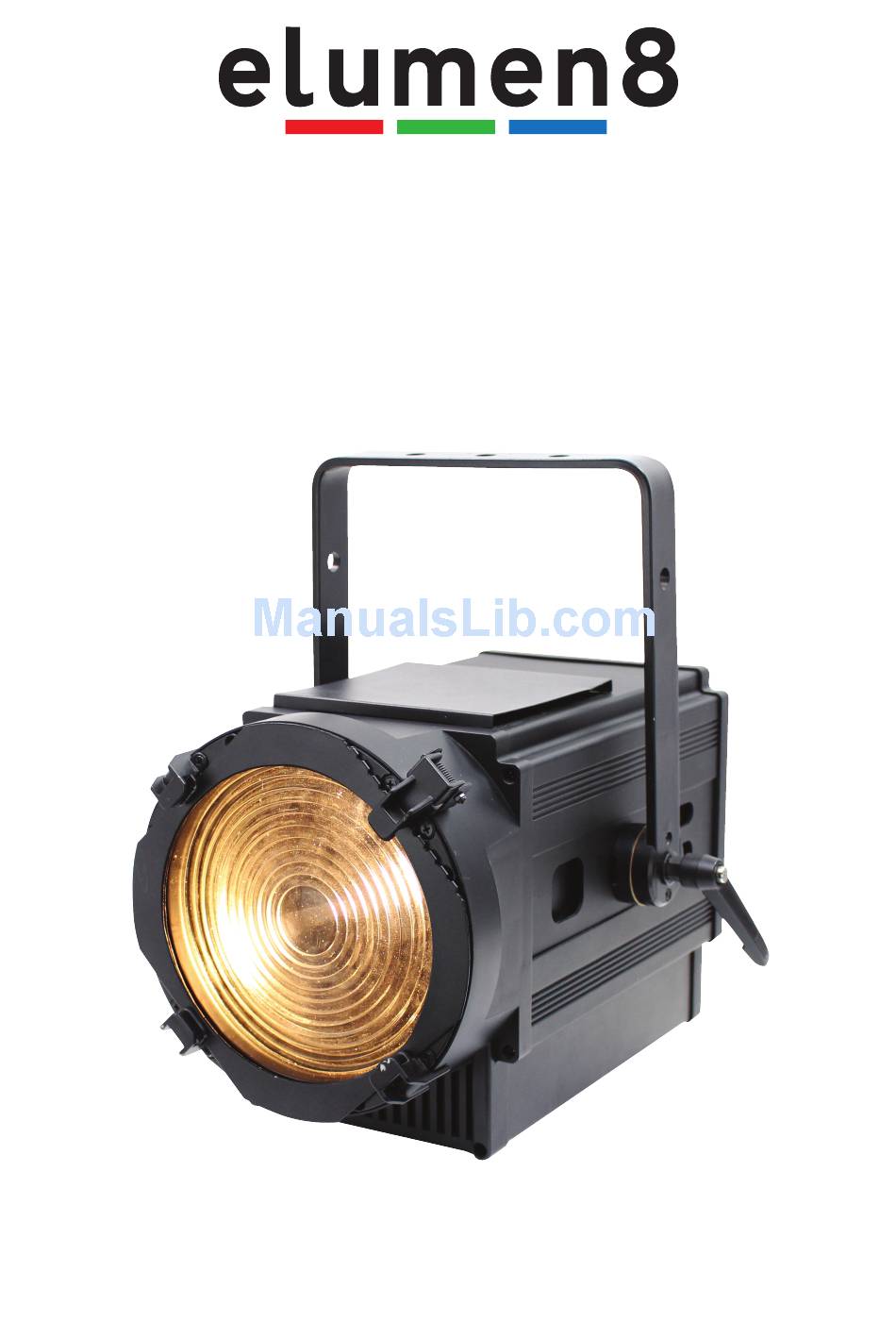

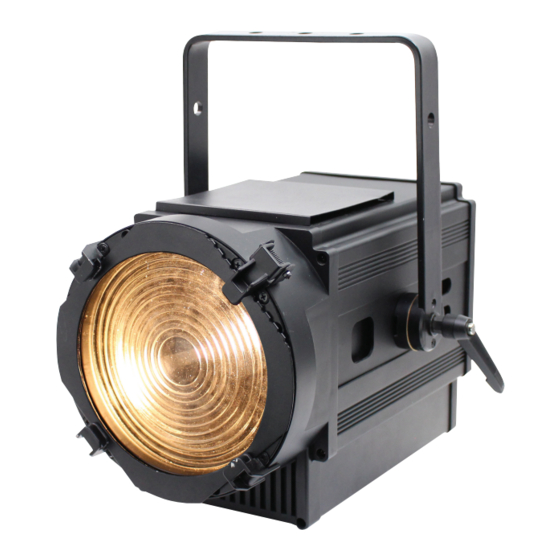

- Page 1 TZ250 LED Zoom Fresnel WW User Manual Order codes: ELUM108...
-
Page 2: Safety Advice
• This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 110~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: Two years from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk TZ250 LED Zoom Fresnel WW User Manual... - Page 3 35000 15600 8750 5600 Specifications TZ250 LED Zoom Fresnel 45° - Lux 30800 7700 3420 1930 1230 Power consumption 260W Power supply 110~240V, 50/60Hz 13° 45° Dimensions 399 x 336 x 420mm Weight 8.1kg Order code ELUM108 420mm 336mm 458mm www.prolight.co.uk TZ250 LED Zoom Fresnel WW User Manual...
-
Page 4: Technical Specifications
DMX OUTPUT FUSE: T3A 250V POWER OUT 01 - Earth point 06 - 3-Pin DMX output 02 - LCD display 07 - 5-Pin DMX input 11 - Fuse T3A 250V In the box: 1 x fixture 03 - Function buttons 08 - 5-Pin DMX output 12 - Barn doors 1 x PowerCON cable 04 - Function knobs 09 - PowerCON input 13 - Hanging bracket & 1 x user manual 05 - 3-Pin DMX input 10 - PowerCON output 14 - Hanging bracket adjustable knob www.prolight.co.uk TZ250 LED Zoom Fresnel WW User Manual... -
Page 5: Signal Present
High Fan.Set Backlight MENU Backlight Backlight (02 mins - 60 mins) Backlight Dim.Curve Linear Dim.Curve S-Curve Dim.Curve Dimmer Curves Dim.Curve INV.Square Dim.Curve Square Lamp Behaviour LED/Halogen selection Lamp Behaviour Lamp Behaviour Halogen www.prolight.co.uk TZ250 LED Zoom Fresnel WW User Manual... - Page 6 Operating instructions Fixture Time Temp.Info Error.Info Model.Info Elumen8 MENU CONT. Software.V Panel.Ctrl Panel.Ctrl Focus:000 Dim:000 Brightness/ Panel.Ctrl beam angle Panel.Ctrl Panel.Ctrl Focus:255 Dim:255 Calibrate Focus:000 Calibrate focus Calibrate Calibrate Focus:255 Reset.Motor Focus www.prolight.co.uk TZ250 LED Zoom Fresnel WW User Manual...
- Page 7 000-255 Focus (8 bit) 000-255 Master dimmer (0-100%) Manual dimming/focus mode: To access the manual dimming/focus mode, press the “MENU” button on the rear of the unit to show “Panel.Ctrl” on the LCD display. The unit is now in manual dimming/focus mode. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the focus from “000” - “255”. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the brightness from “000” - “255”. Alternatively you can access this mode by pressing either of the “DIMMING” or “FOCUS” knobs. Press the “DIMMING” knob and turn to set the focus from “000” - “255”. Press the “ENTER” button to confirm the setting. Repeat for the “FOCUS” knob. (000 = LED off, 255 = LED at full brightness). To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk TZ250 LED Zoom Fresnel WW User Manual...
- Page 8 Operating instructions Focus calibration: To access focus calibration, press the “MENU” button on the rear of the unit to show “Calibrate” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the focus from “000” - “255”. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Dimming curves To access the units dimmer curves, press the “MENU” button on the rear of the unit to show “Dim.Curve” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the dimming curve required. “Linear” - LELinear dimming curve “Square” - LED Square dimming curve “INV.Square” - LED Inverse Square dimming curve “S-Curve” - LED S-Curve dimming curve Press the “ENTER” button to confirm the setting. To choose between Halogen and LED dimmer curves, press the “MENU” button on the rear of the unit to show “Lamp Behaviour” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the dimming curve mode required. “LED” - LED dimming curves “Halogen” - Halogen dimming curves To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk TZ250 LED Zoom Fresnel WW User Manual...
-
Page 9: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk TZ250 LED Zoom Fresnel WW User Manual... -
Page 10: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk TZ250 LED Zoom Fresnel WW User Manual... -
Page 11: Weee Notice
Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk TZ250 LED Zoom Fresnel WW User Manual... - Page 12 TZ250 LED Zoom Fresnel WW User Manual...
