- Page 1 Evora 850 Zoom Spot User Manual Order codes: ELUM025...
-
Page 2: Safety Advice
Pack the unit securely (preferably in the Incorrect installation or use can cause serious damage original packing material), and return it to your Prolight to people and/or property. dealer for service. www.prolight.co.uk Evora 850 Zoom Spot User Manual... - Page 3 To avoid damage to internal parts ie. optics, colour filters, gobos, prisms, frost filters, iris, shutters, motors, belts, wiring or LEDs never expose the front lens to direct sunlight, lighting fixtures or lasers even when the fixture is not in use. www.prolight.co.uk Evora 850 Zoom Spot User Manual...

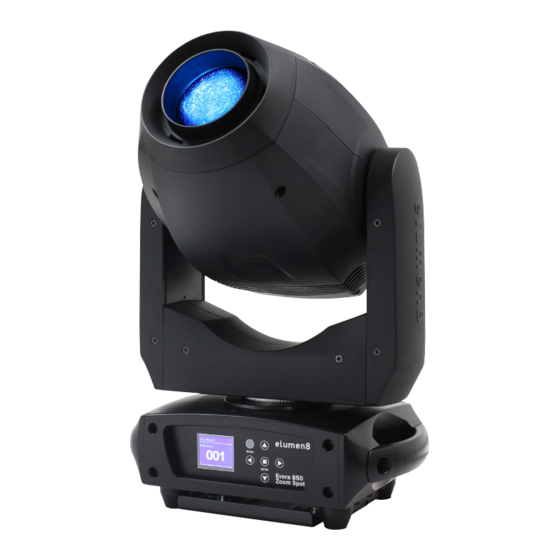

- Page 4 Product overview & technical specifications Evora 850 Zoom Spot Evora 850 Zoom Spot boasts a comprehensive list of features all contained in a compact, lightweight housing. The 200W LED generates an impressive output creating perfectly focused gobo projections as well as superb aerial effects.
-
Page 5: Technical Specifications
Technical specifications 180mm 87mm 285mm 176mm 242mm 295mm 290mm www.prolight.co.uk Evora 850 Zoom Spot User Manual... - Page 6 1 x power cable 03 - 5-Pin DMX input 07 - PowerCON input 09 - Fuse T3A 250V & 1 x user manual 04 - 5-Pin DMX output 08 - PowerCON output 10 - Fans www.prolight.co.uk Evora 850 Zoom Spot User Manual...
-
Page 7: Installation
The installation should be checked annually by a qualified person. The eLumen8 Evora 850 Zoom Spot can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface. - Page 8 4. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the fixture and around the truss. www.prolight.co.uk Evora 850 Zoom Spot User Manual...
- Page 9 The LCD control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “Software up” followed by “eLumen8 Evora 850 Zoom Spot” and “Motor Reset Please Wait...”. The fixture will then return to its home screen.
- Page 10 Fan 2 is not working correctly. This message will appear if the fan has failed or there is something Fan2 blocking the fan blades spinning. Temp This message will appear if the sensor has failed or the fixtures temperature is too hot. www.prolight.co.uk Evora 850 Zoom Spot User Manual...
- Page 11 Manual Control Mode DimmerFine Zoom ZoomFine Focus Prism1 Prism1Rot Prism1Fine Prism2 Prism2Rot Prism2Fine Hold Blackout DMX Fail DMX Fail Setting Program Function Status Manual Sound State Sound Setting Sound Sense 000-100 (085) Sound Sensitivity Setting www.prolight.co.uk Evora 850 Zoom Spot User Manual...
- Page 12 Gamma Brightness Setting 900Hz 1000Hz 1100Hz 1200Hz Frequency LED Refresh Rate Setting 1300Hz 1400Hz 1500Hz 2500Hz Auto Fan Set Head Fan High Fan Speed Setting LCD. Set Backlight 02M-60M (05M) LCD Backlight Setting www.prolight.co.uk Evora 850 Zoom Spot User Manual...
- Page 13 Total Usage Time Total Usage Time Last Time xxxH Since Last Clear Information Time. Info 050 (Clear Last) Time PIN Clear Time PIN 060 (Clear Total) Clear Last Time Clear Last (PIN Required) www.prolight.co.uk Evora 850 Zoom Spot User Manual...
- Page 14 Ramp Effect Rise time (ms) Down time (ms) Rise time (ms) Down time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 www.prolight.co.uk Evora 850 Zoom Spot User Manual...
- Page 15 Gobo 3 shake (slow-fast) 141-155 Gobo 4 shake (slow-fast) 156-170 Gobo 5 shake (slow-fast) 171-185 Gobo 6 shake (slow-fast) 186-192 Open 193-223 Gobo wheel scroll CW (slow-fast) Gobo scroll stop 225-255 Gobo wheel scroll CCW (fast-slow) www.prolight.co.uk Evora 850 Zoom Spot User Manual...
- Page 16 Pulse strobe (slow-fast) 160-191 LED on 192-223 Random strobe (slow-fast) 224-255 LED on 000-255 Dimmer (0-100%) – 000-255 Dimmer fine (16 bit) 000-255 Zoom (narrow-wide) – 000-255 Zoom fine (16 bit) 000-255 Focus www.prolight.co.uk Evora 850 Zoom Spot User Manual...
- Page 17 Invert tilt on (hold 3s) 056-065 Invert tilt off (hold 5s) 066-205 No function 206-215 Reset pan/tilt (hold 3s) 216-225 Reset head only (hold 3s) 226-235 Reset all motors (hold 3s) 236-255 No function www.prolight.co.uk Evora 850 Zoom Spot User Manual...
- Page 18 Rotating gobos: Gobo size: 22.9mmØ Image size: 19mmØ Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Static gobos: Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 www.prolight.co.uk Evora 850 Zoom Spot User Manual...
-
Page 19: Dmx Setup
3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Evora 850 Zoom Spot User Manual... - Page 20 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Evora 850 Zoom Spot User Manual...
- Page 21 Please note: Caution should be used when power linking other fixtures to the Evora 850 Zoom Spot as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.
- Page 22 Evora 850 Zoom Spot User Manual...
- Page 23 Evora 850 Zoom Spot User Manual...
-
Page 24: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Evora 850 Zoom Spot User Manual...
