Titan Beam T3
User Manual
Order codes: ELUM416

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Titan Beam T3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elumen8 Titan Beam T3

Summary of Contents for Elumen8 Titan Beam T3

  • Page 1 Titan Beam T3 User Manual Order codes: ELUM416...

  • Page 2: Safety Advice

    • Only use fuses of same type and rating. to people and/or property. • We recommend this fixture should be serviced at least once every 3 months to prevent build-up of dust, dirt and debris that could affect the fixtures operation. www.prolight.co.uk Titan Beam T3 User Manual...

  • Page 3: Ip Rating Information

    NOT be subject to any warranty claims, parts or repairs. Please ENSURE all connections are sealed with the rubber caps if provided and the correct cables are used and connected correctly to prevent dust and/or water ingress, condensation and/or corrosion. www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 4 This fixture emits intense UV radiation, which is harmful to the eyes and skin. The intense luminescence of the lamp can cause severe damage to the retina. NEVER operate this fixture with any of the protective casing removed. www.prolight.co.uk Titan Beam T3 User Manual...

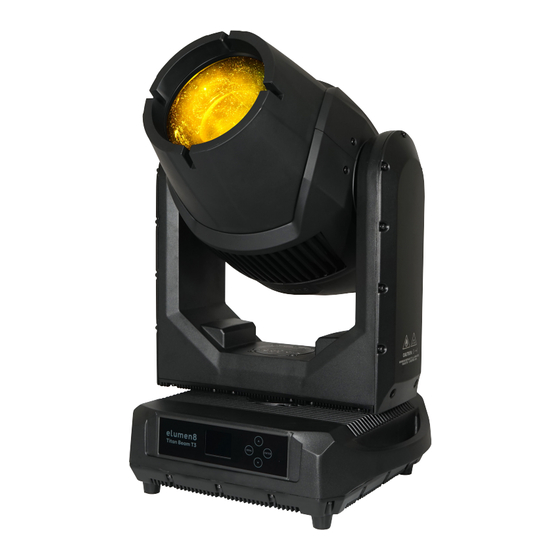

  • Page 5 Product overview & technical specifications Titan Beam T3 Titan Beam T3 is an IP65 rated fixture with a robust housing IP65 specifically designed for wet, dusty and sandy conditions. Designed RATED for festival stages, large concerts and high-capacity venues the fixture generates an incredibly sharp beam of light that makes it perfect for mid-air effects.

  • Page 6: Technical Specifications

    Technical specifications 250mm 140mm 360mm 330mm 402mm 425mm www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 7 07 - PowerCON TRUE1 output 1 x fixture, 02 - Function buttons 05 - Condensation valve 08 - Fans 2 x omega clamps 03 - 5-Pin DMX output 06 - PowerCON TRUE1 input & 1 x power cable www.prolight.co.uk Titan Beam T3 User Manual...

  • Page 8: Installation

    The installation should be checked annually by a qualified person. The Elumen8 Titan Beam T3 can be operated where the base of the fixture is horizontally orientated, this includes standing the fixture upright on a flat, level surface or hanging the fixture upside down.
  • Page 9 4. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the fixture and around the truss. www.prolight.co.uk Titan Beam T3 User Manual...

  • Page 10: Lamp Replacement

    Make sure all covers/casings are replaced/secured before operating the fixture to prevent risk and/or damage to the eyes retina. Only use GENUINE Osram® Lamps. Other branded lamps will cause damage and will void the fixtures warranty. Discharge Lamp Installation: www.prolight.co.uk Titan Beam T3 User Manual...

  • Page 11: Changing The Lamp

    9. Re-insert the lamp cover (2) and tighten the 4 screws (1) on the lamp cover. 10. Connect the fixture to the mains. 9. Reset the ‘Lamp Hours’ in the fixtures menu. (See page 23 ‘Lamp Hours Reset’ for instructions on how to clear the lamp hours.) www.prolight.co.uk Titan Beam T3 User Manual...

  • Page 12: Lamp Adjustment

    Please note: If you need to adjust the lamp up/down please use the gobo offset adjustment on page 18. The lamp MUST be adjusted with the fixture disconnected from the mains! Do not operate this fixture without all external covers! www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 13 Please note: The adjusted hotspot may move during the first 100 hours of lamp operation as the lamp stabilises whilst its burning. Please adjust the lamp if the hotspot moves out of the centre. www.prolight.co.uk Titan Beam T3 User Manual...

  • Page 14: Gobo Replacement

    60 minutes before replacing the gobo(s). 1. Unscrew and remove the 8 screws securing the plastic head shell (4 screws per side of the head). 2. Remove the plastic head shell. www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 15 3. Unscrew and remove the 10 screws securing the lens surround to the head. Once the screws have been removed lift the lens surround upwards away from the unit. 4. Unscrew and remove the 2 screws on the guard plate and remove the guard plate. www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 16 Note: Disconnect the cables with red sleeves before removing the head module. 5. Carefully remove the head module by lifting upwards away from the head. Head module 6. Unscrew and remove the 4 screws on the insulation board and remove the insulation board. Insulation board www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 17 9. Re-insert the gobo holder into the gobo wheel and reassemble the fixture. Note: Please see page 18 for torque settings when reassembling the fixture. We always recommend testing the IP integrity after gobo replacement using the Elumen8 IP Tester. Please see page 18 for more information.
  • Page 18 DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE ISSUES! WE ALWAYS RECOMMEND TESTING THE IP INTEGRITY AFTER LAMP REPLACEMENT/OPENING THE HOUSING, USING THE ELUMEN8 IP TESTER. CONTACT PROLIGHT SERVICE FOR MORE INFORMATION. Titan Beam T3 IP Testing Parameters...

  • Page 19: Torque Settings

    Torque Settings www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 20 When the unit has been powered on the display will show “elumen8” followed by the home screen. Press the “MENU” button for 5 seconds and it will take the user to the fixtures main menu. Using the “UP”...
  • Page 21 This error may also be displayed if something is obstructing the Head Fan 2 Error fan from rotating. Head Fan 3 Error Head Fan 4 Error Head Fan 5 Error Head Fan 6 Error Head Fan 7 Error www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 22 4. Tilt Fine 000-255 (000) Fixture Test 5. Color 000-255 (000) Manual Test Manual Test Mode 6. Gobo 000-255 (000) 7. RGobo 000-255 (000) 8. Prism1 000-255 (000) 9. RPrism1 000-255 (000) 10. Prism2 000-255 (000) www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 23 CPU-C VX.X BX.X 000-255 Firmware Versions CPU-D VX.X BX.X 000-255 CPU-E VX.X BX.X 000-255 RDM UID UID: RDM Information Fixture Errors Fixture Error Information Error Logs Reset Error Log Reset Error Log Yes (Password=050) www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 24 Enter “050” as the password and press “ENTER”. This will now allow you to select between Work Mode (Fixture hours, lamp on), Sleep Mode (Fixture hours, lamp off) or Sleep Ratio (Fixture hours, sleep ratio). www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 25 Fast close, slow open 064-068 Open shake (slow-fast) 168-203 Fast open, slow close 069-073 Gobo 1 shake (slow-fast) 204-239 Pulse strobe (slow-fast) 074-078 Gobo 2 shake(slow-fast) 240-247 Random strobe (slow-fast) 079-083 Gobo 3 shake (slow-fast) 248-255 Open www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 26 Gobo 5 035-039 Gobo 6 040-044 Gobo 7 045-049 Gobo 8 050-054 Gobo 9 055-059 Gobo 10 060-063 Gobo 11 064-068 Open shake (slow-fast) 069-073 Gobo 1 shake (slow-fast) 074-078 Gobo 2 shake (slow-fast) www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 27 No function Prism 2 rotation 200-209 Reset all motors 000-127 Prism 2 indexing 210-229 No function Counter-clockwise rotation (fast- CH12 128-189 230-239 Lamp off slow) 240-255 No function 190-193 Stop 194-255 Clockwise rotation (slow-fast) www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 28 Gobos/colour wheel Colour Wheel: Gobo Wheel: Open BLUE 5600K 3200K www.prolight.co.uk Titan Beam T3 User Manual...

  • Page 29: Dmx Setup

    Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Titan Beam T3 User Manual...

  • Page 30: Line Termination

    5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Titan Beam T3 User Manual...
  • Page 31 Please note: Caution should be used when power linking other fixtures to the Titan Beam T3 as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.

  • Page 32: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Titan Beam T3 User Manual...
