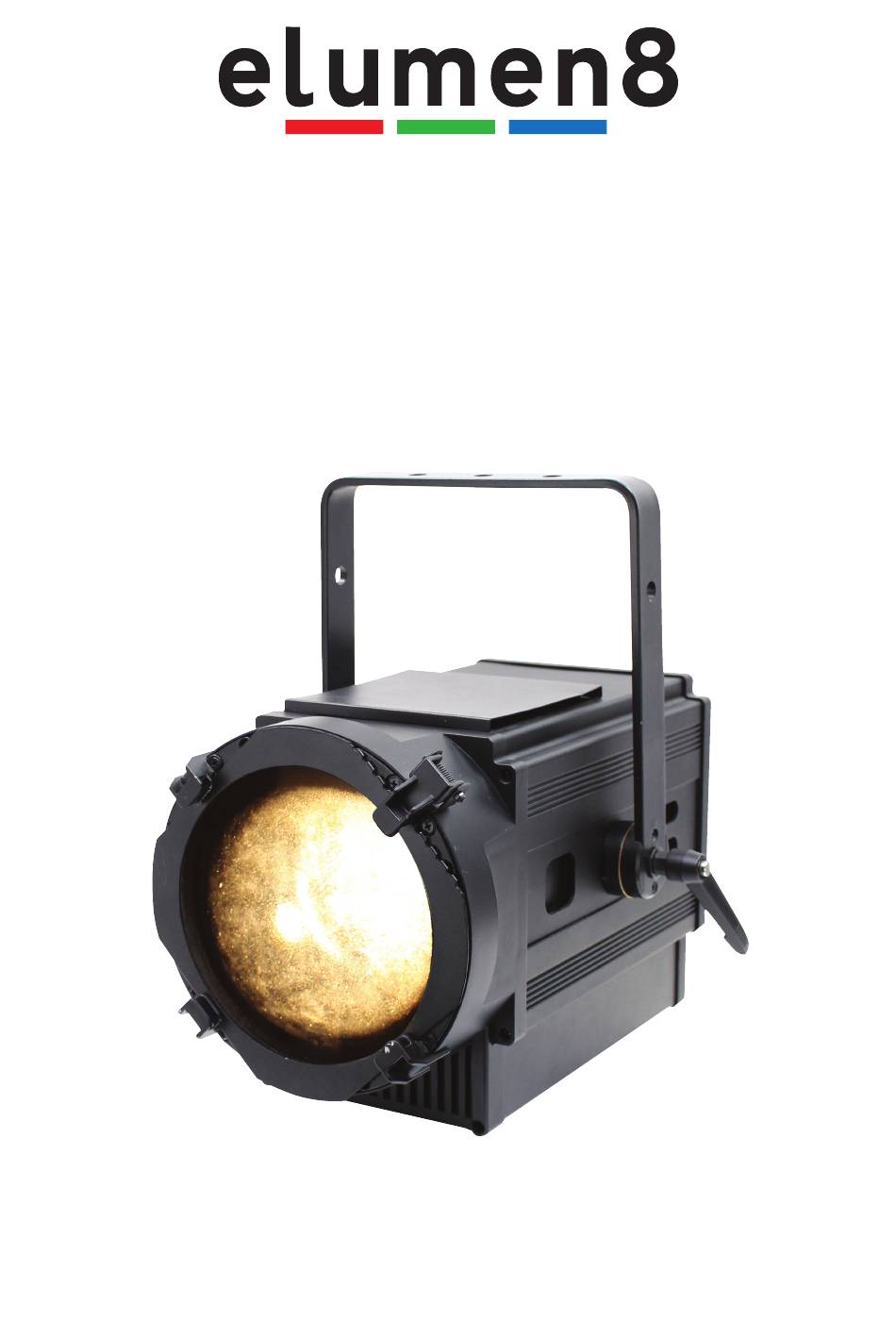

- Page 1 TZ 250PC WW User Manual Order code: ELUM111...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 110~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: Two years from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk TZ 250PC WW User Manual... - Page 3 15° - Lux 130000 32420 14400 8100 5180 Specifications TZ 250PC WW 36° - Lux 30400 7610 3380 1900 1220 Power consumption 260W Power supply 110~240V, 50/60Hz 15° 36° Dimensions 399 x 360 x 490mm Weight 10.2kg Order code ELUM111 490mm 360mm 528mm www.prolight.co.uk TZ 250PC WW User Manual...
-
Page 4: Technical Specifications
FUSE: T3A 250V POWER OUT 01 - Earth point 06 - 3-Pin DMX output In the box: 1 x fixture, 02 - LCD display 07 - 5-Pin DMX input 11 - Fuse T3A 250V 1 x barn doors 03 - Function buttons 08 - 5-Pin DMX output 12 - Barn doors 1 x PowerCON cable 04 - Function knobs 09 - PowerCON input 13 - Hanging bracket & 1 x user manual 05 - 3-Pin DMX input 10 - PowerCON output 14 - Hanging bracket adjustable knob www.prolight.co.uk TZ 250PC WW User Manual... -
Page 5: Signal Present
(0 mins - 9 mins) Dormancy Fan.Set Auto Fan.Set MENU Fan speed Fan.Set High Fan.Set Backlight Backlight Backlight (02 mins - 60 mins) Backlight Dim.Curve Linear Dim.Curve S-Curve Dim.Curve Dimmer Curves Dim.Curve INV.Square Dim.Curve Square www.prolight.co.uk TZ 250PC WW User Manual... - Page 6 Lamp Behaviour Lamp Behaviour Halogen Fixture Time Temp.Info Error.Info Model.Info Elumen8 MENU CONT. Software.V Panel.Ctrl Panel.Ctrl Focus:000 Dim:000 Brightness/ Panel.Ctrl beam angle Panel.Ctrl Panel.Ctrl Focus:255 Dim:255 Calibrate Focus:000 Calibrate focus Calibrate Calibrate Focus:255 Reset.Motor Focus www.prolight.co.uk TZ 250PC WW User Manual...
- Page 7 2 channel mode: 3 channel mode: Channel Value Function Channel Value Function 000-255 Focus (8 bit) 000-255 Focus (8 bit) 000-255 Master dimmer (0-100%) 000-255 Master dimmer (0-100%) 000-063 LED on 064-095 Strobe (slow-fast) 096-127 LED on 128-159 Strobe pulse (slow-fast) 160-191 LED on 192-223 Random strobe (slow-fast) 224-255 LED on www.prolight.co.uk TZ 250PC WW User Manual...
- Page 8 (000 = LED off, 255 = LED at full brightness). To exit out of any of the above options, press the “MENU” button. Focus calibration: To access focus calibration, press the “MENU” button on the rear of the unit to show “Calibrate” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the focus from “000” - “255”. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Dimming curves To access the units dimmer curves, press the “MENU” button on the rear of the unit to show “Dim.Curve” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the dimming curve required. “Linear” - LELinear dimming curve “Square” - LED Square dimming curve “INV.Square” - LED Inverse Square dimming curve “S-Curve” - LED S-Curve dimming curve Press the “ENTER” button to confirm the setting. To choose between Halogen and LED dimmer curves, press the “MENU” button on the rear of the unit to show “Lamp Behaviour” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the dimming curve mode required. “LED” - LED dimming curves “Halogen” - Halogen dimming curves To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk TZ 250PC WW User Manual...
-
Page 9: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk TZ 250PC WW User Manual... -
Page 10: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk TZ 250PC WW User Manual... -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk TZ 250PC WW User Manual... - Page 12 TZ 250PC WW User Manual...
