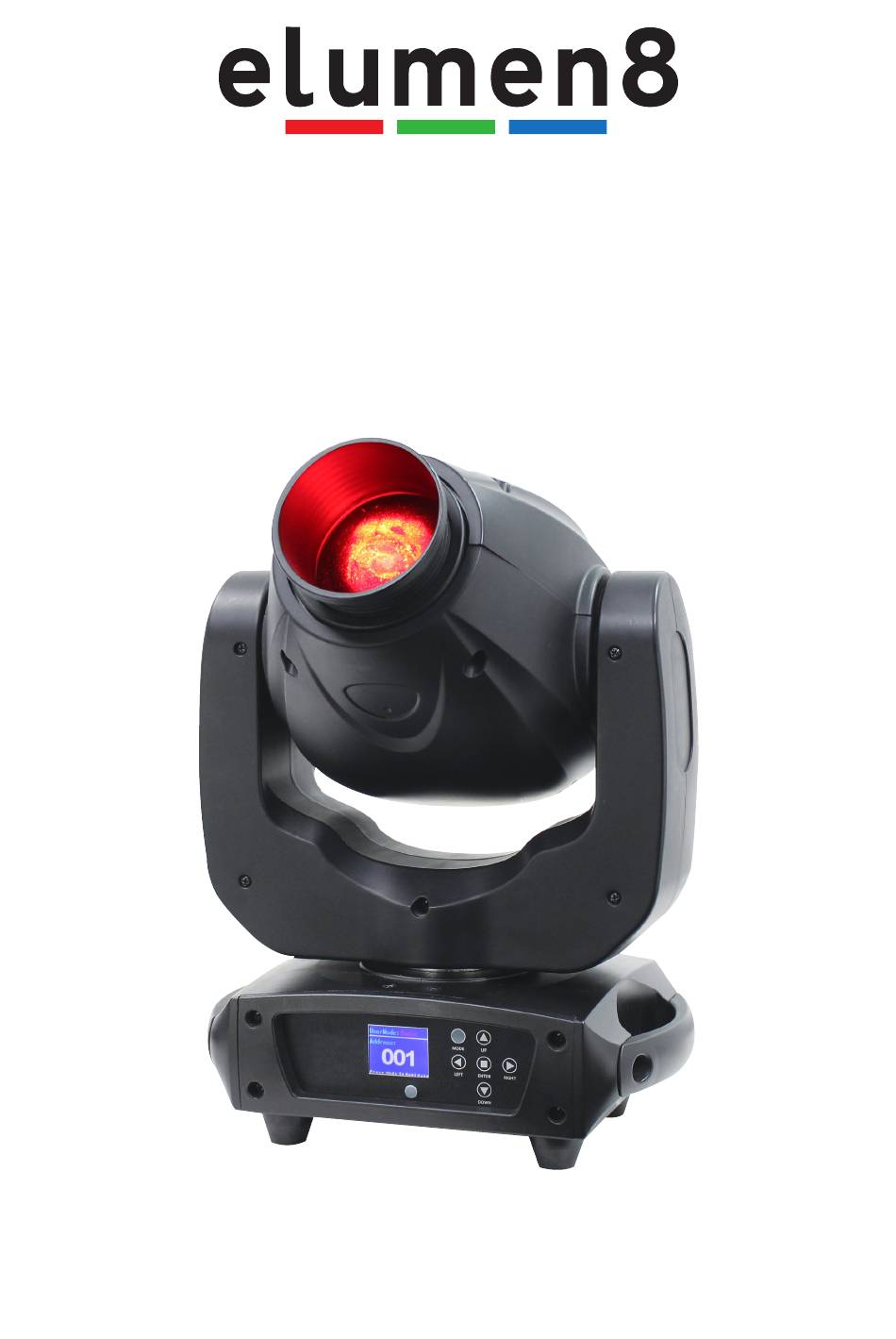

- Page 1 Evora 500 Spot User Manual Order codes: ELUM022...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: Two years from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Evora 500 Spot User Manual... - Page 3 Evora 500 Spot 285mm 180mm Power consumption 175W Fuse T2A 250V Power supply 100~240V, 50/60Hz Dimensions 440 x 285 x 180mm Weight 8.6kg Order code ELUM022 12° - Lux 104000 26000 11600 6500 4160 16° - Lux 56000 14000 6220 3500 2240 12° 16° www.prolight.co.uk Evora 500 Spot User Manual...
-
Page 4: Technical Specifications
100-240V~50/60Hz 100-240V~50/60Hz DISPLAY BACKUP DOWN POWER CONSUMPTION: 175W 01 - LCD display 05 - 5-Pin DMX input In the box: 1 x fixture, 02 - Function buttons 06 - 5-Pin DMX output 1 x omega clamp, 1 x power cable 03 - 3-Pin DMX input 07 - PowerCON input 09 - Fuse T2A 250V & 1 x user manual 04 - 3-Pin DMX output 08 - PowerCON output 10 - Fans www.prolight.co.uk Evora 500 Spot User Manual... -
Page 5: Control Panel Menu
Operating instructions Control Panel Menu: The LCD control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on it will show “Software Update Please Wait...” followed by “Motor Reset Please Wait...” and “eLumen8 Evora 500 Spot”. The fixture will then return to its home screen. Pressing the “MENU” button once will take the user to the fixtures main menu. Using the “UP” and “DOWN” buttons you can then navigate between the different options in the main menu. Pressing the “ENTER” button on one of these options allows you to access the sub menu where you can use the “LEFT” and “RIGHT” buttons to select option/value required. Once the option/value has been selected press the “ENTER” button once more to confirm the setting. To exit out of any of the above options, press and hold the “MENU” button. The LCD control panel can be used via the internal battery. To access this press and hold the “DISPLAY BACKUP” button for 5 seconds until the fixtures home screen is displayed. The LCD display will automatically shut off after 20 seconds of inactivity. MENU Evora 500 Spot LEFT ENTER RIGHT DISPLAY BACKUP DOWN Error Codes: When the unit is powered on the unit will automatically perform a motor reset. If there is a problem with... - Page 6 Gobo Wheel 2 Focus Setting No Delay (AUTO def.) 1S Delay FunctionDelay Function Delay Setting 2S Delay 3S Delay (PRO def.) DimmerCalibr. 050-100 Dimmer Calibration Auto Test Testing Auto Test Temp. –––C Fixture Temperature Fixture Time –––h Fixture Run Time Firmware Ver. V0.01F Software Version PRO def. Defaults Default Settings AUTO def. Reset Motor Reset www.prolight.co.uk Evora 500 Spot User Manual...
- Page 7 113-127 Hot Pink 032-039 Rotating gobo 4 128-189 Colour scroll CW (fast-slow) 040-047 Rotating gobo 5 190-193 Colour scroll stop 048-063 Rotating gobo 6 194-255 Colour scroll CCW (slow-fast) 064-073 Gobo 1 shake (slow-fast) 074-082 Gobo 2 shake (slow-fast) 083-091 Gobo 3 shake (slow-fast) 092-100 Gobo 4 shake (slow-fast) 101-109 Gobo 5 shake (slow-fast) 110-127 Gobo 6 shake (slow-fast) Gobo wheel scroll CW 128-189 (fast-slow) 190-193 Gobo scroll stop Gobo wheel scroll CCW 194-255 (slow-fast) www.prolight.co.uk Evora 500 Spot User Manual...
- Page 8 Gobo 4 shake (slow-fast) 096-103 Gobo 5 shake (slow-fast) 104-111 Gobo 6 shake (slow-fast) 112-119 Gobo 7 shake (slow-fast) 120-127 Gobo 8 shake (slow-fast) Gobo wheel scroll CW 128-189 (fast-slow) 190-193 Gobo scroll stop Gobo wheel scroll CCW 194-255 (slow-fast) 000-007 Open CH12 008-255 3 facet prism 000-127 Prism indexing 128-189 Prism rotation CCW (fast-slow) CH13 190-193 Prism rotation stop 194-255 Prism rotation CW (slow-fast) CH14 000-255 Focus www.prolight.co.uk Evora 500 Spot User Manual...
- Page 9 Operating instructions Rotating gobos: Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Static gobos: Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 8 www.prolight.co.uk Evora 500 Spot User Manual...
-
Page 10: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Evora 500 Spot User Manual... -
Page 11: Line Termination
5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Evora 500 Spot User Manual... -
Page 12: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Evora 500 Spot User Manual...
