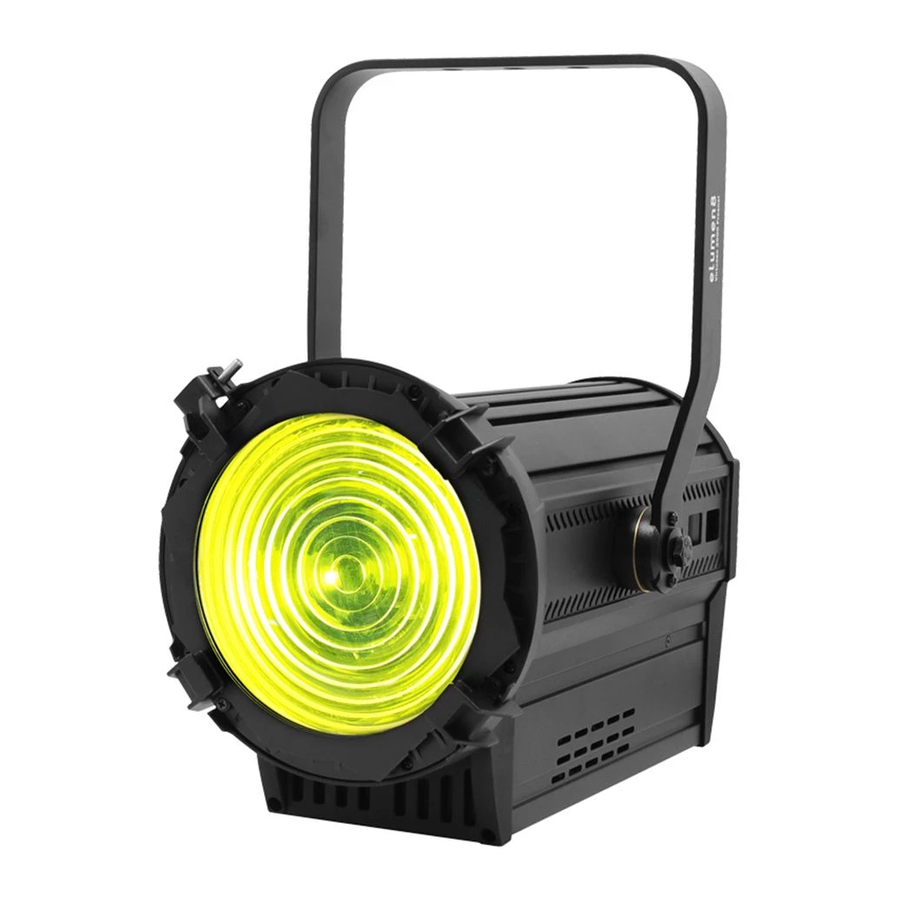

Virtuoso 2000 Fresnel RGBAL
User Manual
Order codes: ELUM135

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Virtuoso 2000 Fresnel RGBAL and is the answer not in the manual?

Questions and answers

Related Manuals for Elumen8 Virtuoso 2000 Fresnel RGBAL

Summary of Contents for Elumen8 Virtuoso 2000 Fresnel RGBAL

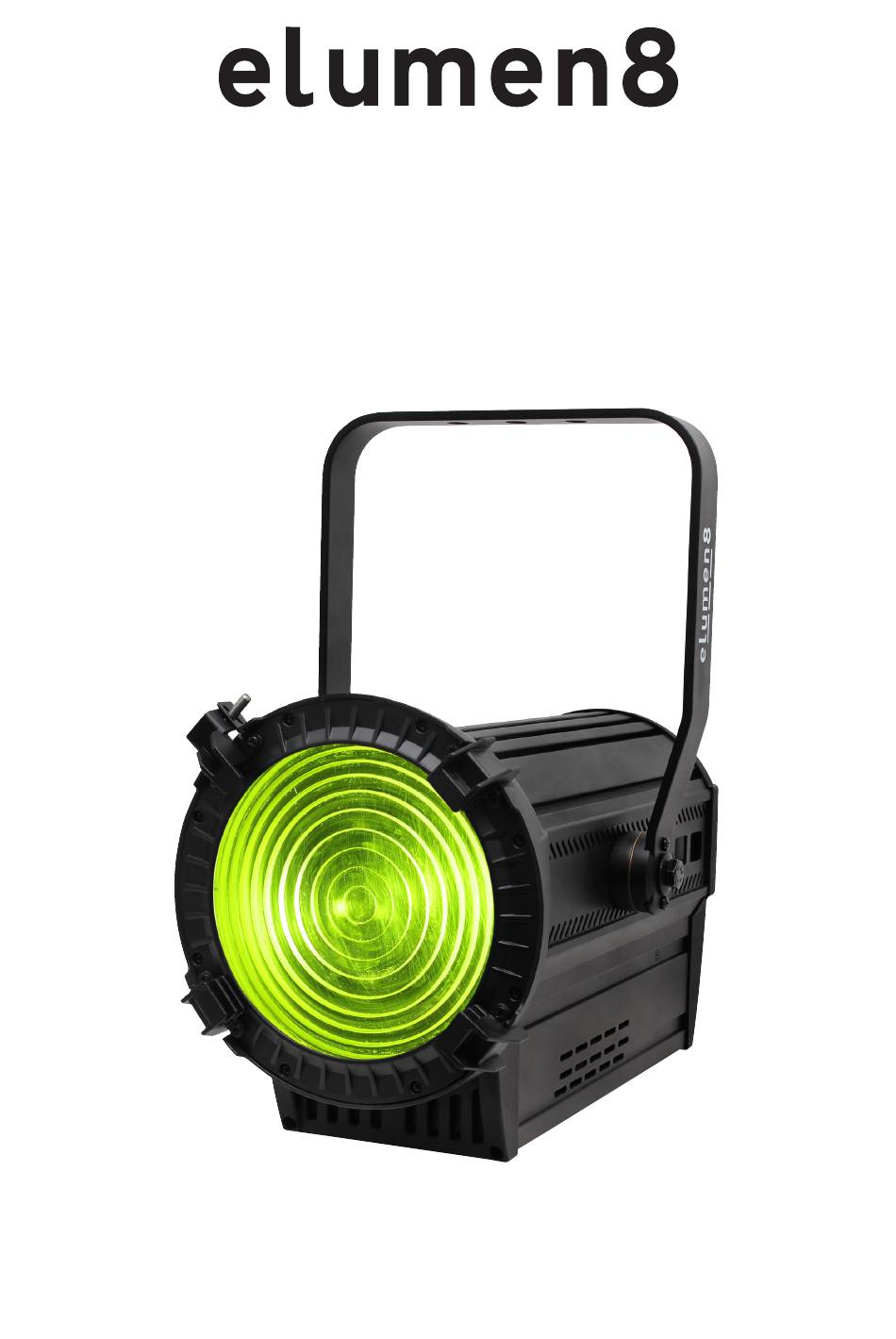

  • Page 1 Virtuoso 2000 Fresnel RGBAL User Manual Order codes: ELUM135...

  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 3 1647 Power consumption 235W 1536 61.4 1676 Fuse T5A 250V 66.9 29.7 16.7 10.7 1752 Power supply 100~240V, 50/60Hz 2980 Dimensions 440 x 290 x 445mm Weight 7.6kg 15° 45° Order code ELUM135 www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...

  • Page 4: Technical Specifications

    11 - Hanging bracket 12 - Hanging bracket adjustment knobs 13 - Carry handle In the box: 1 x fixture, 1 x filter frame, 1 x power cable & 1 x user manual www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...

  • Page 5: Installation

    The installation should be checked annually by a qualified person. The eLumen8 Virtuoso 2000 Fresnel RGBAL can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface.
  • Page 6 1. Fasten the clamp to the fixtures bracket with a bolt and lock nut through one of the mounting holes. 2. Mount the fixture onto your truss system via the clamp and tighten to ensure secure. 3. Pull the safety cable through the fixture bracket and around the truss. www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 7 The LCD control panel situated on the rear of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “eLumen8 Virtuoso 2000 Fresnel”. MENU...

  • Page 8: Manual Mode

    “0” - “255” (Red, Green, Blue, Amber, Lime and Zoom) or “0” - “25” (Strobe). Press the “ENTER” button to confirm the setting. STATIC STATIC GREEN GREEN BLUE BLUE AMBER AMBER LIME LIME ZOOM ZOOM STROBE STROBE www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...

  • Page 9: Run Mode

    “DMX” or “SLAVE”. Press the “ENTER” button to confirm the setting. DMX - Use this setting when using via a DMX controller. SLAVE - Use this setting when using the fixture via master/slave. www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 10 The front lens will turn green if the export has completed successfully. If there are any problems whilst exporting the front lens will turn red. SETTING UPLOAD Pass code: RESET DIMMER SEND. . . DMX FAIL PERFORMANCE MCON PWM RATE POWER CCT www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 11 “DIM1”, and “OFF”. Press the “ENTER” button to confirm the setting. DIM1-DIM4 - Dimmer speed fast-slow. OFF - Dimmer speed off. SETTING UPLOAD DIMX RESET DIM4 DIMMER DIM3 DMX FAIL DIM2 PERFORMANCE DIM1 MCON PWM RATE POWER CCT www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 12 POWER - This is an output performance mode designed to operate at full power with no consideration for the noise level. SETTING UPLOAD PERFORMANCE RESET DIMMER LIVE DMX FAIL STUDIO PERFORMANCE POWER MCON PWM RATE POWER CCT www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 13 “ENTER” button and use the “UP” and “DOWN” buttons to select between “1200Hz”, “2400Hz”, “4000Hz”, “6000Hz”, and “25000Hz”. Press the “ENTER” button to confirm the setting. SETTING UPLOAD PWM RATE RESET 1200HZ DIMMER 2400HZ DMX FAIL 4000HZ PERFORMANCE 6000HZ MCON 25000HZ PWM RATE POWER CCT www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 14 When this is set to ON, the passcode will need to be entered each time the display goes off. The passcode sequence is; “UP”, “DOWN”, “UP”, “DOWN”, “ENTER”. MAIN MENU MANUAL MODE STATIC Pass code: PRESET COLOR ADDRESS RUN MODE PERSONALITY SETTING CALIBRATION.C INFO www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 15 Pass code: PRESET COLOR CALIB.CCT ADDRESS 1800K RUN MODE 2200K PERSONALITY 2700K SETTING 3000K 3200K CALIB.CCT 3500K INFO 4000K 4200K 4500K 5600K X FINE 1800K 6000K X FINE 6500K Y FINE 7200K 8000K www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 16 “ENTER” button and the fixtures RDM UID will be displayed. If LABEL is highlighted press the “ENTER” button and the model number will be displayed. INFO VERSION VERSION Date: xx/xx/xxxx INFO VERSION LABEL 0x09A5xxxxxxxx LABEL LABEL Virtuoso2000F-5C www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 17 No function 190-255 Random strobe 000-255 Zoom (narrow-wide) 000-009 Dimming mode (set in menu) 010-029 No function 030-069 Dimming speed 1 070-129 Dimming speed 2 130-189 Dimming speed 3 190-255 Dimming speed 4 www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 18 Red (100%), Green (0%), Blue 070-129 Dimming speed 2 111-130 (100-0%) 130-189 Dimming speed 3 Red (100%), Green (0-100%), 131-150 190-255 Dimming speed 4 Blue (0-100%) Red (100-0%), 151-170 Green (100-0%), Blue (100%) www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 19 No function Red (0%), Green (100%), Blue 051-070 030-069 Dimming speed 1 (0-100%) CH13 070-129 Dimming speed 2 Red (0%), Green (100-0%), 071-090 Blue (100%) 130-189 Dimming speed 3 190-255 Dimming speed 4 www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 20 No function 041-060 Auto 1 061-080 Auto 2 081-100 Auto 3 101-120 Auto 4 CH17 121-140 Auto 5 141-160 Auto 6 161-180 Auto 7 181-200 Auto 8 201-220 Auto 9 221-255 Auto 10 www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...

  • Page 21: Dmx Setup

    3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 22 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
  • Page 23 Please note: Caution should be used when power linking other fixtures to the Virtuoso 2000 Fresnel as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source. www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...

  • Page 24: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Virtuoso 2000 Fresnel RGBAL User Manual...
