Evora CMY470 Hybrid
User Manual
Order codes: ELUM702

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evora CMY470 Hybrid and is the answer not in the manual?

Questions and answers

Related Manuals for Elumen8 Evora CMY470 Hybrid

Summary of Contents for Elumen8 Evora CMY470 Hybrid

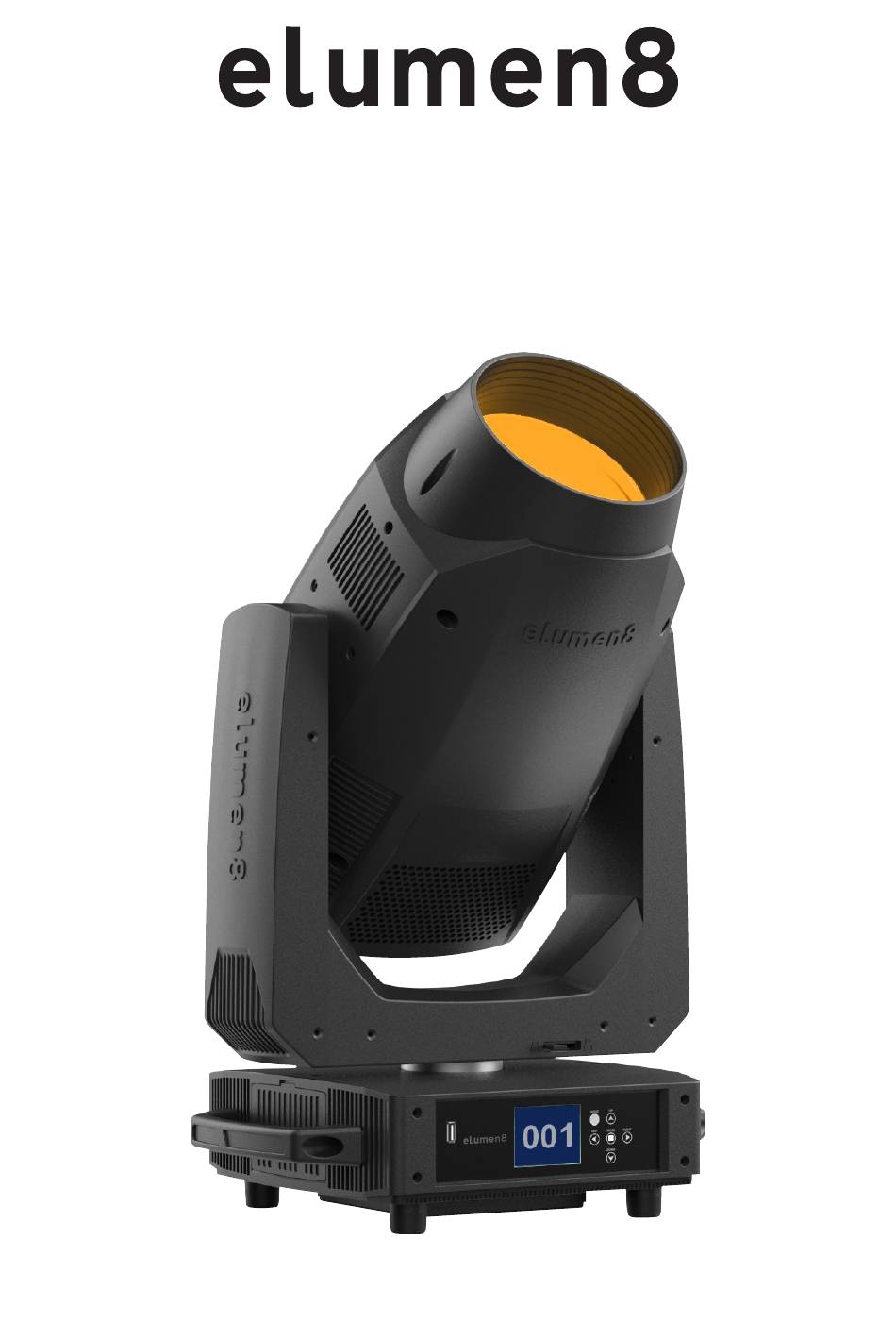

  • Page 1 Evora CMY470 Hybrid User Manual Order codes: ELUM702...

  • Page 2: Safety Advice

    Pack the unit securely (preferably in the Incorrect installation or use can cause serious damage original packing material), and return it to your Prolight to people and/or property. dealer for service. www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 3 This fixture emits intense UV radiation, which is harmful to the eyes and skin. The intense luminescence of the lamp can cause severe damage to the retina. NEVER operate this fixture with any of the protective casing removed. www.prolight.co.uk Evora CMY470 Hybrid User Manual...

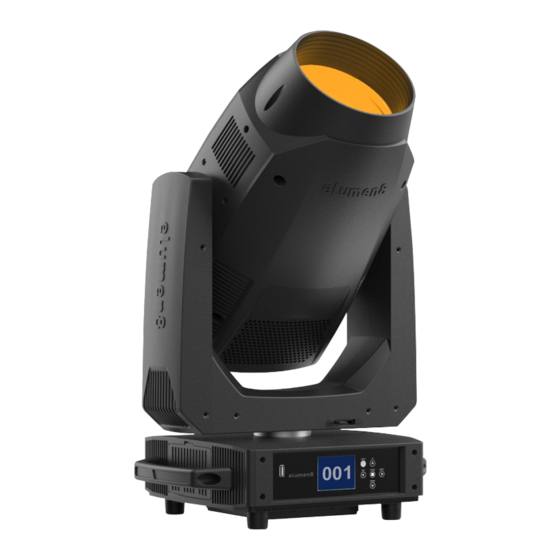

  • Page 4 Product overview & technical specifications Evora CMY470 Hybrid The Evora CMY470 Hybrid is a feature packed 3-in-1 moving head boasting an intense Osram® SIRIUS HRI 471W discharge lamp. Crystal clear optics paired with an adjustable zoom from 1.8° to 42° allows for super tight beams through to wide washes to be achieved.

  • Page 5: Technical Specifications

    Technical specifications 235mm 108mm 382mm 290mm 288mm 390mm 470mm www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 6 2 x omega clamps 03 - 5-Pin DMX input 07 - PowerCON TRUE1 input 10 - Wireless DMX Antenna & 1 x power cable 04 - 5-Pin DMX output 08 - PowerCON TRUE1 output 11 - Fans www.prolight.co.uk Evora CMY470 Hybrid User Manual...

  • Page 7: Installation

    The installation should be checked annually by a qualified person. The eLumen8 Evora CMY470 Hybrid can be operated where the base of the fixture is horizontally orientated, this includes standing the fixture upright on a flat, level surface or hanging the fixture upside down.
  • Page 8 4. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the fixture and around the truss. www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 9 Pan/Tilt Lock Mechanism Pan mechanism lock and release every 45° UNLOCKED LOCKED Tilt mechanism lock and release every 45° LOCKED UNLOCKED www.prolight.co.uk Evora CMY470 Hybrid User Manual...

  • Page 10: Lamp Replacement

    Make sure all covers/casings are replaced/secured before operating the fixture to prevent risk and/or damage to the eyes retina. Only use GENUINE Osram® Lamps. Other branded lamps will cause damage and will void the fixtures warranty. Discharge Lamp Installation: www.prolight.co.uk Evora CMY470 Hybrid User Manual...

  • Page 11: Changing The Lamp

    7. Re-insert the lamp cover (2) and tighten the 2 screws (1) on the lamp cover. 8. Connect the fixture to the mains. 9. Reset the ‘Lamp Hours’ in the fixtures menu. (See page 23 ‘Lamp Hours Reset’ for instructions on how to clear the lamp hours.) www.prolight.co.uk Evora CMY470 Hybrid User Manual...

  • Page 12: Lamp Adjustment

    Please note: If you need to adjust the lamp up/down please use the gobo offset adjustment on page 22. The lamp MUST be adjusted with the fixture disconnected from the mains! Do not operate this fixture without all external covers! www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 13 Please note: The adjusted hotspot may move during the first 100 hours of lamp operation as the lamp stabilises whilst its burning. Please adjust the lamp if the hotspot moves out of the centre. www.prolight.co.uk Evora CMY470 Hybrid User Manual...

  • Page 14: Rotating Gobo Replacement

    2) Use a Phillips head screwdriver to loosen the four 3) Remove the safety clips securing the casings to the screws on each side of the head casing. These are head chassis. twist lock screws and do not come free of the casing. www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 15 6) Turn the head round and unscrew the screws on the gobo wheel module. Carefully slide the gobo wheel module out of its runners. Place the gobo wheel module to on a flat surface ensuring you are indoors in a dust free location. www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 16 (or similar) and push the spring clip inwards to release it and remove the spring clip. Carefully remove the gobo from the holder avoiding scratching the gobo. Install the new gobo and follow the previous steps in reverse order. www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 17 The LCD control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “Software Update” followed by “eLumen8 Evora CMY470 Hybrid” and then “Ethernet Reset Please Wait...” followed by “Motor Reset Please Wait...”.
  • Page 18 Prism1 Prism1Rot Prism2 Prism2Rot Focus Zoom HeadTemp HeadFan1 HeadFan2 GoboFan BaseTemp This message will appear if the sensor or fan has failed or the fixtures temperature is too hot. BaseFan BallastFan Blower1 Blower2 Blower3 www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 19 W-DMX must be active for Link all devices and the link Tx/Rx Link with a transmitter must be suspended (Receive Reset) UnLink Unlink all devices Do not suspend link with transmitter Rx Reset Suspend link with transmitter www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 20 Prism 1 Rot Prism 2 Prism 2 Rot Animation Speed (000-255) Program 1 Fade (000-255) Speed (000-255) Program 2 Fade (000-255) Programs Speed (000-255) Internal Programs Program 3 Fade (000-255) Speed (000-255) Program 16 Fade (000-255) www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 21 Pan Angle Pan Angle setting Tilt Cyan Magenta Yellow High CRI Colour Service Calibrate (PIN = 050) 000-255 Calibration Settings Colour 0-1 Colour 2-3 Colour 3-4 Colour 4-5 Colour 5-6 Colour 6-7 Colour 7-8 www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 22 FocusGoboR2 FocusGoboR3 FocusGoboR4 Service Calibrate (PIN = 050) 000-255 Calibration Settings FocusGoboR5 FocusGoboR6 FocusGoboR7 FocusGoboR8 FocusGoboR9 Fixed Gobo FocusFixG1 FocusFixG2 FocusFixG3 FocusFixG4 FocusFixG5 FocusFixG6 FocusFixG7 FocusFixG8 FocusFixG9 FocusFixG10 FocusFixG11 FocusFixG12 FocusFixG13 Prism1 Prism1 Rot1 www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 23 Blower 2: xxxxRPM Model eLumen8 Evora CMY470 Hybrid Model Information RDM UID 0x09A5-xxxxxxxx RDM UID 1U: Vx.x.xx 2U: Vx.x.xx Firmware Software Version 3U: Vx.x.xx Error. Info NONE/Pan, Tilt... (See page 18) Current Fixture Errors www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 24 Colour 3/Colour 4 menu - see page 044-047 Colour 4 048-051 Colour 4/Colour 5 052-055 Colour 5 056-059 Colour 5/Colour 6 060-063 Colour 6 064-067 Colour 6/Colour 7 068-071 Colour 7 072-075 Colour 7/Colour 8 www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 25 231-255 Macro 10 CMY Mix Mode 000-127 Full 128-255 Effect Macros Cyan Full 000-255 Cyan (0-100%) Effect Macros 000-170 Cyan (0-100%) 171-189 Cyan (100%-open) 190-221 Scroll clockwise (fast-slow) 222-223 Stop 224-255 Scroll anti-clockwise (fast-slow) www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 26 Rotating Gobo 2 Shake (slow-fast) 120-129 Rotating Gobo 3 Shake (slow-fast) 130-139 Rotating Gobo 4 Shake (slow-fast) 140-149 Rotating Gobo 5 Shake (slow-fast) 150-159 Rotating Gobo 6 Shake (slow-fast) 160-169 Rotating Gobo 7 Shake (slow-fast) www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 27 Gobo 9 Shake (slow-fast) 162-167 Gobo 10 Shake (slow-fast) 168-173 Gobo 11 Shake (slow-fast) 174-179 Gobo 12 Shake (slow-fast) 180-185 Gobo 13 Shake (slow-fast) 186-217 Scroll clockwise (fast-slow) 218-223 Stop 224-255 Scroll anti-clockwise (fast-slow) www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 28 Prism 1 068-129 Prism 2 130-191 Prism 3 192-255 Prism 4 Prism 2 Indexing / Rotation 000-127 Prism 1 Indexing 128-189 Clockwise Prism Rotation (fast-slow) 190-193 Prism 1 rotation stop 194-255 Anti-clockwise Prism Rotation (slow-fast) www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 29 Fan high (hold 3s) 165-179 Lamp on (hold 3s) 180-194 Lamp off (hold 3s) 195-209 Reset pan/tilt (hold 3s) 210-224 Reset head only (hold 3s) 225-240 Reset all motors (hold 3s) 241-255 No function www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 30 33% split 33% split Open 50% split 50% split Open 50% split 100% Open 100% 50% split Open 33% split 33% split Open 50% split 50% split 50% split Open 33% split 33% split Yellow www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 31 Gobos/colours Rotating gobos: Gobo size: 17mmØ Image size: 12mmØ Gobo thickness: 1.1mm (Max. thickness if replaced 1.1mm) Colour wheel: Static gobos: www.prolight.co.uk Evora CMY470 Hybrid User Manual...

  • Page 32: Dmx Setup

    Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Evora CMY470 Hybrid User Manual...

  • Page 33: Line Termination

    5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Evora CMY470 Hybrid User Manual...
  • Page 34 Please note: Caution should be used when power linking other fixtures to the Evora CMY470 Hybrid as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.

  • Page 35: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Evora CMY470 Hybrid User Manual...
