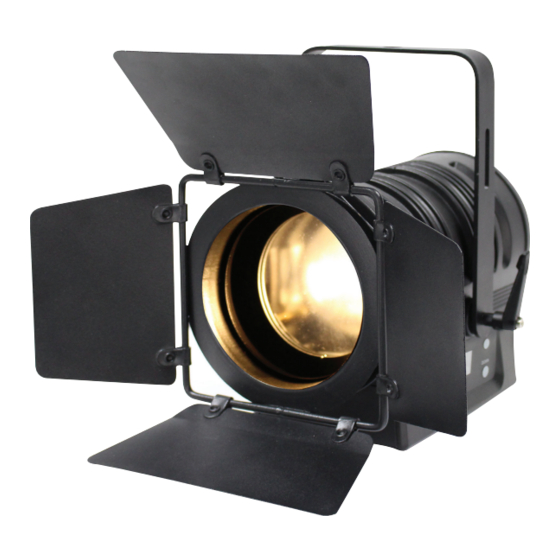

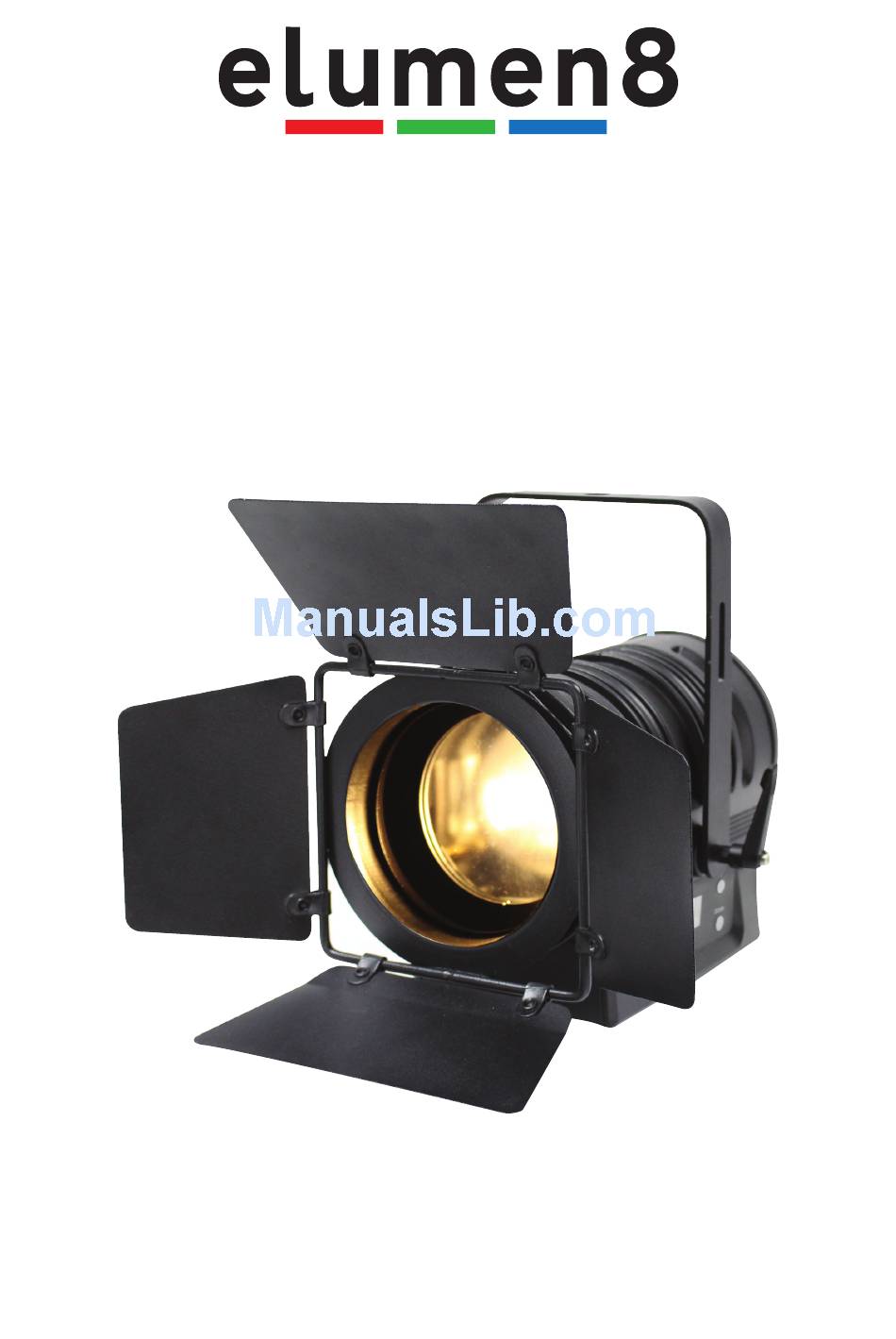

- Page 1 MP60 LED Fresnel WW User Manual Order codes: ELUM104...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: Two years from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk MP60 LED Fresnel WW User Manual... - Page 3 • Captive power connection • 3-Pin XLR input/output • Filter frame and barn doors included 10° - Lux 21900 5475 2440 1370 Specifications MP60 LED Fresnel 50° - Lux 5040 1260 Power consumption Power supply 100~240V, 50/60Hz 10° 50° Dimensions 250 x 210 x 265mm Weight 3.8kg Order code ELUM104 265mm 210mm 350mm www.prolight.co.uk MP60 LED Fresnel WW User Manual...
-
Page 4: Technical Specifications
Technical specifications POWER INPUT: 100-240V~50/60Hz FUSE: T1A 250V DMX INPUT DMX OUTPUT 01 - Earth point 07 - Fuse T1A 250V 02 - LCD display 08 - Adjustable zoom knob 03 - Function buttons 09 - Barn doors 04 - 3-Pin DMX input 10 - Filter frame In the box: 1 x fixture 05 - 3-Pin DMX output 11 - Hanging bracket & 1 x user manual 06 - Captive power connection 12 - Hanging bracket adjustable knob www.prolight.co.uk MP60 LED Fresnel WW User Manual... -
Page 5: Operating Instructions
S-Curve LampCurv MENU LED/Halogen selection LampCurv LampCurv Halogen Display Display timeout off Display Display Display timeout on (30 seconds) Fixture Fixture time Time Software version Version Temperature Temp Reset factory settings Default Yes? www.prolight.co.uk MP60 LED Fresnel WW User Manual... - Page 6 To exit out of any of the above options, press the “MENU” button. 1 channel mode: Channel Value Function 000-255 Master dimmer (0-100%) 2 channel mode: Channel Value Function 000-255 Master dimmer (0-100%) 000-030 Linear LED dimming curve 031-060 Linear Halogen dimming curve 061-090 Square LED dimming curve 091-120 Square Halogen dimming curve 121-150 Inverse Square LED dimming curve 151-180 Inverse Square Halogen dimming curve 181-210 S-curve LED dimming curve 211-255 S-curve Halogen dimming curve www.prolight.co.uk MP60 LED Fresnel WW User Manual...
- Page 7 To access the manual dimming mode, press the “MENU” button on the rear of the unit to show “Manual” on the LCD display. The unit is now in manual dimming mode. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the brightness from “0” - “99”. Press the “ENTER” button to confirm the setting. (0 = LED off, 99 = LED at full brightness). To exit out of any of the above options, press the “MENU” button. Dimming curves To access the units dimmer curves, press the “MENU” button on the rear of the unit to show “DimCurve” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the dimming curve required. “Linear” - LELinear dimming curve “Square” - LED Square dimming curve “INV.Squa” - LED Inverse Square dimming curve “S-Curve” - LED S-Curve dimming curve Press the “ENTER” button to confirm the setting. To choose between Halogen and LED dimmer curves, press the “MENU” button on the rear of the unit to show “LampCurv” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the dimming curve mode required. “LED” - LED dimming curves “Halogen” - Halogen dimming curves To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk MP60 LED Fresnel WW User Manual...
-
Page 8: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk MP60 LED Fresnel WW User Manual... - Page 9 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk MP60 LED Fresnel WW User Manual...
-
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk MP60 LED Fresnel WW User Manual... - Page 11 MP60 LED Fresnel WW User Manual...
- Page 12 MP60 LED Fresnel WW User Manual...
