WisyCom RTE25 User Manual page 6

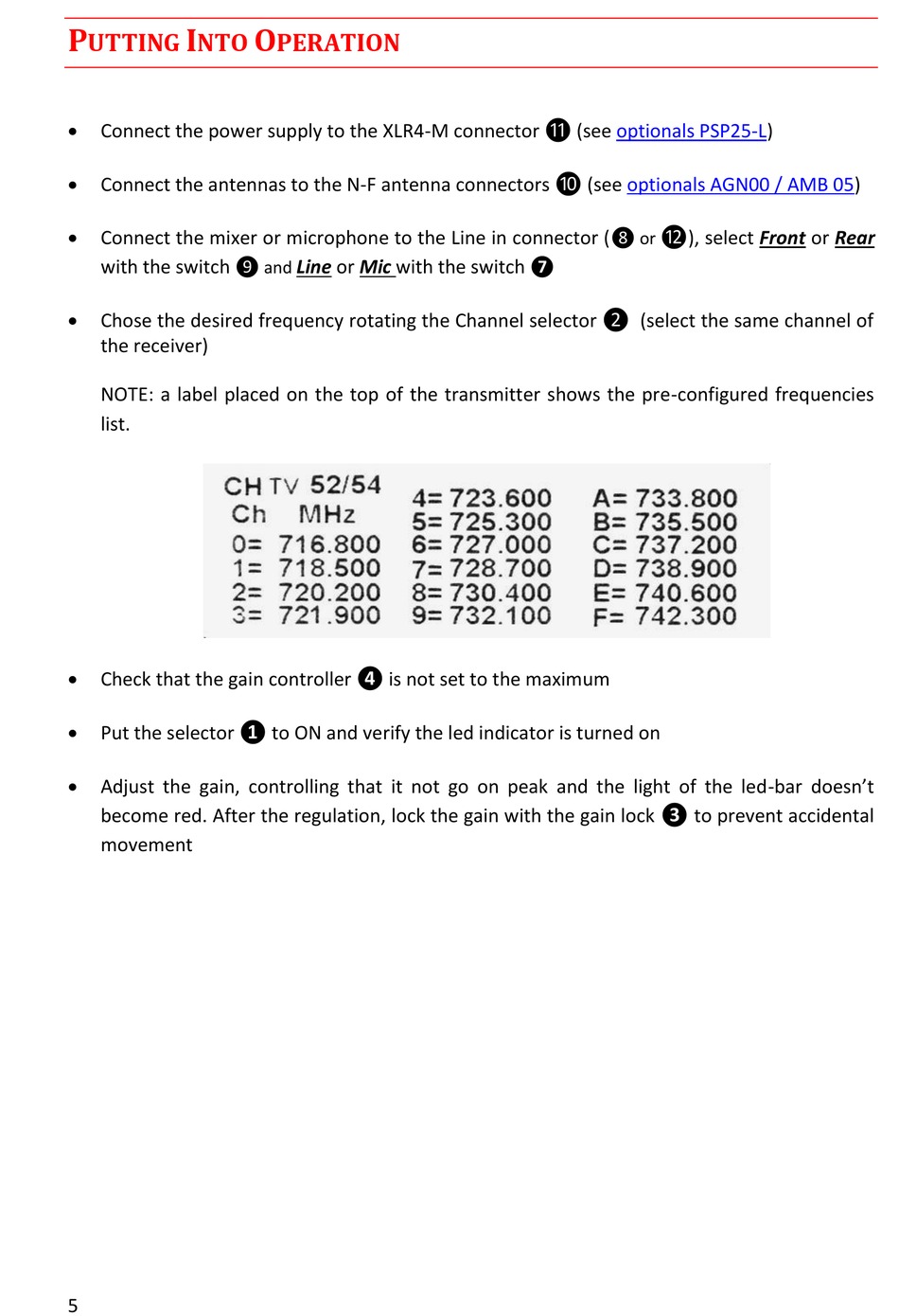

P I
UTTING NTO

Connect the power supply to the XLR4-M connector ⓫ (see

Connect the antennas to the N-F antenna connectors ❿ (see

Connect the mixer or microphone to the Line in connector (
with the switch
❾ and

Chose the desired frequency rotating the Channel selector ❷ (select the same channel of
the receiver)
NOTE: a label placed on the top of the transmitter shows the pre-configured frequencies
list.

Check that the gain controller ❹ is not set to the maximum

Put the selector ❶ to ON and verify the led indicator is turned on

Adjust the gain, controlling that it not go on peak and the light of the led-bar doesn't
become red. After the regulation, lock the gain with the gain lock ❸ to prevent accidental
movement
5
O
PERATION
Line or Mic with the switch
optionals PSP25-L)
optionals AGN00 / AMB
⓬), select Front or Rear
❽ or
❼
05)
