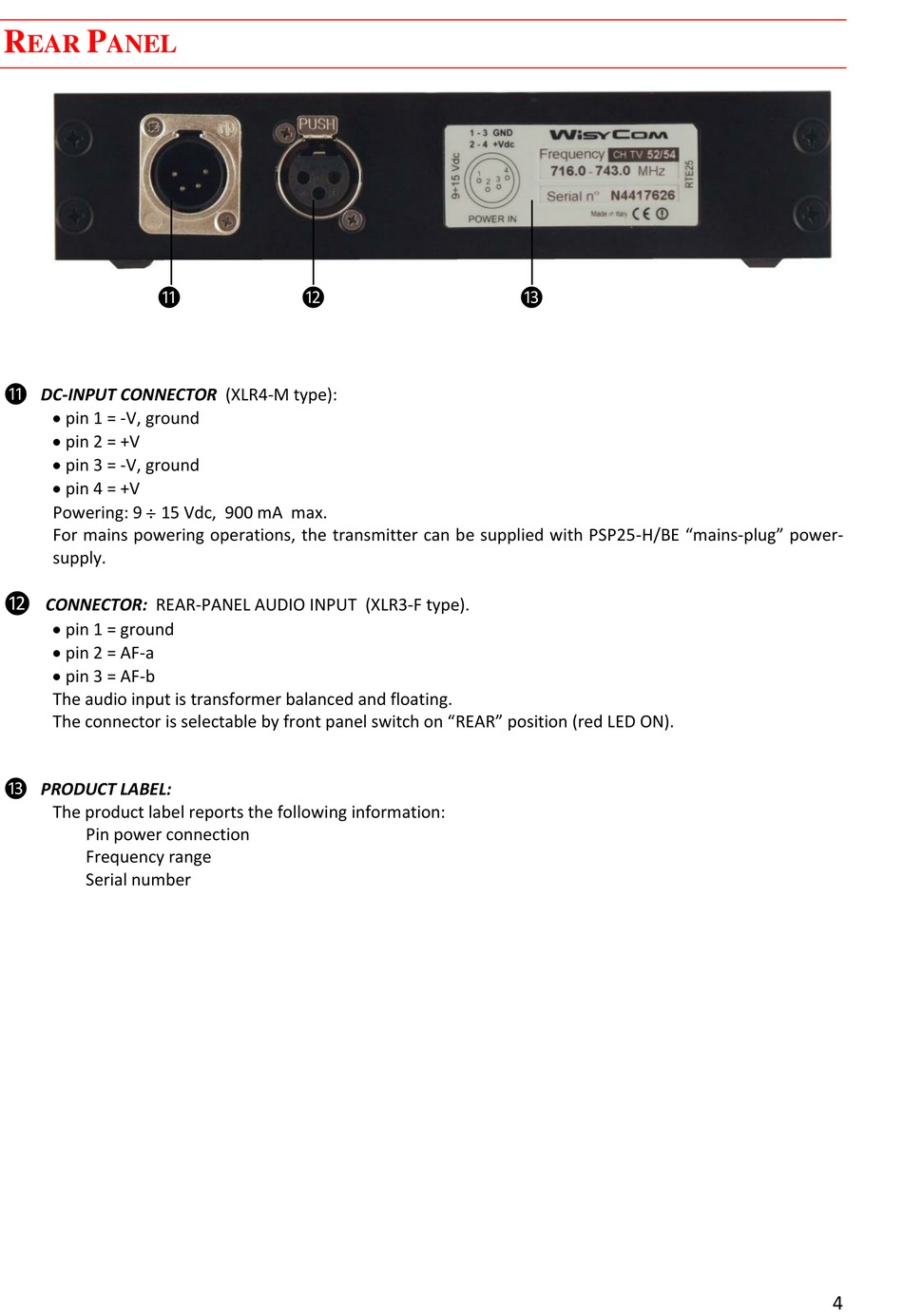

R P
EAR ANEL
⓫
⓫ DC-INPUT CONNECTOR (XLR4-M type):
 pin 1 = -V, ground
 pin 2 = +V
 pin 3 = -V, ground
 pin 4 = +V
Powering: 9  15 Vdc, 900 mA max.
For mains powering operations, the transmitter can be supplied with PSP25-H/BE "mains-plug" power-
supply.
⓬
CONNECTOR: REAR-PANEL AUDIO INPUT (XLR3-F type).
 pin 1 = ground
 pin 2 = AF-a
 pin 3 = AF-b
The audio input is transformer balanced and floating.
The connector is selectable by front panel switch on "REAR" position (red LED ON).
⓭ PRODUCT LABEL:
The product label reports the following information:
Pin power connection
Frequency range
Serial number
⓬ ⓭
