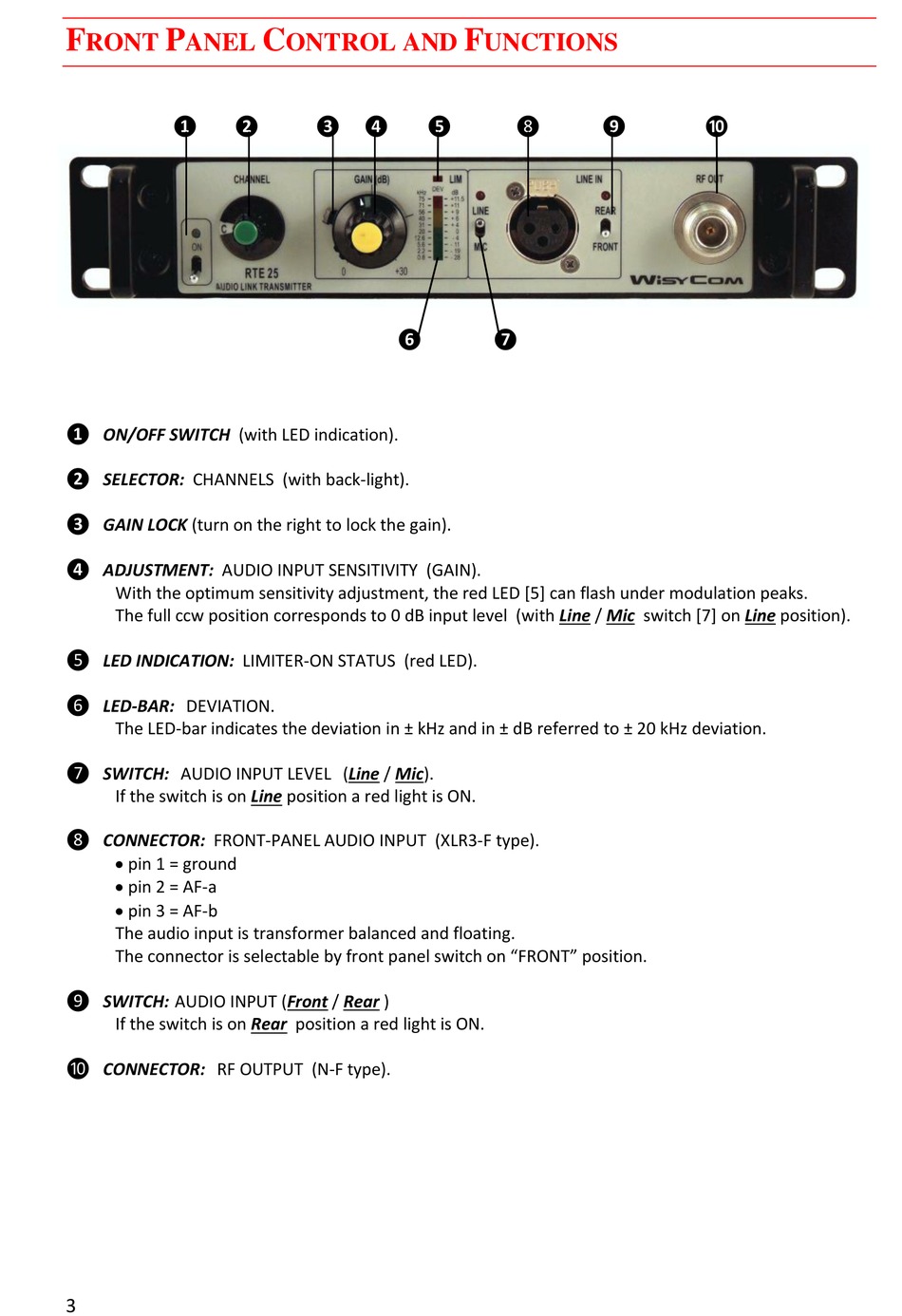

WisyCom RTE25 User Manual page 4

F P
RONT ANEL
❶ ❷
❶ ON/OFF SWITCH (with LED indication).
❷ SELECTOR: CHANNELS (with back-light).
❸ GAIN LOCK (turn on the right to lock the gain).
❹ ADJUSTMENT: AUDIO INPUT SENSITIVITY (GAIN).
With the optimum sensitivity adjustment, the red LED [5] can flash under modulation peaks.
The full ccw position corresponds to 0 dB input level (with Line / Mic switch [7] on Line position).
❺ LED INDICATION: LIMITER-ON STATUS (red LED).
❻ LED-BAR: DEVIATION.
The LED-bar indicates the deviation in ± kHz and in ± dB referred to ± 20 kHz deviation.
❼ SWITCH: AUDIO INPUT LEVEL (Line / Mic).
If the switch is on Line position a red light is ON.
❽ CONNECTOR: FRONT-PANEL AUDIO INPUT (XLR3-F type).
 pin 1 = ground
 pin 2 = AF-a
 pin 3 = AF-b
The audio input is transformer balanced and floating.
The connector is selectable by front panel switch on "FRONT" position.
❾ SWITCH: AUDIO INPUT (Front / Rear )
If the switch is on Rear position a red light is ON.
❿ CONNECTOR: RF OUTPUT (N-F type).
3
C
ONTROL AND
❸ ❹ ❺
❻
F
UNCTIONS
❽ ❾
❼
❿
