Charging the battery

Connecting the
mains adapter
– To fit a strap (or a handle), position each stud against the attach-
ment point provided for the purpose on the sides of the cover, and
press.
– To detach the strap (or handle) from the instrument, lift the stud
away from its attachment to open the internal clip, and pull.
Fixing attachment for
carrying strap or
handle

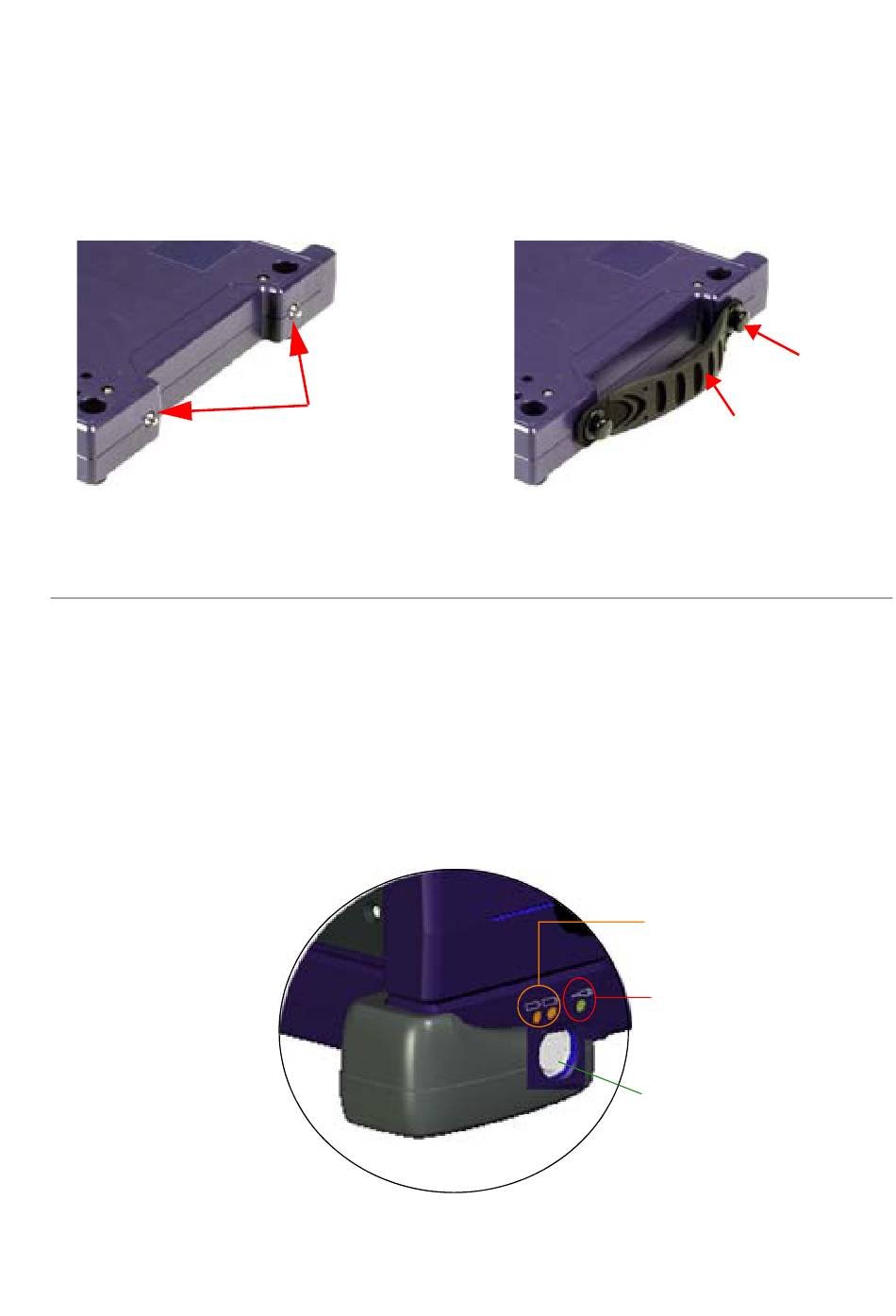

Fig. 13 Attachment of strap or handle
1 At the right side of the battery pack, lift up the power supply socket
protector and plug in the mains adapter.
2 Connect the adapter to the mains.
The On indicator lamp starts to blink in green.
The «plug» indicator of the battery pack lits in green.
Fig. 14 Mains plug and indicators on battery pack
User Manual 78100000202 Rev. 003
Chapter 3 Starting up
Charging the battery
Handle fixing
clip
Handle
Battery indicators (lit in
orange when batteries are
not sufficiently charged)
Plug indicator (lit in green
when equipment is
connected to mains)
Plug the mains adapter
19
