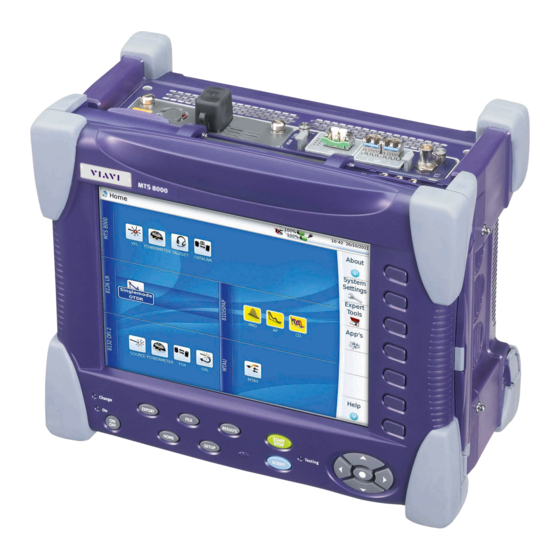

Viavi 8000 V2 Quick Card

Connect both jumpers together using the appropriate mating adapter. See below
9
the interconnection schematic.
4. Perform ORL and Loopback IL Referencing
Touch the FCOMP tab
1
2 Press the soft key to enter the reference menu.
Press the soft key Take Refs
3
Press Loopback key
4
ORL and Insertion Loss
Repeat above steps 5 to 8 for loopback ORL/IL referencing.
5
T-BERD/MTS-8000 V2 - Quick Card "IL/ORL Referencing procedure" - Ref 78000A203/00 - March 2013 - Copyright © 2013 JDSU
.
in order to enter the referencing wizard.
to start referencing process for
8000 V2 PLATFORM QUICK CARD
FIBER CHARACTERIZATION SCRIPT
IL/ORL REFERENCING PROCEDURE
The following procedure describes how to perform an Insertion Loss (IL) and Optical
Return Loss (ORL) referencing with the use of an MTAU and a FiberComplete
module into a T-BERD/MTS 8000 V2. This measurement is done to ensure that the
IL and ORL of the fi ber jumpers are taken into account for an accurate qualifi cation of
the fi ber to test.
Please read the entire procedure BEFORE starting.
4 T-BERD/MTS-8000 V2 - Quick Card "IL/ORL Referencing procedure" - Ref 78000A203/00 - March 2013 - Copyright © 2013 JDSU 1
