Chapter 6 Scope

Launching a test of the connector and fiber end-face

Camera mode

Launching a test of the connector and fiber end-face

Launching a
test of the
connector and
fiber end-face
48
If you are in Freeze mode, or in Mosaic mode, with a picture selected
(see "Mosaic Mode" on page
live camera picture.
Use the focus control to adjust the focus of the image
Once the display is correctly adjusted (magnification, sharpness...), a
test of fiber connector can be launched.
To launch the test:
1 Press Test key to launch the test of plugged fiber connector.
The test is completed:
– once the Led Testing is no more lit in red
– once the icon
– once a screen as the following one displays:
NOTE
To configure the Pass/Fail criteria, refer to
page 43.

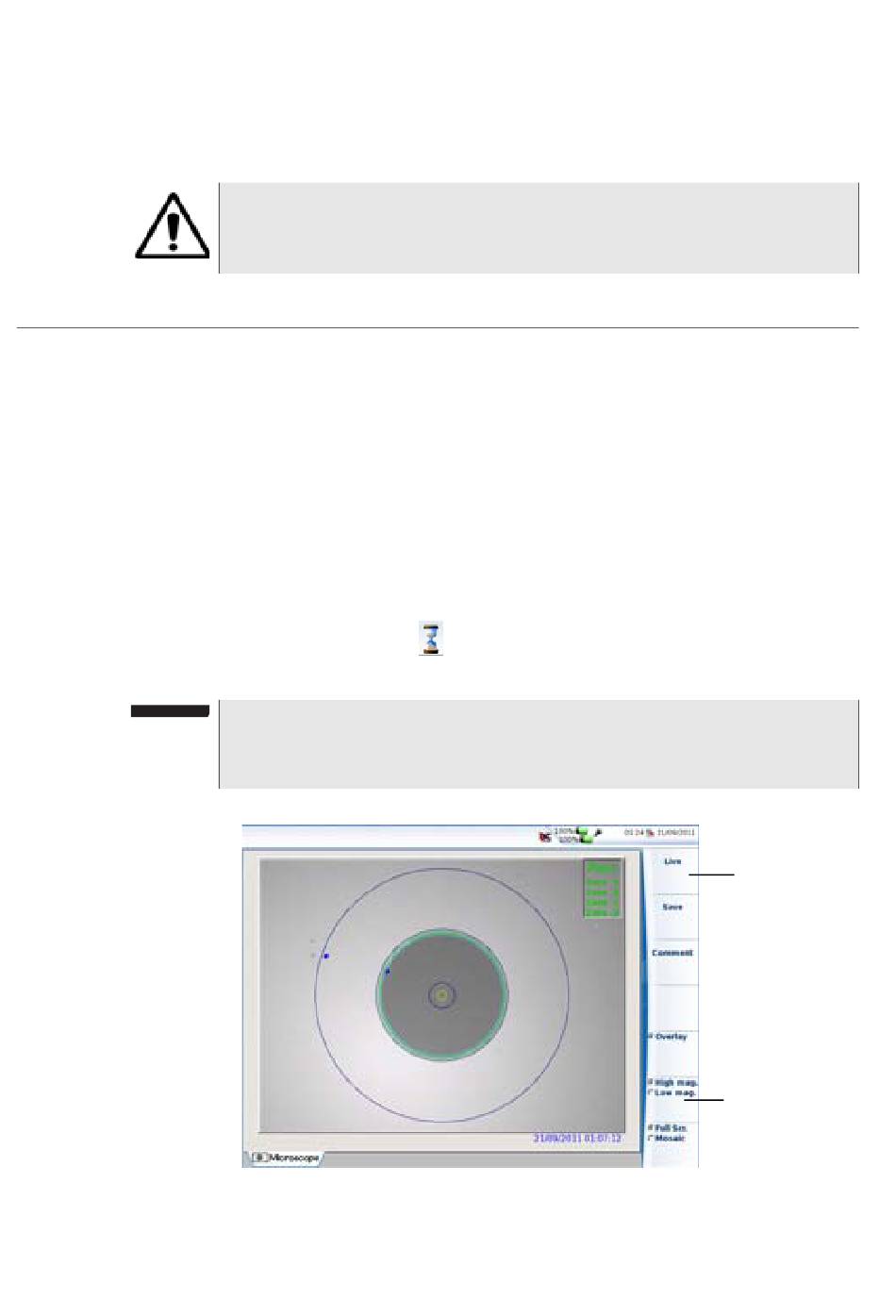

Fig. 27 Test results
User Manual 78100000202 Rev. 003
49), press Camera menu key to return to
is no more displayed on the upper banner
"Configuring the Scope" on
Summary of
Test results
Test result in
High mag.
