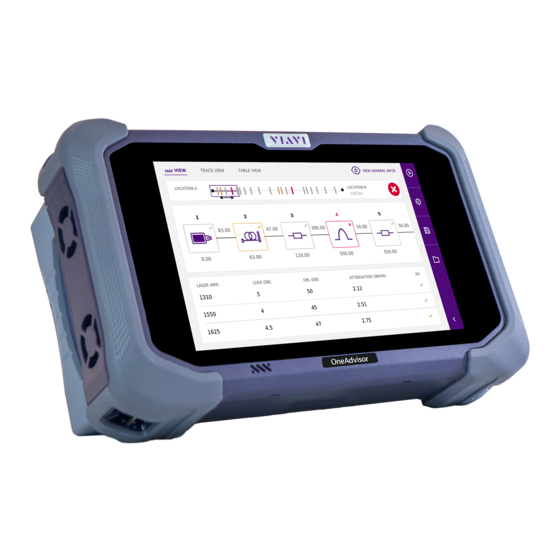

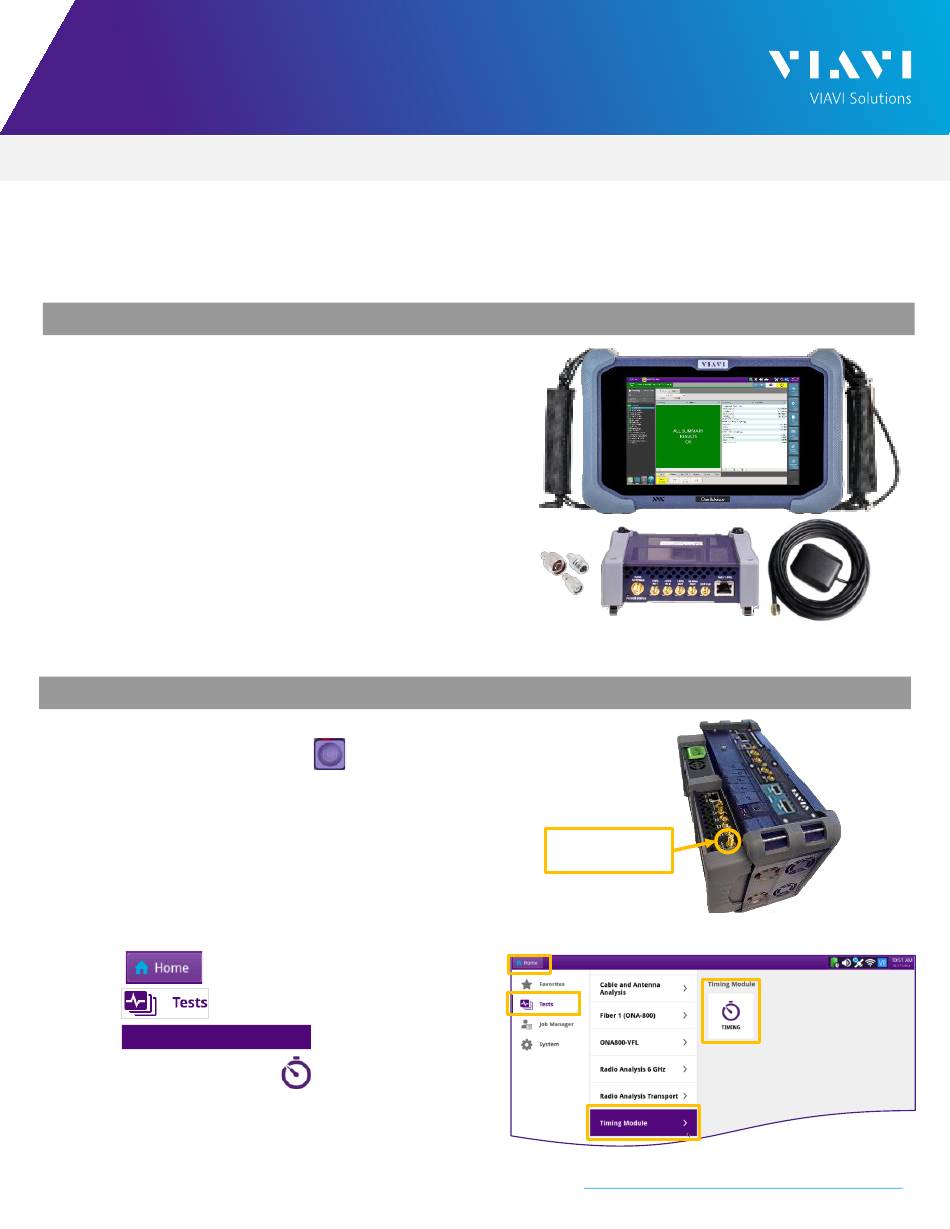

OneAdvisor 800 Platform
QUICK CARD
Measuring the Time Delay of a Satellite Antenna and Cable System
This quick card outlines how to approximate the time delay from a satellite antenna and
cable system to an Edge Grand Master (EGM) or router operating as an EGM.
E Q U I P M E N T R E Q U I R E M E N T S
•
OneAdvisor 800 equipped with the following:
RAxxMA-O Radio Analysis Module or
o
SPA06MA-O Spectrum Analyzer Module.
Transport software release V5.1.0 or
o
greater
•
Timing Expansion Module V2 (TEM V2)
•
GNSS Antenna (Taoglas A.171,
Taoglas AA.162, Tallysman TW7882,
or Maxtena M9706CWT recommended)
•
SMA Male Adapter to adapt to the connector
type on the antenna system under test.
C O N N E C T G N S S A N T E N N A A N D A C T I VAT E T E M V 2
1.
Press the Power button
OneAdvisor.
2.
Connect the antenna cable system under
test to the female SMA connector on the
TEM V2 (labeled Antenna).
3.
Tighten the connector until the antenna is
securely attached.
4.
Tap
to display the Home Screen.
5.
Tap
to display the Tests menu.
6.
Tap
Timing Module >
7.
Tap the Timing icon
TEM V2 Timing Module.
OneAdvisor 800 Platform
to turn on the
.
to activate the
VIAVI//Public
Figure 1: Equipment Requirements
TEM V2 GNSS
Antenna
Figure 2: TEM V2
Figure 3: Home Screen
https://www.viavisolutions.com/en-us/products/oneadvisor
