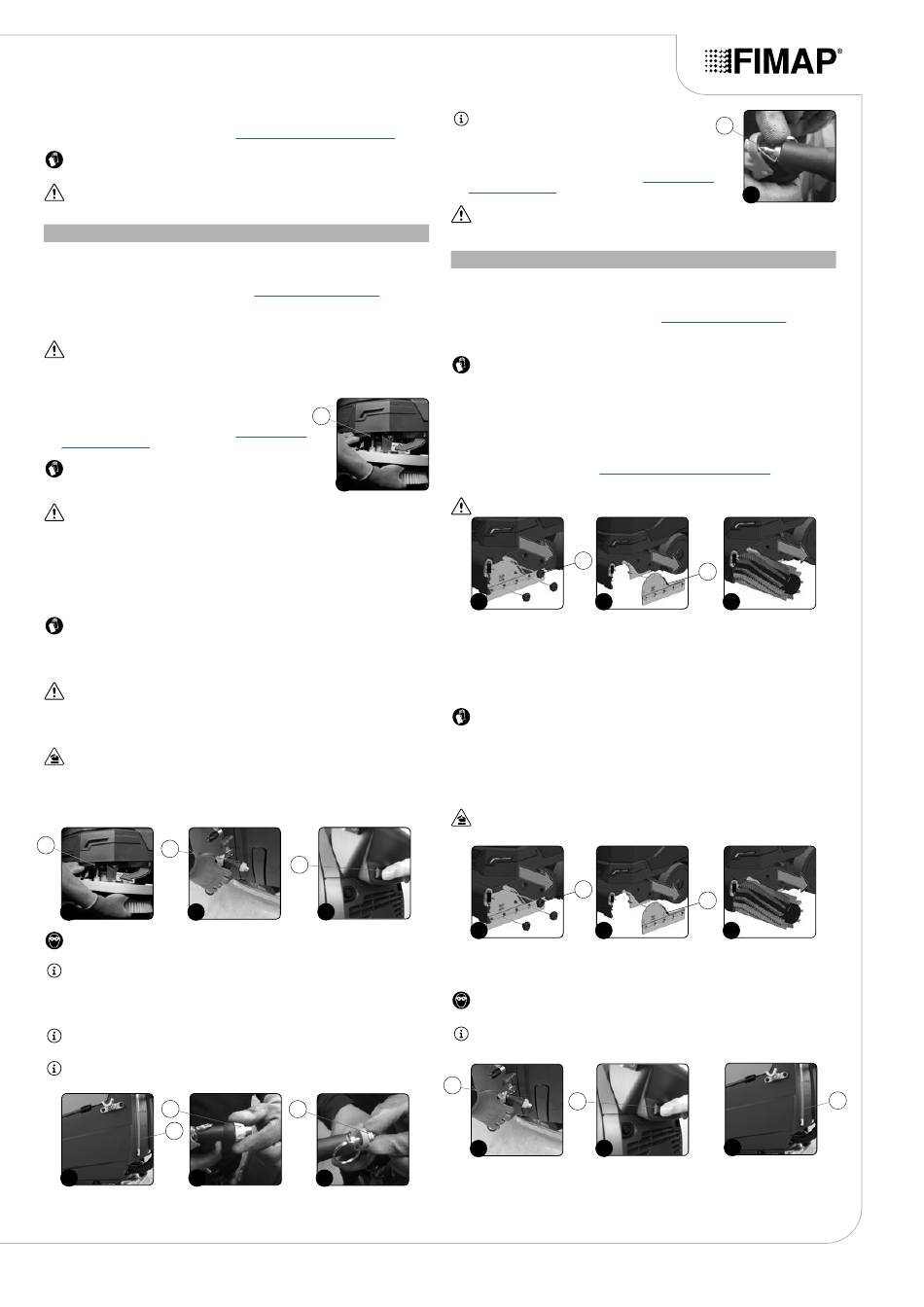

8. Clean the brush under running water to remove any impurities from its bristles. Check the bristles
are not worn; in the event of excessive wear, replace the brush (the bristles should be at least
10mm long). When replacing the brush, read
ATTENTION: these operations must be carried out using protective gloves to avoid any
possible contact with the edges or tips of metal objects.
ATTENTION: the place designated for this operation must comply with current environmental
protection regulations.

CLEANING THE BRUSH HEAD BRUSH (60BT VERSIONS)

Careful cleaning of the brush guarantees better cleaning of the floor, as well as a longer brush head
gearmotor lifespan. To clean the brush, proceed as follows:
1. Take the machine to the maintenance area.
2. Make sure the machine is in a safe condition (see
front of the machine.
3. Press the brush-holder plate retainer (1) and simultaneously rotate the brush in the direction
shown in the image (Fig. 1).
ATTENTION: Fig. 1 shows the rotation direction of the left-hand brush.
4. When brush rotation is prevented, turn until the button on the brush is disengaged from the
coupling spring on the brush-holder plate.
5. Repeat the same operation for the right-hand brush.
6. Clean the brush under running water to remove any impurities
from its bristles. Check the bristles are not worn; in the event of
excessive wear, replace the brush (the bristles should be at least
10mm long). When replacing the brush, read
BRUSH HEAD BRUSH".
ATTENTION: these operations must be carried out using
protective gloves to avoid any possible contact with the edges
or tips of metal objects.
ATTENTION: the place designated for this operation must
comply with current environmental protection regulations.
Careful cleaning of the brush guarantees better cleaning of the floor, as well as a longer brush head
gearmotor lifespan. To clean the brush (with the optional spray gun kit), proceed as follows:
1. Take the machine to the maintenance area.
2. Using the DS selector on the control display, select the "transfer" program".
3. Go to the front of the machine.
ATTENTION: these operations must be carried out using protective gloves to avoid any
possible contact with the edges or tips of metal objects.
4. Press the brush-holder plate retainer (1) and simultaneously rotate the brush in the direction
shown in the image (Fig. 1).
ATTENTION: Fig. 1 shows the rotation direction of the left-hand brush.
5. When brush rotation is prevented, turn until the button on the brush is disengaged from the
coupling spring on the brush-holder plate.
6. Repeat the same operation for the right-hand brush.
CAUTION: users are advised to always wear protective gloves, to avoid the risk of serious
injury to hands.
7. Release the tank cleaning accessory (2) (at the back of the machine) from the retainers (Fig. 2).
8. Activate the optional tank cleaning kit ON/OFF pump by pressing the button (3) on the back of
the machine (Fig. 3).
1
2
2
1
CAUTION: when using the optional tank cleaning kit, you are advised to always wear goggles
to avoid any risk of serious injury to your eyes.
N.B.: before activating the optional tank cleaning kit, check the level indicator (4) to see how
much solution there is in the recovery tank (Fig. 4).
9. Activate the solution jet by pressing the lever in the tank cleaning accessory. Make sure the jet is
pointing into the tank before pressing the lever.
NB: to adjust the solution jet from the tank cleaning accessory, turn the knob (5) on the
accessory itself (Fig. 5).
N.B.: to adjust the intensity of the solution jet from the tank cleaning accessory, turn the knob
(6) on the accessory itself (Fig. 6).
5
4
4 5
"REPLACING THE BRUSH HEAD BRUSH".
"MACHINE SAFETY MEASURES"). Go to the
1
"REPLACING THE
1
3
3
6
6
N.B.: to stop the solution jet, use the lever (7) on the tank
cleaning accessory (Fig. 7).
10. Clean the brush under running water to remove any impurities
from its bristles. Check the bristles are not worn; in the event of
excessive wear, replace the brush (the bristles should be at least
10mm long). When replacing the brush, read
BRUSH HEAD BRUSH".
ATTENTION: the place designated for this operation must
comply with current environmental protection regulations.

CLEANING THE BRUSH HEAD BRUSH (50BT VERSIONS)

Careful cleaning of the brush guarantees better cleaning of the floor, as well as a longer brush head
gearmotor lifespan. To clean the brush, proceed as follows:
1. Take the machine to the maintenance area.
2. Make sure the machine is in a safe condition (see
front of the machine.
3. Go to the front left-hand side of the machine.
ATTENTION: these operations must be carried out using protective gloves to avoid any
possible contact with the edges or tips of metal objects.
4. With the brush head raised from the floor, turn the knobs (1) that hold the left lateral carter (2) in
place anti-clockwise (Fig. 1).
5. Remove the left lateral carter (2) (Fig. 2).
Extract the brush from the tunnel (Fig. 3).
6.
7. Repeat the previously described operations for the right-hand side as well.
8. Clean the brush under running water to remove any impurities from its bristles. Check the bristles
are not worn; in the event of excessive wear, replace the brush (the bristles should be at least
10mm long). Read the paragraph "REPLACING THE CYLINDRICAL
to replace the brush.
ATTENTION: Every time it is remove, swap the front brush with the rear brush, and vice versa.
1
1 2
Careful cleaning of the brush guarantees better cleaning of the floor, as well as a longer brush head
gearmotor lifespan. To clean the brush (with the optional spray gun kit), proceed as follows:
1. Take the machine to the maintenance area.
2. Using the DS selector on the control display, select the "transfer" program".
3. Go to the front left-hand side of the machine.
ATTENTION: these operations must be carried out using protective gloves to avoid any
possible contact with the edges or tips of metal objects.
4. With the brush head raised from the floor, turn the knobs (1) that hold the left lateral carter (2) in
place anti-clockwise (Fig. 1).
5. Remove the left lateral carter (2) (Fig. 2).
6. Extract the brush from the tunnel (Fig. 3).
7. Repeat the previously described operations for the right-hand side as well.
CAUTION: users are advised to always wear protective gloves, to avoid the risk of serious
injury to hands.
1
1 2
8. Release the tank cleaning accessory (3) (at the back of the machine) from the retainers (Fig. 4).
9. Activate the optional tank cleaning kit ON/OFF pump by pressing the button (4) on the back of
the machine (Fig. 5).
CAUTION: when using the optional tank cleaning kit, you are advised to always wear goggles
to avoid any risk of serious injury to your eyes.
NB: before activating the optional tank cleaning kit, check the level indicator (5) to see how
much solution there is in the recovery tank (Fig. 6).
3
4
5
4
25
7
"REPLACING THE
7
"MACHINE SAFETY MEASURES"). Go to the
BRUSHES" for info on how
2
3
2
3
6
5
