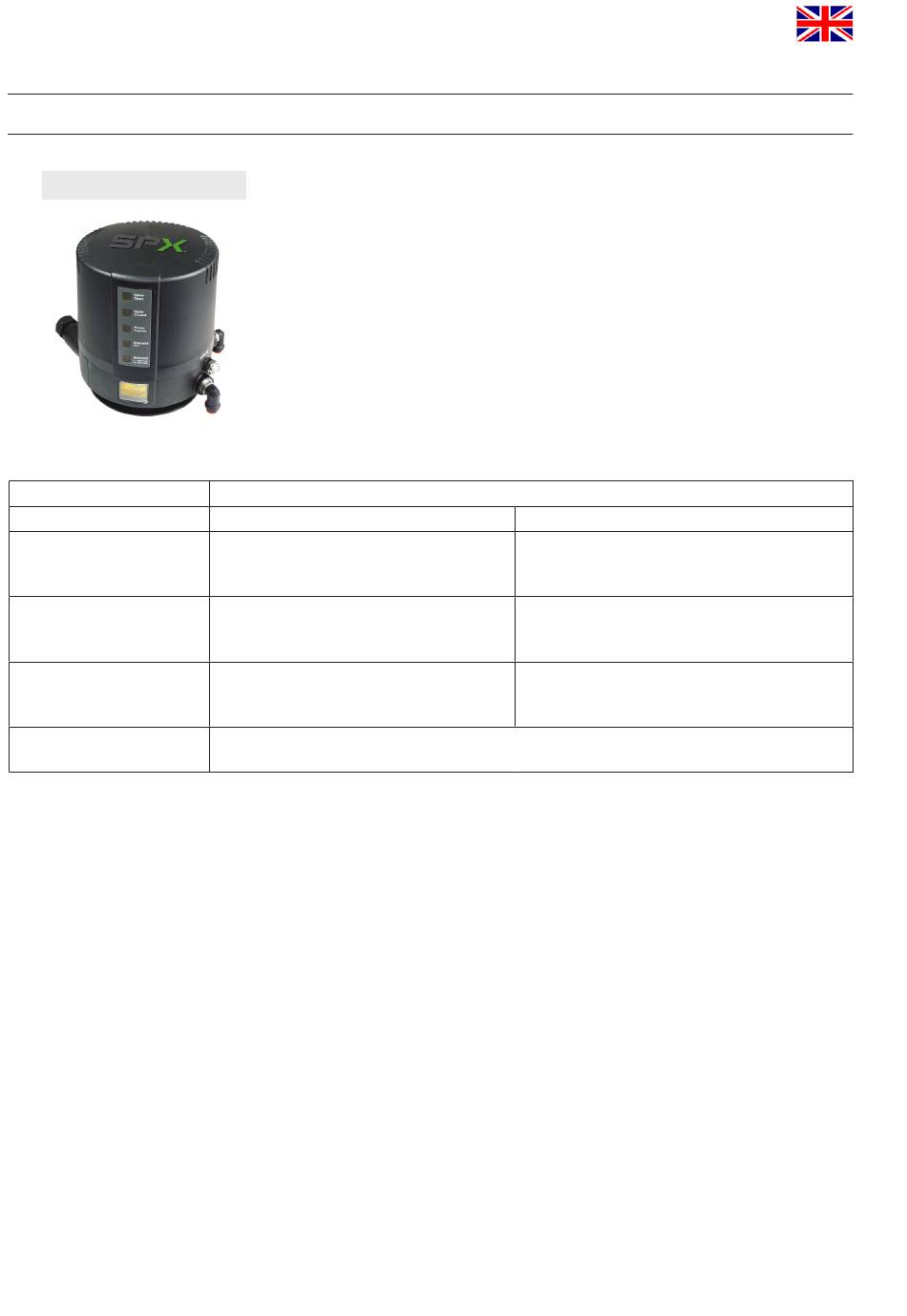

CU4 control unit
Ø Air connection
Direct Connect
reference number
AS-interface
reference number
AS-interface standard
reference number
Adapter
10
5.

Control Units / Valve Position Indication

5.1.

Control unit and adapter

An adapter is required to assemble the control unit on the DA4
valve.
The following different designs are available:
6 mm
CU43 - D4 - Direct Connect
H336955
000 08-45-381/93
CU43 - D4 - AS-i Extended
H336957
000 08-45-383/93
CU43 - D4 - AS-i Standard
H338152
000 08-45-385/93
000 08-46-646/93; H337098
5.2.

Valve position indication

Proximity switches to signal the closed and open position of the
DA4 valve can be installed at the proximity switch holder.
We recommend using one of these standard types:
three-wire proximity switch
operating distance: 5 mm
diameter:
operating voltage:
pnp pulse-shifting, closing function
"non-flush" installation
Recommendation:
Proximity switch 24V DC, PNP, 11 mm DIA. (5 m cable): H16223
Proximity switch 24V DC, PNP, 11 mm DIA. (cable box): H16432
If the customer decides to use valve position indicators other than
those listed above, SPX FLOW cannot assume any liability for the
functionality of the valve.
Designation
CU43 - D4 - Direct Connect 1/4"OD
000 08-45-431/93
CU43 - D4 - AS-i Extended 1/4"OD
000 08-45-433/93
CU43 - D4 - AS-i Standard 1/4"OD
000 08-45-435/93
CU4 adapter D4
11 mm
10–30 V DC
UK
1/4" OD
H336960
H336962
H338153
